Other Robots Nachi Forte SC700 SC700DL

Awaiting more stock

Year 2006. One of the biggest 6 axis robots in the world. Large working envelope, near to 4 meters and 700 kg payload. Equipped with the modern AX controller.

MAIN FEATURES

700 kg Payload

One of the heaviest payloads in the industry designed to be used to transfer large and heavy parts.

Large Range Motion

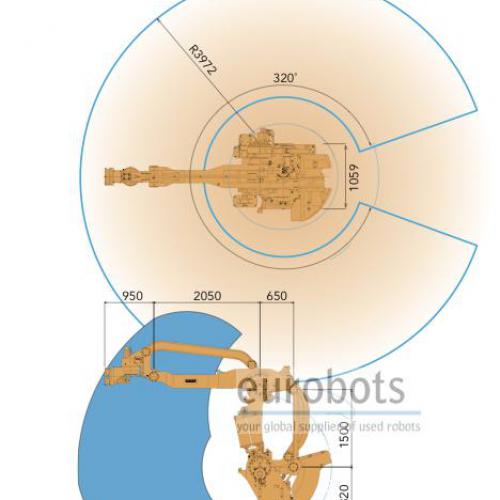

  • 4.8 meters vertical stroke, 7.0 meters horizontal stroke (diameter)
  • The extended vertical stroke allow for flexibility in the transfer line design and layout
  • A perfect replacement option for the traditional dedicated transfer or elevator equipment

Powerful wrist

  • Large wrist torque for holding large tasks with fork hand from side

High Safety

  • In-Line Link Mechanism between 3rd and 4th axes.
  • Increase arm stability during transfer or incline moves with heavy payloads

-


Applications

Handling of parts , Palletising

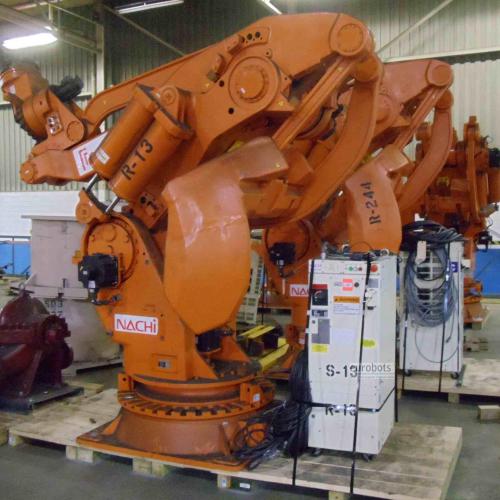

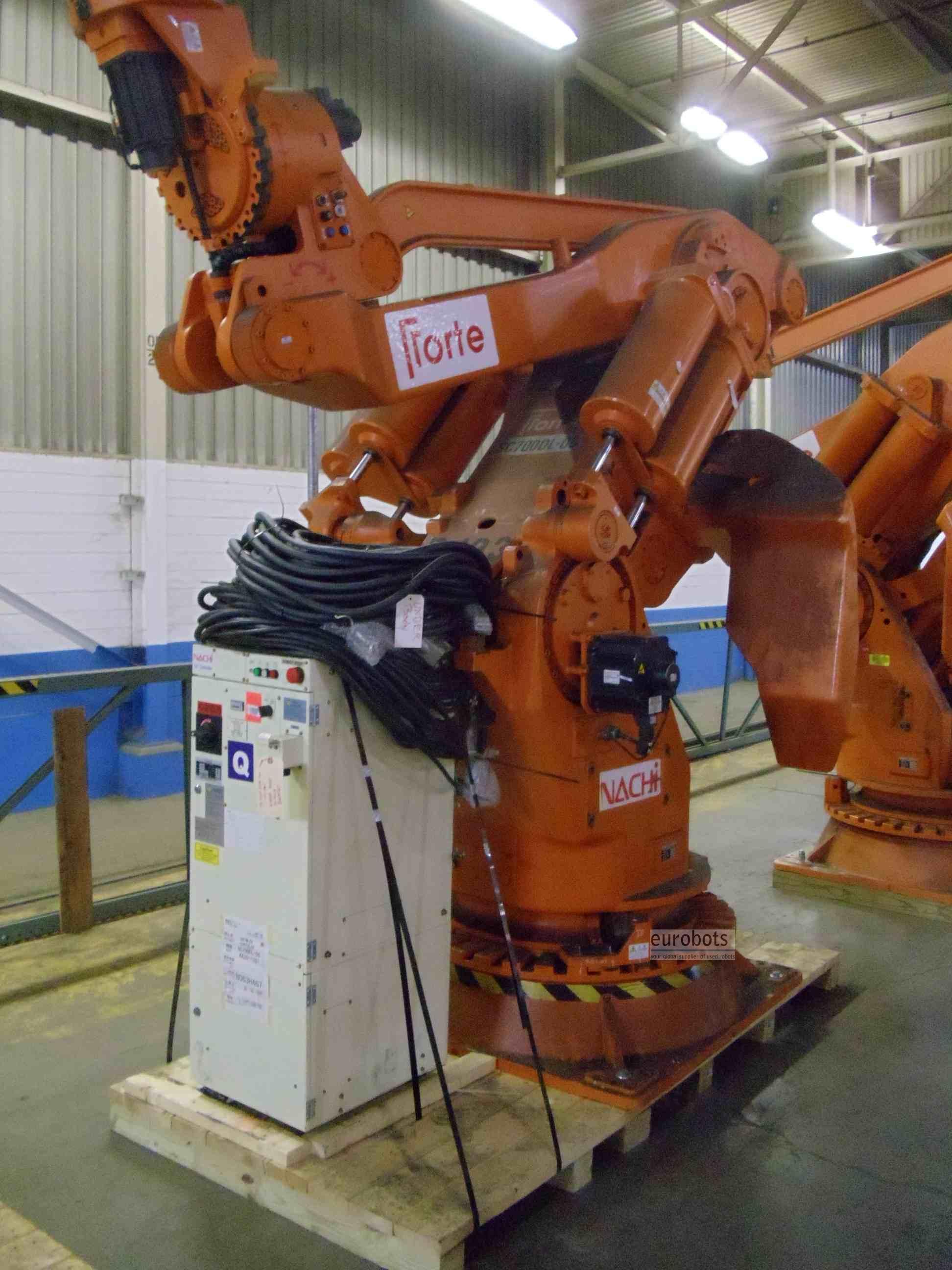

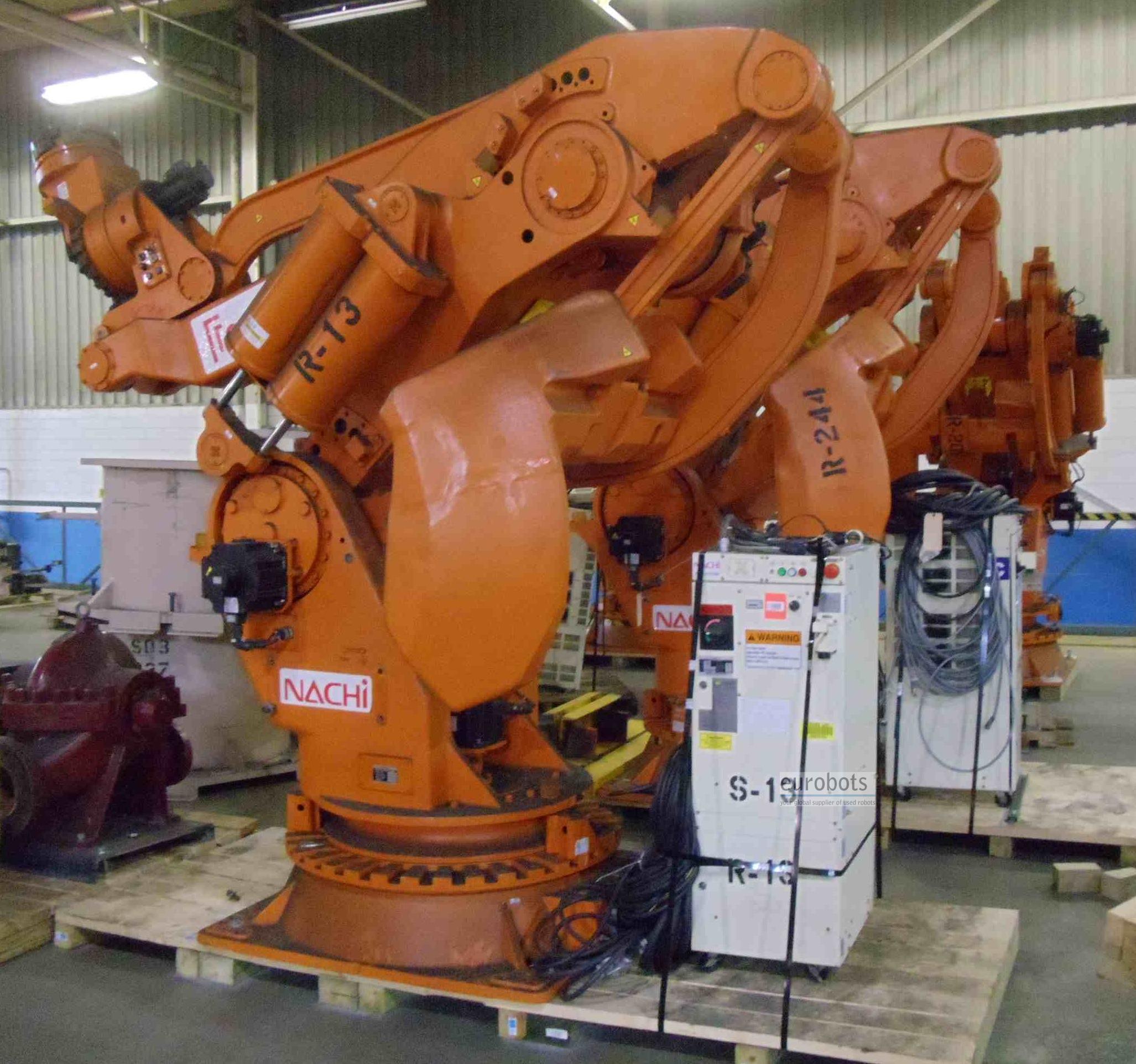

Pictures

Videos

Diagrams
