Dobot magician lite educational

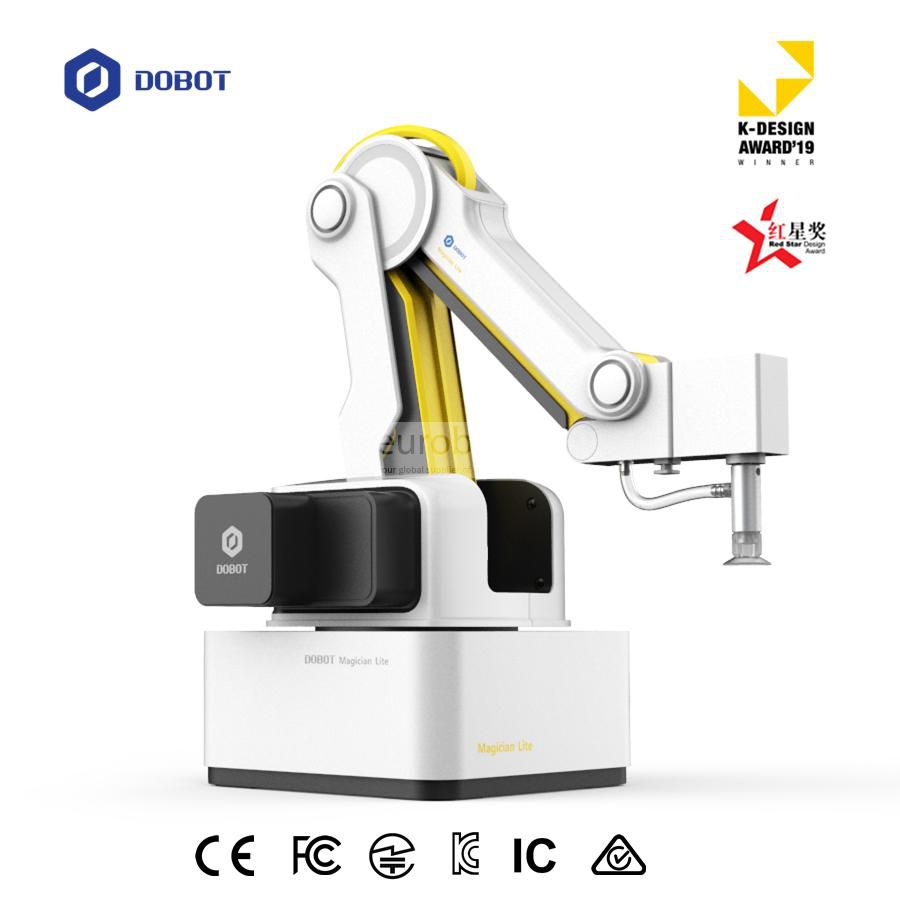

The Magician Lite is a lightweight and intelligent robotic arm designed specifically for K12 education. It offers students a wide range of possibilities for interaction, utilizing software, hardware, and expansion interfaces to unleash their creativity. By engaging in the process of building and playing with the Magician Lite, students gain hands-on experience and knowledge about AI and robotics. They are introduced to the fascinating world of robotics and learn how robots can be applied in real-world scenarios.

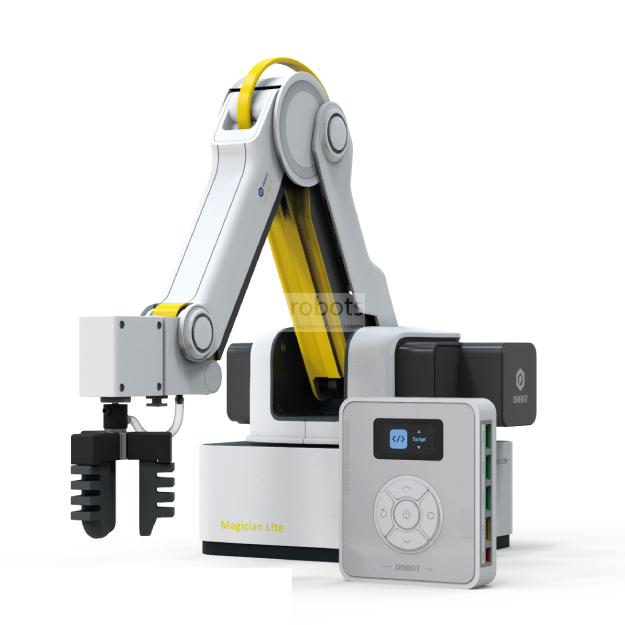

The Magic Box serves as the external control unit for the Magician Lite, responsible for handling programming tasks. It boasts 12 communication interfaces, supports Bluetooth connectivity, and is compatible with various accessories, enhancing the versatility of the robotic arm.

Comprehensive robotics courses are available for students, structured in a chapter-by-chapter format to facilitate their learning journey. These courses introduce programming and robotic skills to young learners, equipping them with essential knowledge for future success. Additionally, optional kits such as drawing, industrial 4.0, AI vision, and sensor kits are available, providing students with further opportunities for creativity and exploration.

The Magician incorporates drag-to-teach programming feature and offers multiple programming options, including a graphical interface for intuitive operation, graphical block programming (like scratch), scripting using programming languages like LUA, and compatibility with various APIs such as C, C#, Python, Kotlin, and more, making it accessible for users of all skill levels to learn and master the operation of the robot.

DOBOT Magician Lite
Degree of Freedom 4
Maximum Load 250 g
Max Reach 340 mm
Repeatability ±0.2 mm
Voltage 100V - 240V AC,50/60 Hz
Power Input 12V ~ 5A DC
Working Environment -5° ~ 45° C
Power 60W Max
Communication USB Virtual Serial Port / Serial Port
Software DobotStudio/DobotLab
Weight 2.4 KG
Rear Arm / Forearm 150 mm
Base Size 146 mm x 146 mm

Axis Motion
Axis 1- Base -135° to +135°
Axis 2- Rear Arm -5° to +80°
Axis 3- Fore Arm -10° to +85°
Axis 4- End Tools -145° to +145°
J1-J3 Max speed 300°/s
J4 Max speed 200°/s
Magic Box
MCU ARM 32-bit Cortex-M4
Main Frequency 168 MHz
Voltage 100V - 240V AC,50/60 Hz
Power Input 12V ~ 5A DC
Working Environment -5° ~ 45° C
Power 60W Max
Communication USB Virtual Serial Port/Serial Port/Bluetooth
Programming Language MicroPython
Software DobotStudio/DobotLab
Weight 98 g
Size 95 mm x 80 mm x 21.5 mm


End Tools
Pen Holder Pen Diameter: 8-12 mm
Suction Cup Built-in air pump drive works under negative pressure, with suction cup diameter of 10mm, 20mm
Soft Built-in air pump drive works under positive and negative pressure, with maximum opening and closing
Gripper distance of 50 mm

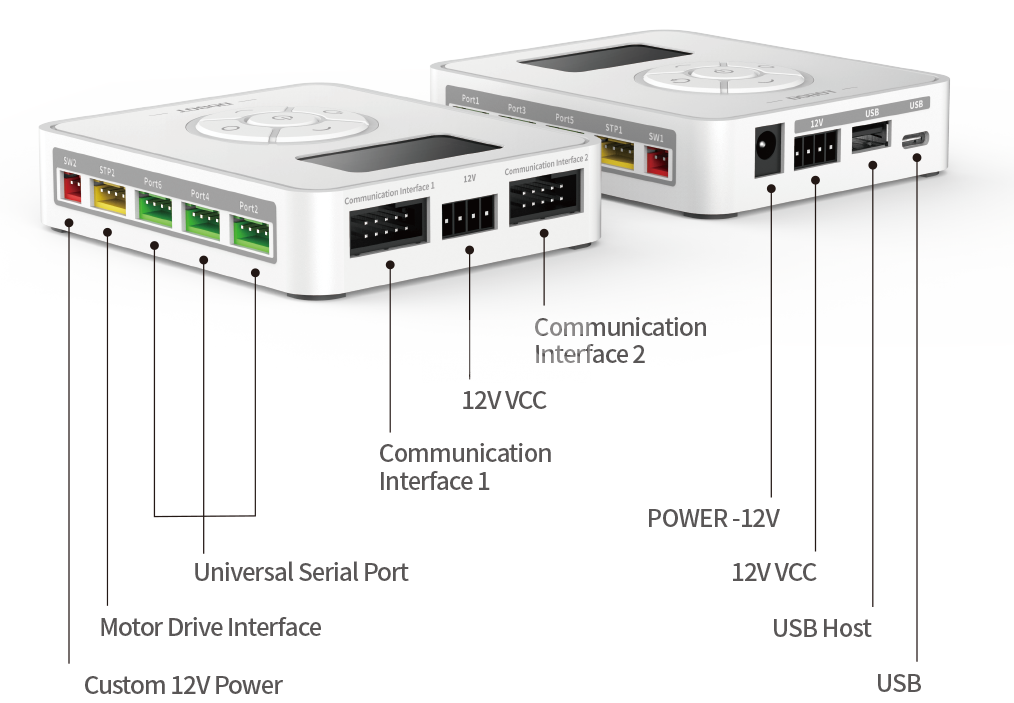

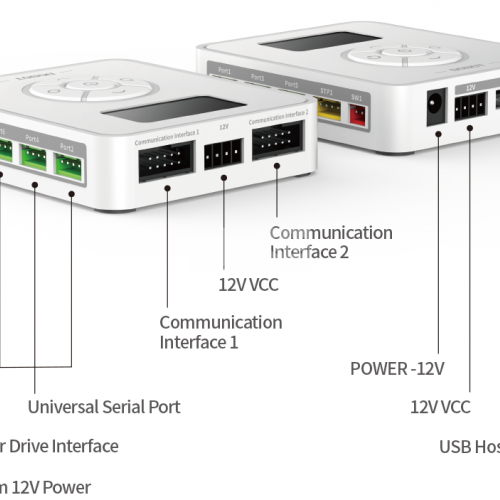

Expansion Interface
Power Interface  2   4PIN, 12V~3A DC
Multi-Functional Communication Interface  2   10PIN, Serial Communication Interface
I/O Interface  6   Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc
Stepper Motor Interface  2  Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V 1A
12V Power Interface  2   Red Terminal, 2PIN, 12V, 3A Max
AI Camera Kit
Dimensions 50mm*44mm*25mm
CMOS 1/4inch
Image pixels 1M
Image Format YUV/MJPG
Data Format 240*320. 640*480. 1280*720
Maximum Image Transfer Rate 1280*720@30fps
Camera Control Saturation,Contrast, Acutance
White balance Auto
Exposure Auto
Working Temperature 0℃ to +50℃
Operating voltage DC 5V
Interface USB2.0
Voice input Integrated microphone
Feature All-in-one design, integrated microphone, distortion-free lens
Camera working angle 0°-135°
Function Face recognition, image recognition, OCR text recognition, speech recognition, etc.
