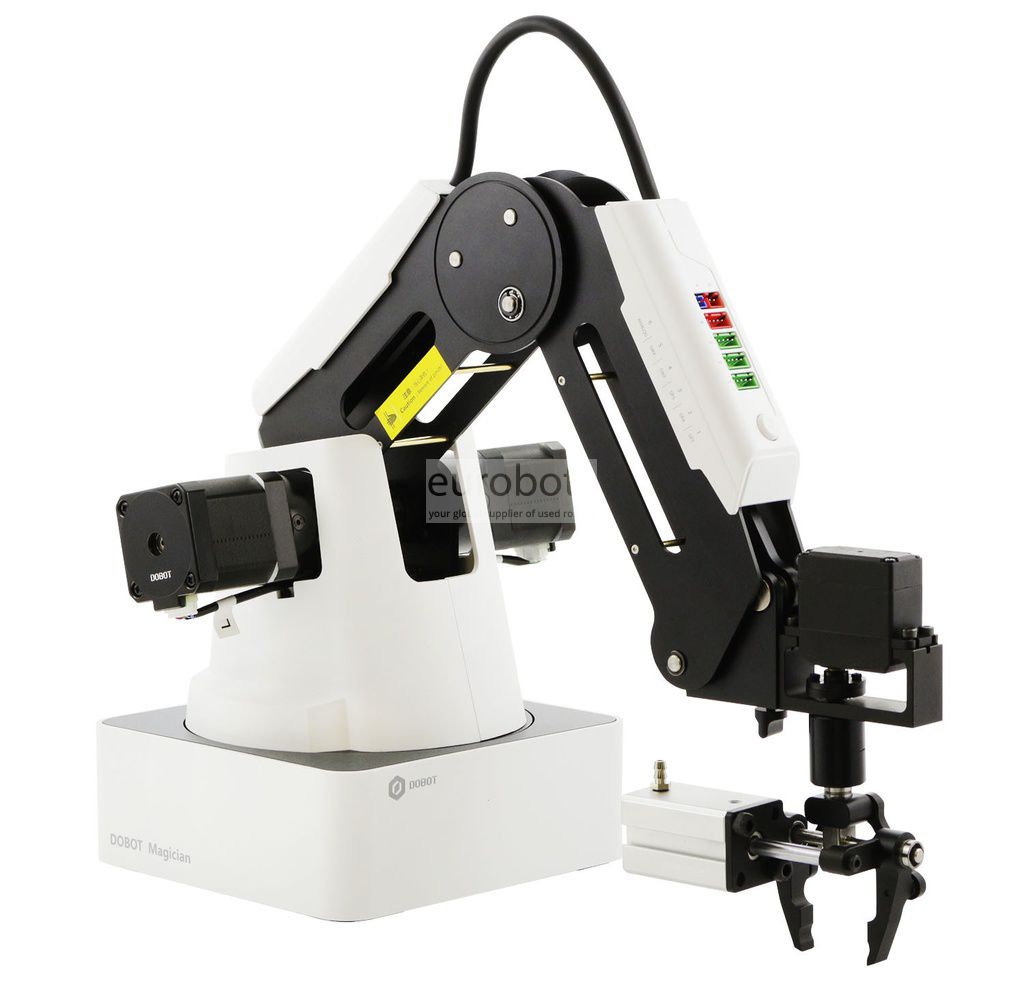

Dobot magician educational

The Magician stands as a groundbreaking desktop-grade 4-axis robot, marking a significant milestone in its category. Its capabilities span a wide spectrum of tasks, ranging from 3D printing and laser engraving to calligraphy and drawing. With the inclusion of 13 interface ports, the Magician facilitates secondary development, lab projects, and robotics curricula, ensuring ample support for educational endeavors.

The Magician serves as an excellent platform to teach diverse subjects, including robotic systems, the DH convention, control of robot movement, and robot programming, catering to students of varying proficiency levels. Through the utilization of programming software and hardware accessories, users can craft a multitude of application scenarios, fostering hands-on exploration and problem-solving.

Catering to the needs of students and consumers alike, the Magician boasts exceptional portability without compromising its ability to tackle a myriad of automation tasks. Users can effortlessly engage with the Magician through quick access command buttons or wireless interaction using portable computing devices, enhancing the overall user experience.

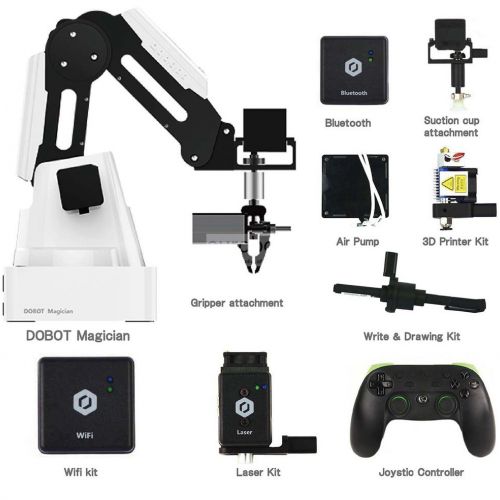

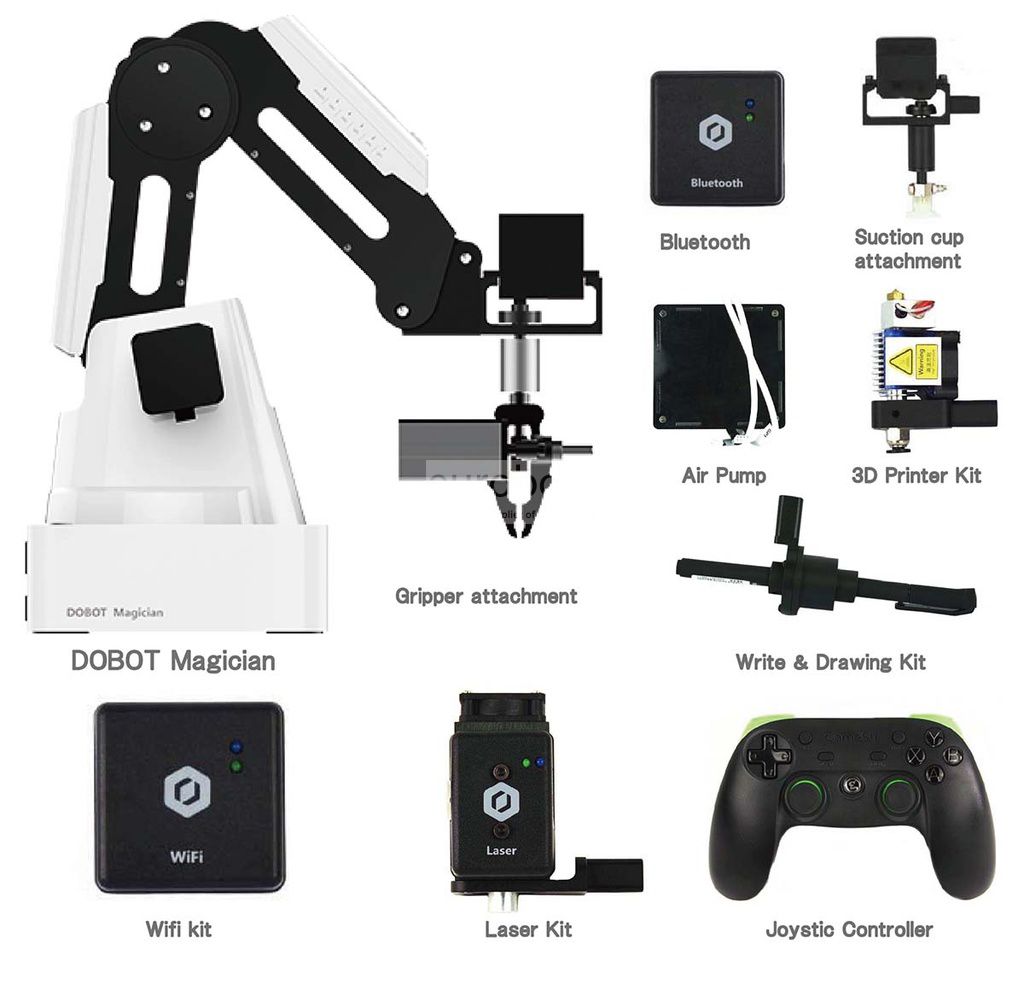

To augment its functionality, a wide array of accessories such as grippers, rails, conveyor belts, mobility modules, and vision modules are readily available, empowering the Magician to successfully accomplish a diverse range of tasks and projects.

Extensive robotics courses are offered, presenting a comprehensive and structured approach to learning. These courses are thoughtfully organized in a chapter-by-chapter format, facilitating a seamless learning journey. By immersing students in these courses, they gain a solid foundation in programming and robotic skills, setting them on a path towards future success. Furthermore, optional kits such as drawing, industrial 4.0, AI vision, and sensor kits provide additional avenues for creativity and exploration, encouraging students to push the boundaries of their knowledge.

With its drag-to-teach programming feature and support for multiple programming options, the Magician ensures accessibility for users of all skill levels. The inclusion of a user-friendly graphical interface, graphical block programming akin to Scratch, scripting capabilities using programming languages like LUA, and compatibility with various APIs such as C, C#, Python, Kotlin, and more, empowers users to learn and master the operation of the robot in a manner that suits their individual preferences and expertise.

Number of Axis 4
Payload 500 g
Max. Reach 320 mm
Repeatability ±0.2 mm
Communication USB / Wi-Fi* / Bluetooth*
Power Supply 100V - 240V, 50/60 HZ
Power In 12V / 6.5A DC
Consumption 78W Max
Working Temperature -10° - 60° C


Axis Movement
Axis Range Max Speed (250 g workload)
Joint 1 base -120° ~+120° 320° / s
Joint 2 rear arm -5°~+90° 320° / s
Joint 3 forearm -15°~+90° 320° / s
Joint 4 rotation servo -140°~+140° 480° / s


Net Weight 3.4 KG
Gross weight ( Standard Version) 7.2 KG
Gross weight ( Education Version) 8.0 KG
Base Dimension(Footprint) 158 mm × 158 mm
Materials Aluminum Alloy 6061, ABS Engineering Plastic
Controller Dobot Integrated Controller
Robot Mounting Desktop
Packing Size (L × W × H) 421 mm x 334 mm x 352 mm


Software DobotLab, DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor)
SDK ( Software Develop Kit ) Communication Protocol, Dobot Program Library
Extensible I/O Interfaces 1. I/O × 10 (Configurable as Analog Input or PWM Output)
2. Controllable 12V Power output × 4
3. Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included)
4. Stepper × 2


3D Printer Kit Maximum Print Size (L × W × H) 150 mm ×150 mm × 150 mm
3D printing material PLA
Resolution 0.1 mm
Laser * Power Consumption 500 mw
Type 405 nm ( Blue laser )
Power 12V , TTL trigger ( With PWM Driver )
Pen Holder Pen Diameter 10 mm
Vacuum Suction Cup Suction Cup Diameter 20 mm
Pressure -35 Kpa
Gripper Range 27.5 mm
Drive Type Pneumatic
Force 8 N
