Dobot magician E6 educational cobot

Awaiting more stock

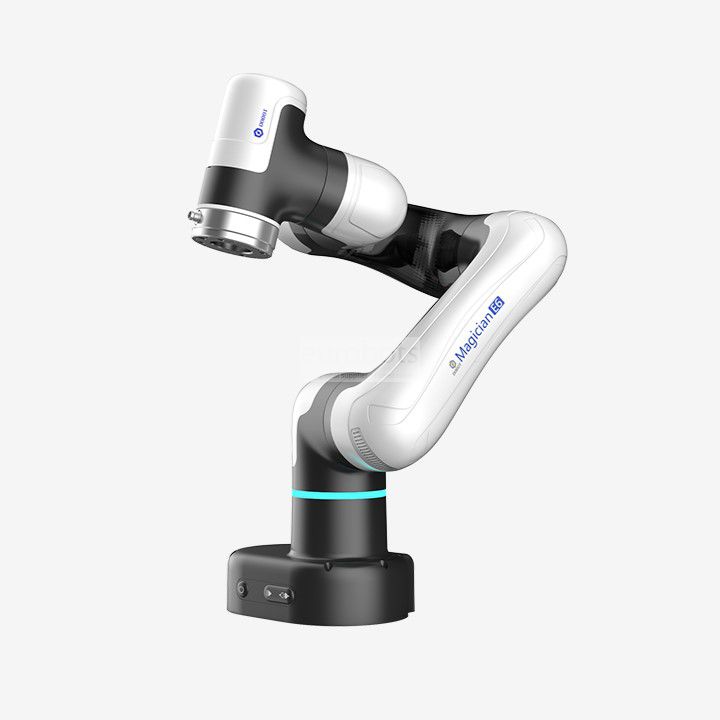

The DOBOT Magician E6 is a compact and versatile 6-axis cobot specifically designed for educational and scientific research purposes. With its industrial-grade performance, it provides a robust platform for learning and conducting experiments. The Magician E6 is compatible with a wide range of accessories intended for industrial use, allowing users to explore various automation scenarios with precision.

Featuring streamlined body design and collision detection, the Magician E6 prioritizes safety during operation. It is equipped with a convenient light indicator ring that provides easy monitoring of the robot's operating status, ensuring a seamless user experience.

With its compact and lightweight build, the Magician E6 can be effortlessly installed on a desk, making it suitable for classroom or research environments. The built-in control box simplifies external wiring, enabling a plug-and-play setup.

The Magician E6 incorporates proprietary trajectory replay technology, eliminating the need for coding with its drag-to-teach programming feature. It offers multiple programming options, including a graphical interface for intuitive operation, graphical block programming (like scratch), scripting using programming languages like LUA, and compatibility with various APIs such as C, C#, Python, Kotlin, and more, making it accessible for users of all skill levels to learn and master the operation of the robot.

With its comprehensive features and educational resources, the Magician E6 opens doors to new possibilities in robotics education. It serves as an ideal platform for exploring areas such as AI, smart manufacturing, and other fields of study, providing immersive learning experiences and fostering innovation.

Weight ≤7.2 kg
Number of Axes 6
Payload 500 g
Working Radius 450 mm
Repeatability ±0.1 mm
Maximum Speed of TCP 0.5 m/s
Range of Joints J1 ±360°
J2 ±135°
J3 ±154°
J4 ±160°
J5 ±173°
J6 ±360°
Maximum Joint Speed 120°/s
Power 100V~240V AC, 50/60 Hz
Rated Voltage 48V DC, 5A
Power Consumption 130W
I/O Interface Communication Interface Ethernet 2, for TCP/IP and Modbus TCP communication
I/O Interface Arm Tip DI x 2, DO x 2, 24V x 1, GND x 1
Base DI x 16, DO x 16, 24V x 4, GND x 4
I/O Power 24V, Max 2A, Max 0.5A for each channel
External Interface EMO x 1, ABZ encoder x 1, Power connector x 1
Control Software DobotStudio Pro
IP Rating IP20
Base Dimensions 162 mm x 120 mm x 103 mm
Working Environment Temperature: 0° to 40° C. Humidity: 25 to 85% noncondensing
Noise 60dB(A)
Installation Orientation Desktop
Materials Aluminum alloy, ABS plastic
