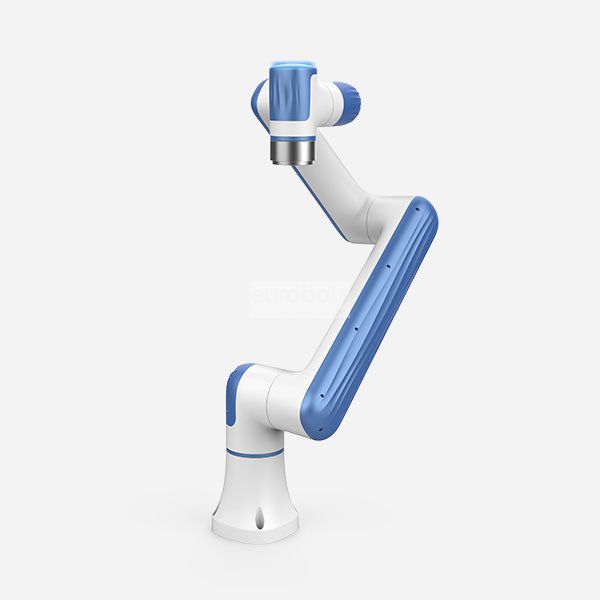

DOBOT NOVA 5 commercial cobot

The DOBOT Nova5 is a versatile and compact robotic arm specifically designed for retail and commercial purposes.

The Nova5 offers a payload capacity of 5 kg, making it suitable for a wide range of tasks that require precision. Whether it's assembly, pick and place, testing, or other intricate operations, the Nova5 delivers the necessary strength and dexterity.

With a maximum reach of 850 mm, the Nova5 provides ample workspace to handle objects and perform tasks effectively.

Programming and control of the Nova5 are made user-friendly through its intuitive interface. Users can choose from multiple programming options, including a graphical interface similar to Scratch, scripting using programming languages like LUA, or leveraging APIs in languages such as C, C#, Python, Kotlin, and more. Additionally, the robot can be manually taught by physically moving it, accommodating users with different levels of expertise.

The Nova5 is compatible with a variety of accessories and peripherals, allowing for easy customization and expansion of its capabilities. It seamlessly integrates into existing setups and workflows, enhancing productivity and efficiency.

Safety is a top priority for the Nova5, as it incorporates advanced features like collision detection and emergency stop capabilities. These safety measures ensure a secure working environment, protecting both the robot and the operators.

Weight 14 kg (30.9 lbs)
Maximum Payload 5 kg (11 lbs)
Working Radius 850 mm (33.5 in)
Maximum Speed of TCP 2 m/s (78.7 in/s)
Repeatability ±0.05 mm
Range of Motion J1 ± 360°
J2 ± 180°
J3 ± 160°
J4 ± 360°
J5 ± 360°
J6 ± 360°
Maximum Joint Speed J1/J2/J3 100 ° /s
J4/J5/J6 100 ° /s
End I/O DI/DO 2 inputs
RS485 Supported
IP Rating IP54
Noise 70 dB(A)
Temperature Range 0° to 50° C
Installation Orientation Any angle
Power Consumption Typical 230W
Maximum 770W
Cable Length from Robot to Controller 3 m (118.1 in)
Materials Aluminum alloy, acrylonitrile butadiene Styrene plastic


Dimensions 200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in)
Weight 1.3 kg (2.9 lbs)
Input Power 30~60V DC
IO Power 24V, Max 2A, Max 0.5A for each channel
IO Interface DI 8 inputs(NPN or PNP)
DO 8 inputs(NPN or PNP)
AI 2 inputs, voltage mode, 0~10V
AO 2 outputs, voltage mode, 0~10V
Remote Power On/Off Supported
Communication Interface Network Interface 2, for TCP/IP and Modbus TCP communication
USB 2, for connecting USB wireless module
485 Interface 1, for RS485 and Modbus RTU communication
Environment Temperature 0° to 50° C
Humidity ≤95%, non-condensation
IP Rating IP20
Cooling Mode Passive heat dissipation
Teaching Mode PC、APP(Android、iOS)
