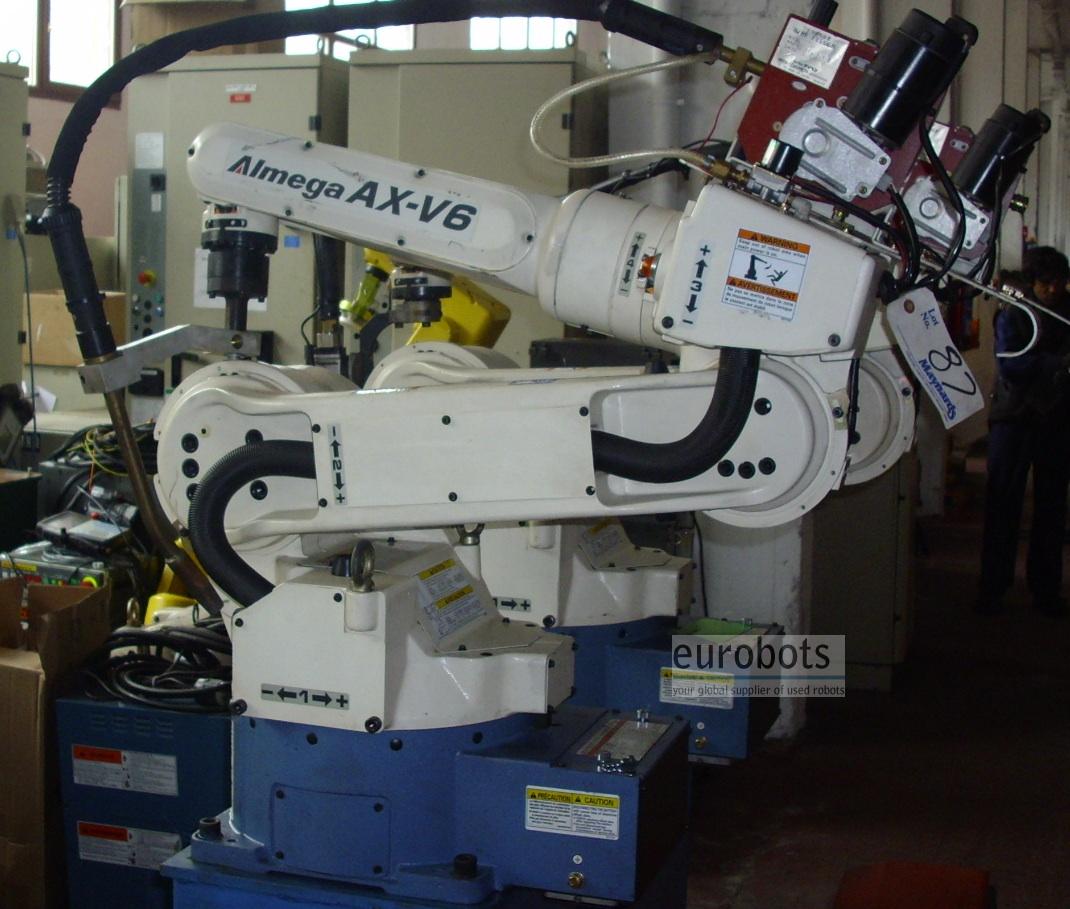

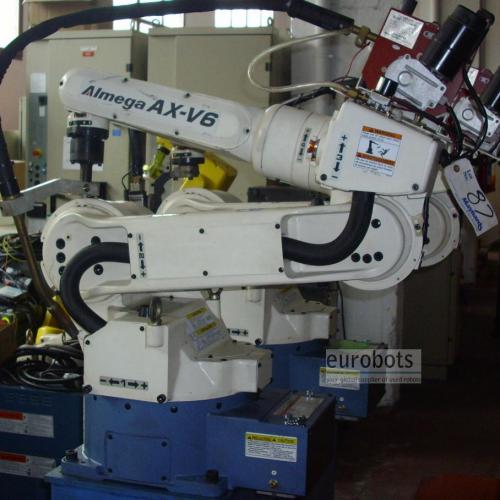

Other Robots OTC-Daihen ALMEGA AX-V6 arc welding robots

Awaiting more stock

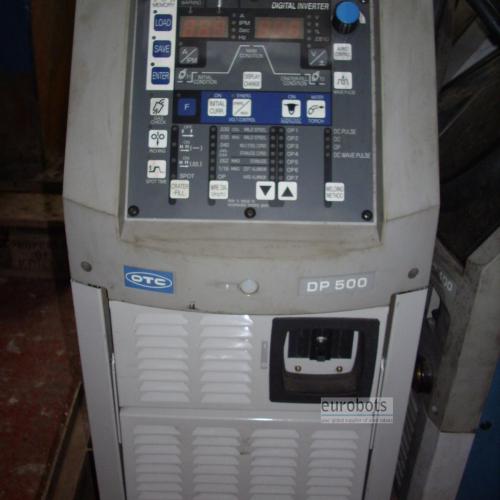

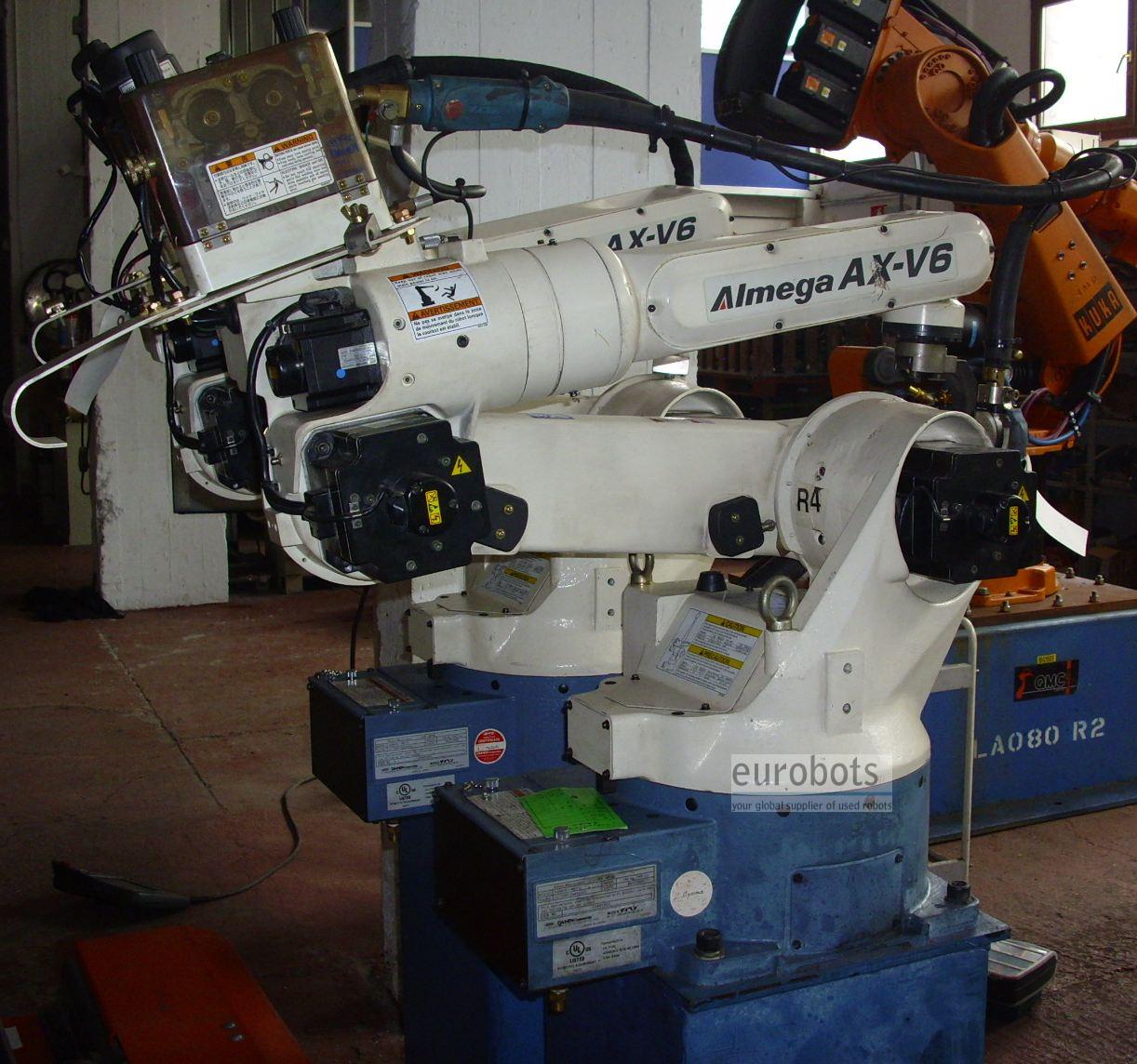

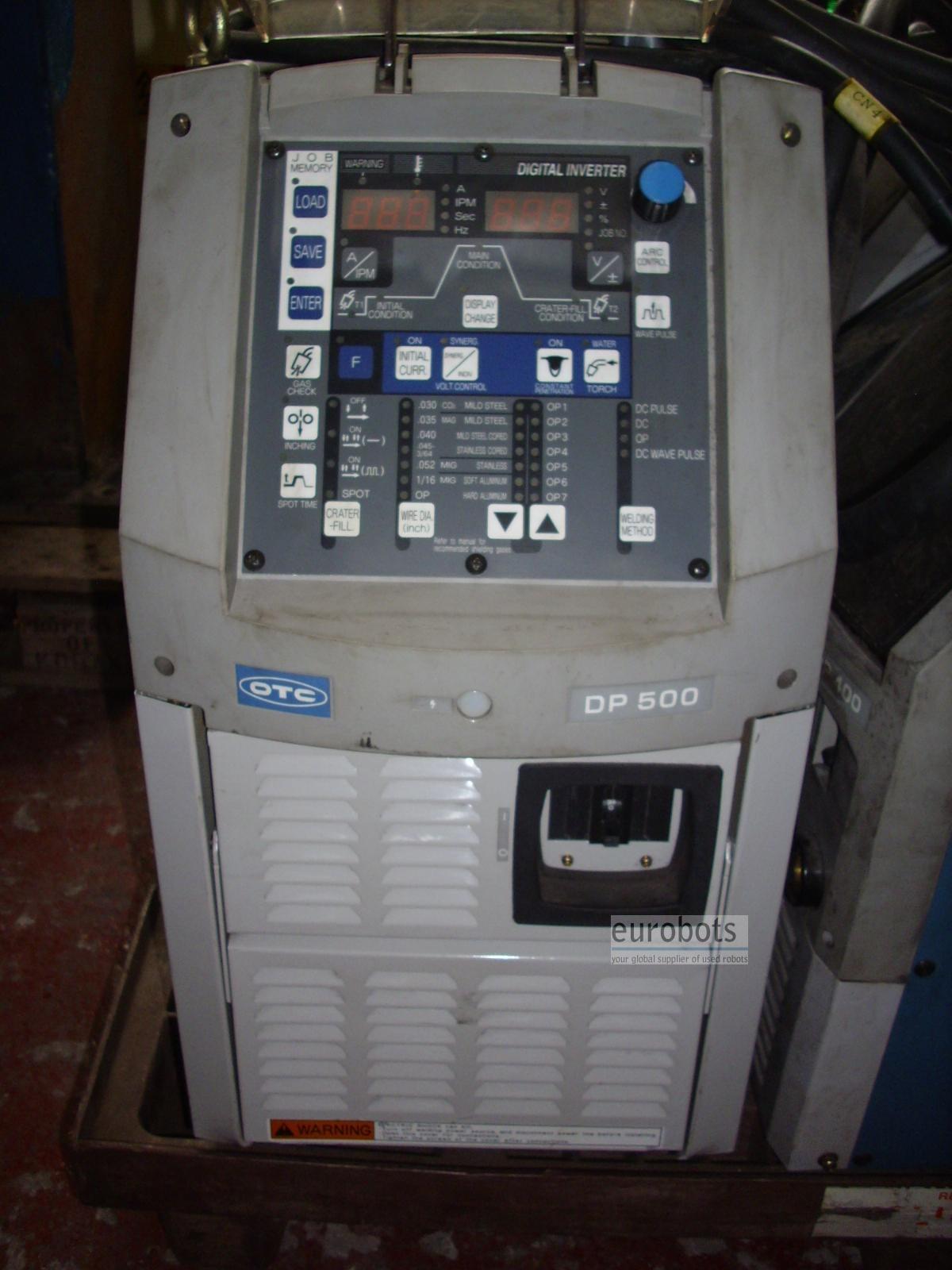

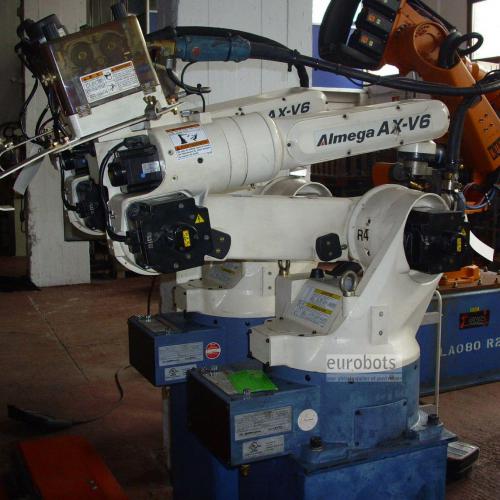

Year 2005. A 7th axis Servocontrolled turn table also available for this model. Equipped with the synergic MIG/MAG power welding source DP-500, 500 Amperes capacity.

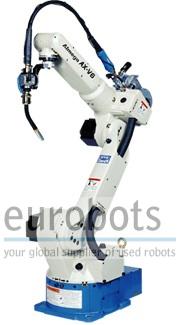

The AX-V6 is a high speed, smooth movement manipulator that shortens production time. It is designed for MIG/MAG Welding, TIG Welding, Tandem MAG Welding, Alumium MIG Welding, and Plasma Arc Cutting. With such features as a built-in shock sensor in the welding torch and enhanced system configuration ability, the AX-V6 is ideal for high speed arc welding applications.

Main features

* Faster, yet smoother motion - reduced cycle time by new servo control system with advanced acceleration method.
* Independently articulated arm - no link arm to impede articulation for a full range of motion.
* Vibration restraining control - virtually eliminates vibration even when stopping at maximum speed.

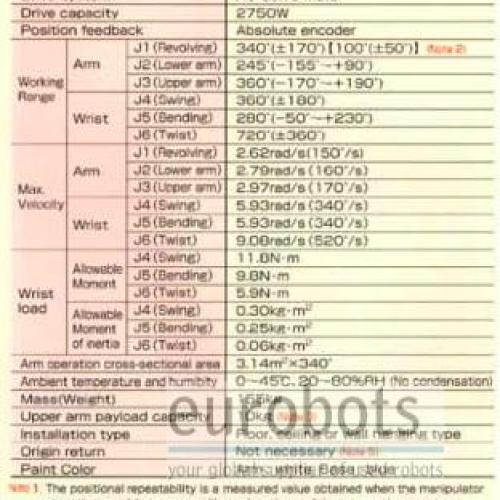

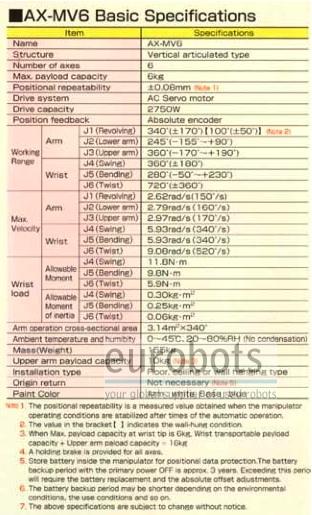

General specifications:

  • Number of axis: : 6
  • Payload: 6 kg

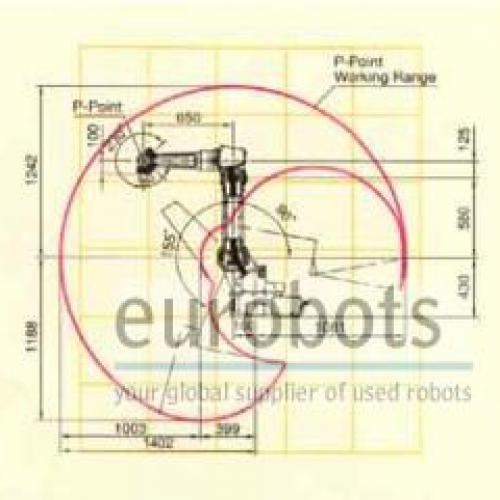

  • Horizontal arm reach: 1402 mm
  • Accuracy / repeatability: ±0.08 mm

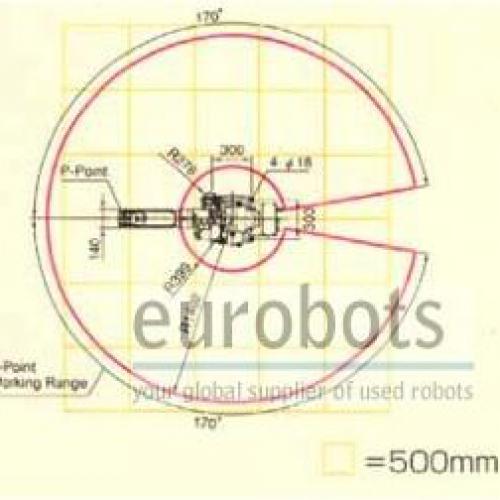

Axis data - motion range

  • Axis 1  ±170°
  • Axis 2  +155°, -90°
  • Axis 3  +190°, -170°
  • Axis 4  ±180°
  • Axis 5 +230°, -50°
  • Axis 6  ±360°

Robot axis Speed

  • Axis 1: 150 °/s
  • Axis 2 :150 °/s
  • Axis 3: 150 °/s
  • Axis 4:  340 °/s
  • Axis 5:  340 °/s
  • Axis 6:  520 °/s

Applications

Arc welding

Pictures

Videos

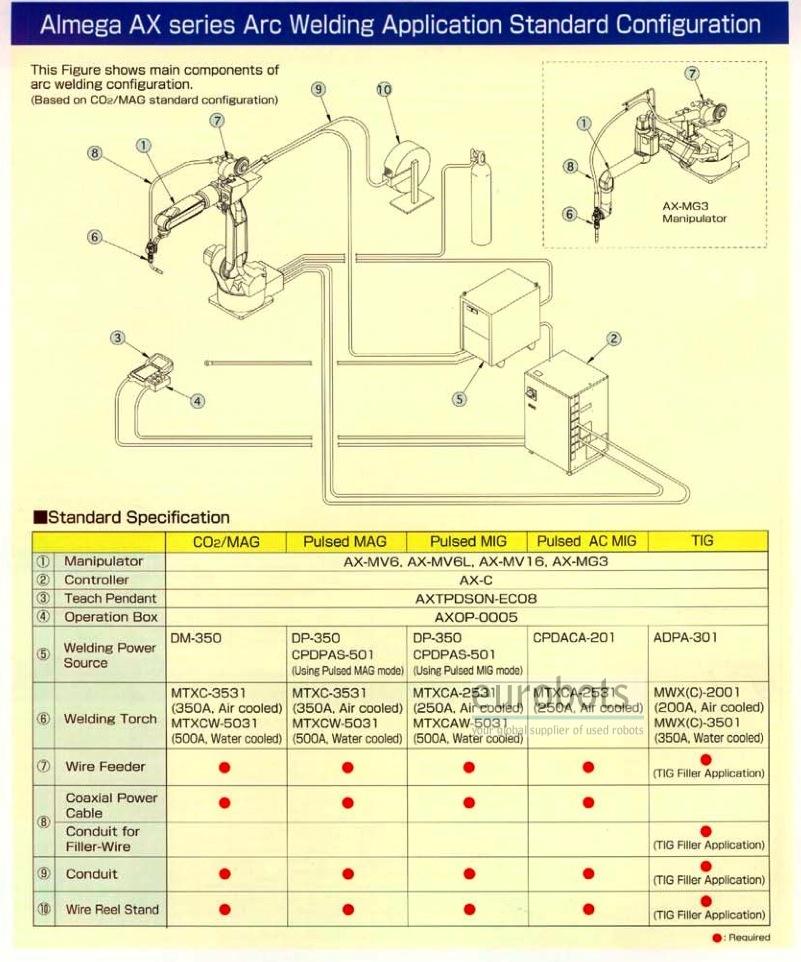

Diagrams
