Fanuc ARC Mate 0iB

Awaiting more stock

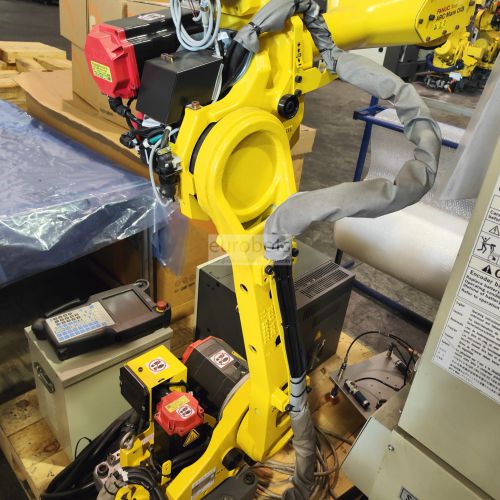

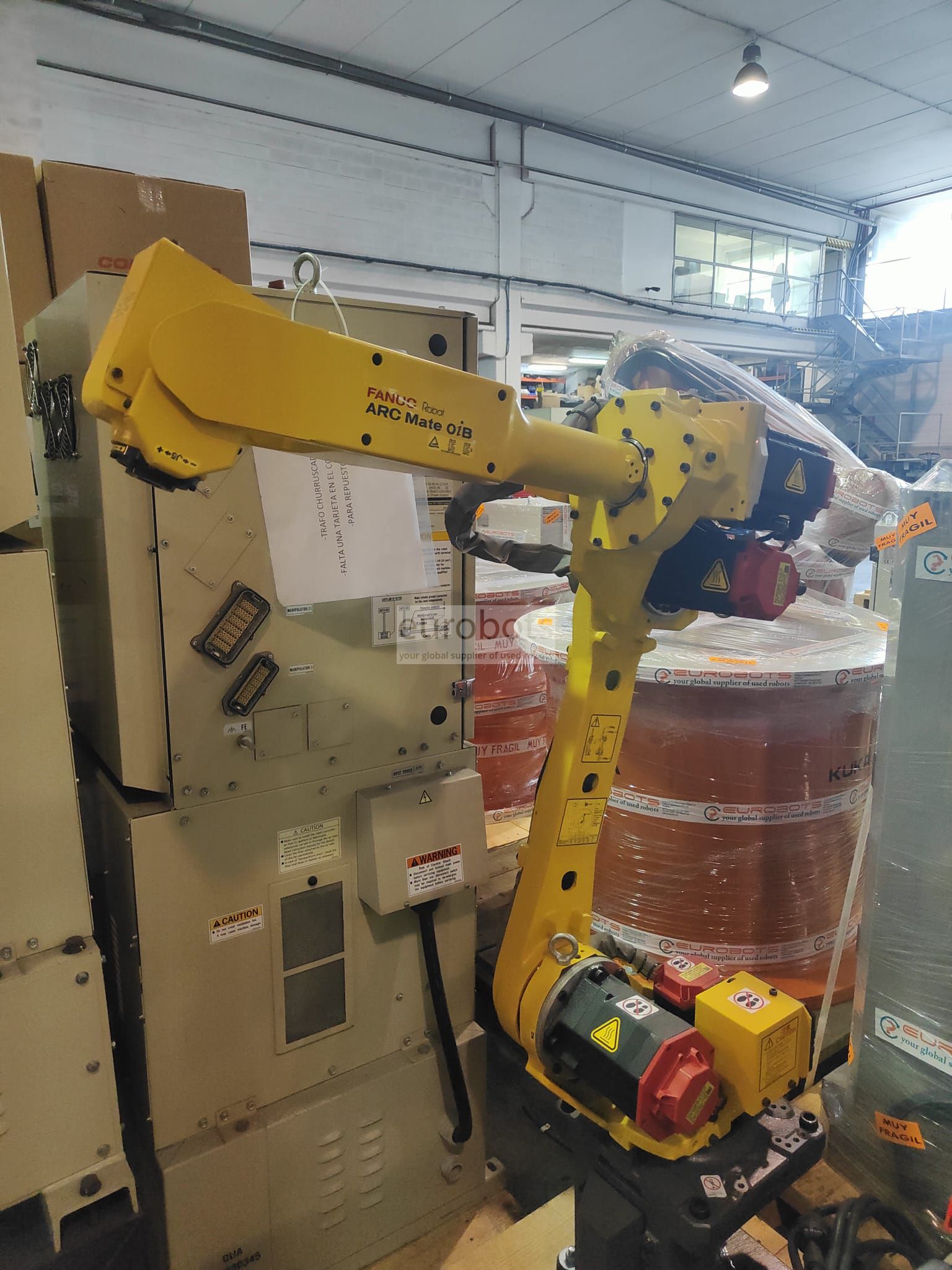

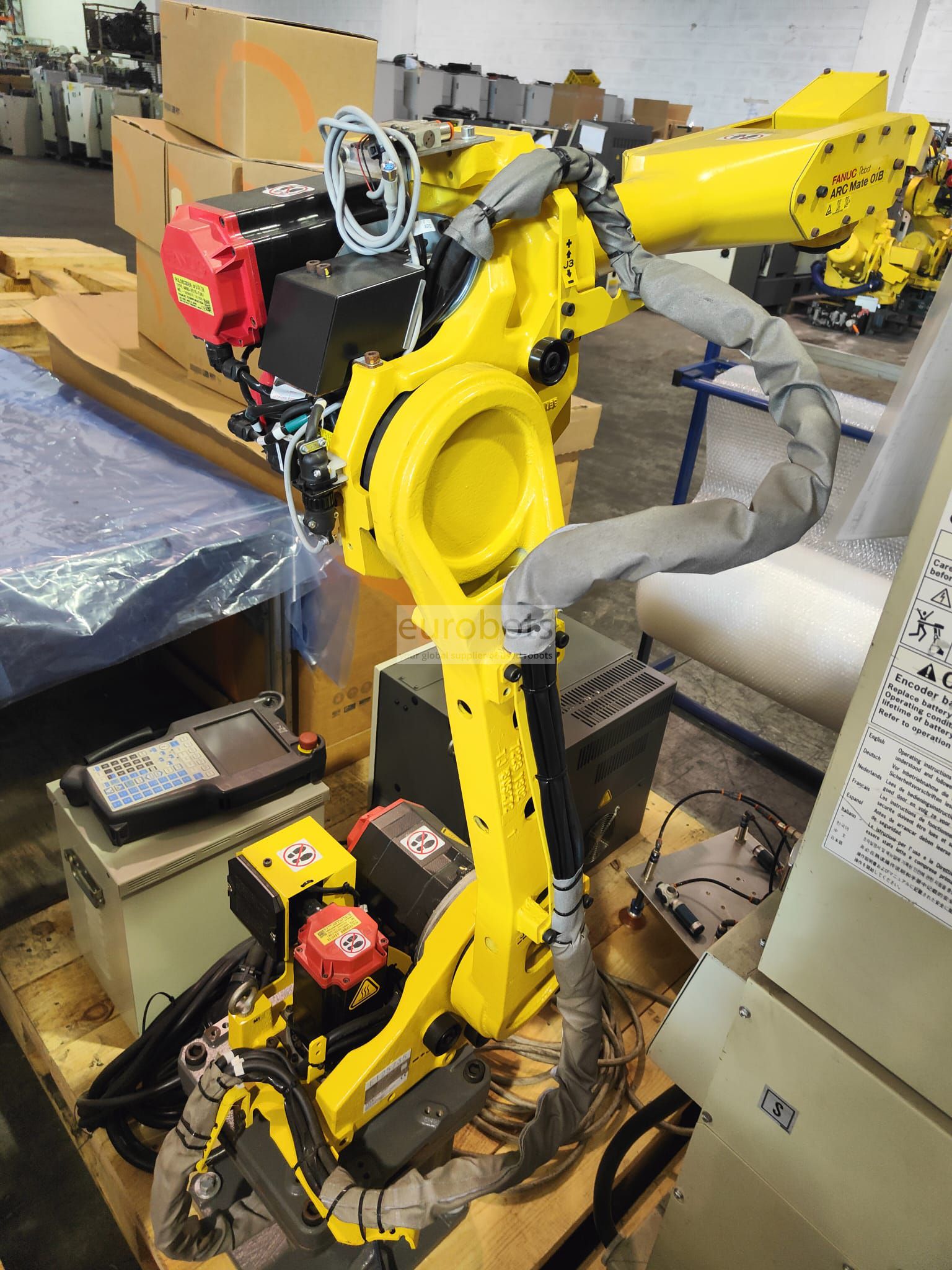

ARC Mate 0iB compact design robot and light arm for arc welding of small parts and light loads, 6-axis robot with payload capacity of 3 kg and a reach of 1437 mm increases the efficiency, speed and precision of occupying welds The minimum of space.

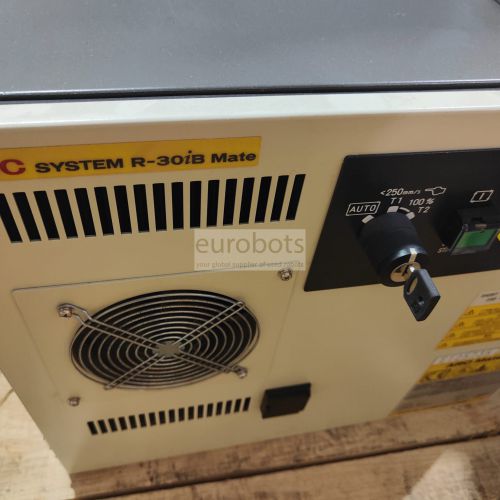

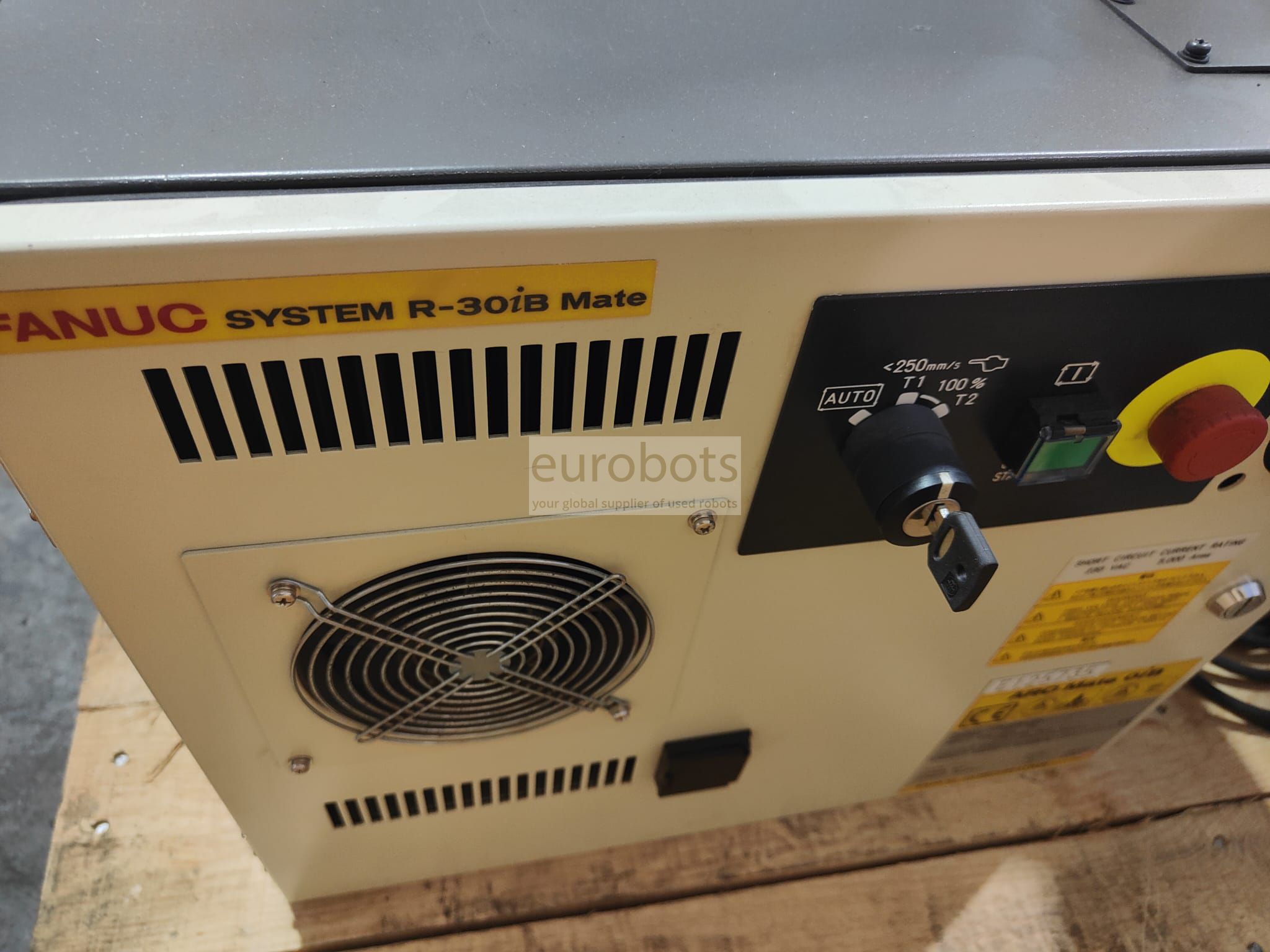

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications

Maximum Load of Robot: 3 Kg
Number of axis: 6
Maximum horizontal reach: 1437 mm
Repeatability:  ± 0.08
Controller: 30iB

Motion range (°)

Axis 1: 360°
Axis 2: 250°
Axis 3: 455°
Axis 4: 380°
Axis 5: 280°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 225°/s
Axis 2: 215°/s
Axis 3: 225°/s
Axis 4: 425°/s
Axis 5: 425°/s
Axis 6: 625°/s

Robot applications

Arc welding
Laser welding
Cutting

Applications

Arc welding , Spotwelding , Laser welding Nd-Yag
