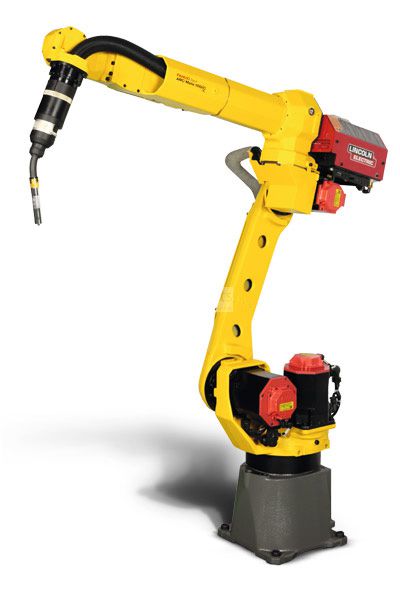

Fanuc ARC Mate 100iD/8L

Awaiting more stock

The ARC Mate 100iD / 8L is ideal for use in small cells since it takes up minimal floor area and may be mounted upside down or at an angle for further versatility. Cabling and air ducts go through the robot's hollow arm, wrist, and torso. allowing for complete flexibility and access to tight areas like jigs and fixtures. With a length of 57mm, this arc welding robot has the longest hollow arm in its class.

This arc welding robot makes it simple to run welding lines and track sensor wiring throughout the robot. Improves overall system dependability and simplicity of use by eliminating robot interference with its environment.

R-30iB control system

Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications

Maximum Load of Robot: 8 kg
Number of axis: 6
Maximum horizontal reach: 2032mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus

Motion range (°)

Axis J1: 340° (370° with hardware and/or software option)
Axis J2: 235°
Axis J3: 455°
Axis J4: 380°
Axis J5: 360°
Axis J6: 900°


Maximum speed (°/s)

Axis J1: 210°/s
Axis J2: 210°/s
Axis J3: 220°/s
Axis J4: 430°/s
Axis J5: 450°/s
Axis J6: 720°/s


Robot applications

ARC Welding


Applications

Arc welding
