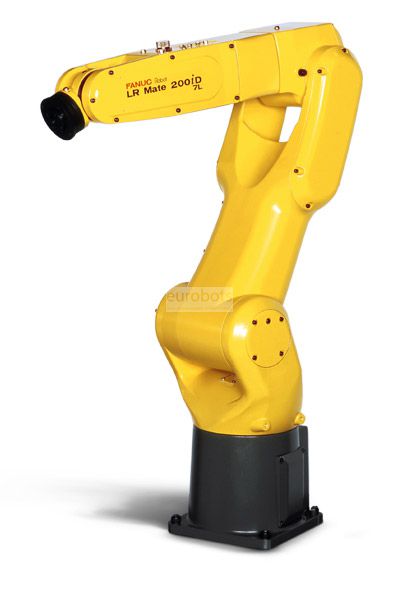

Fanuc LR Mate 200iD/7L R30iB Plus

Awaiting more stock

This small multifunctional industrial robot provides improved reach in addition to rapid handling with lower loads. It comes with a variety of choices, including built-in smart functionality (vision and force), specific application packages, and standard IP67 protection, as do other LR Mate robots. The model having the greatest range of motion. This is the long-reach LR Mate for different handling applications, with a reach of 911mm and a load capacity of up to 7kg.

Increased durability and cable protection, simpler maintenance and cleaning, increased system dependability.

Equipped with the R-30iB controller

R-30iB control system

Latest generation of efficient, compact and stackable FANUC advanced technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes power to reduce power consumption, high performance in cycle times with greater speed and accuracy.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With intuitive iPendant Touch, more intelligent and easy to use.

Main specifications

Maximum Load of Robot: 7 Kg
Number of axis: 6
Maximum reach: 911 mm
Repeatability: ± 0.01
Controller: R-30iB



Motion range (°)

Axis 1: 360°
Axis 2: 245°
Axis 3: 430°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 470°/s
Axis 2: 310°/s
Axis 3: 410°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s

Applications

Loading and unloading of parts
Machining
Handling of parts
Measurement
Assembly of parts

Applications

Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts
