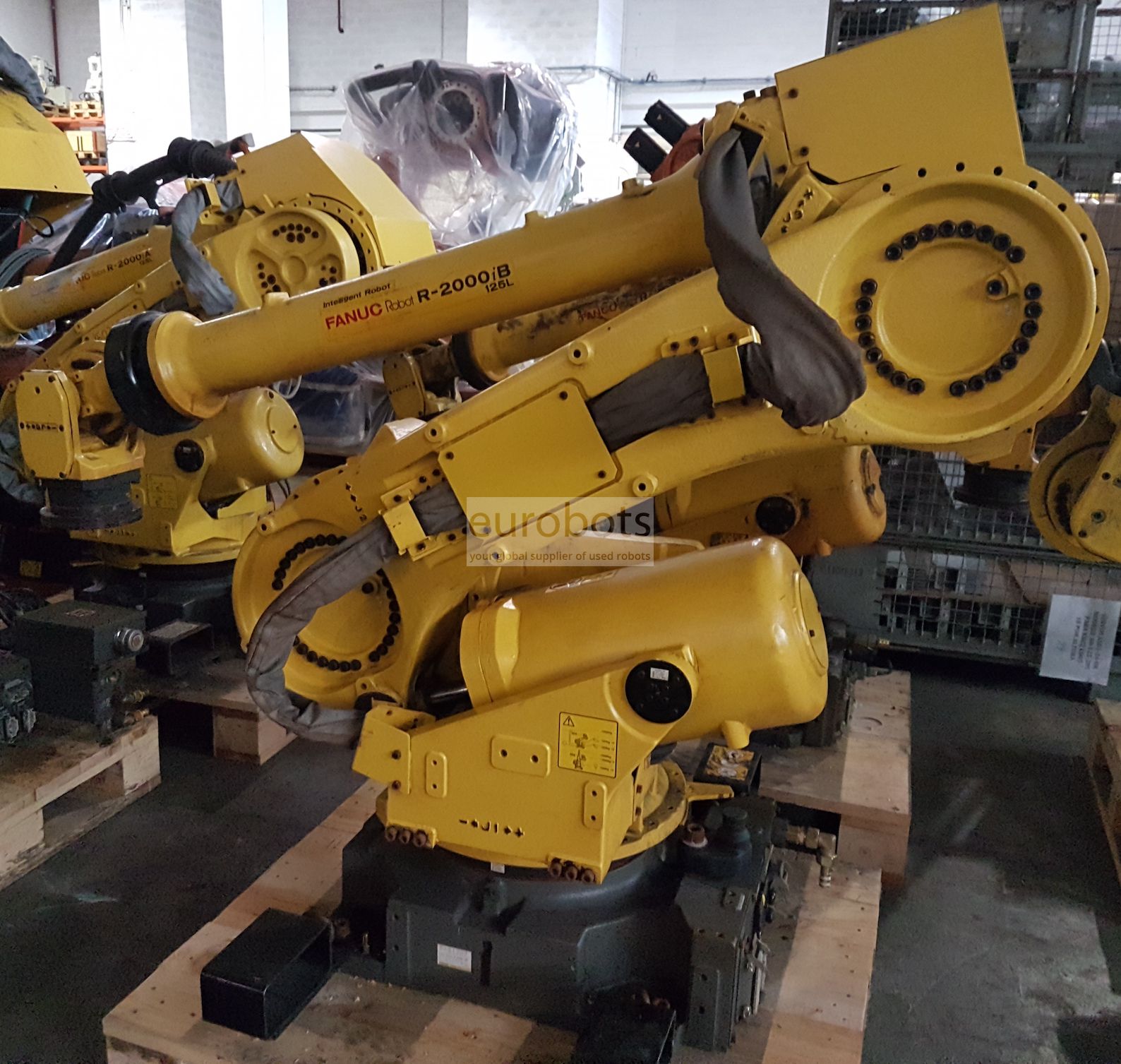

Fanuc R-2000iB-125L

Awaiting more stock

The largest work envelope (3005mm) of the R2000iB series, combined with the flexibility make the Fanuc R-2000iB 125L a valuable addition to Fanuc robotics. This six-axis industrial robot offers high performance and the ability to handle medium payloads(Max125kg). The R-2000iA 125L features high reliability and maintainability, along with the R-J3ic/R30iA robot control system.

The versatility of the Fanuc R-2000iA 125L has a slim profile design and the routing of the process cables through the arm. Counterweights were also eliminated to increase the overall workspace.

Mechanical features

- Large work envelope with ability to reach overhead and behind
- Slim profile design
- RV reducers for all axis
- Elimination of counterweight increases available workspace.
- Process/applications cables routed through the arm
- No motors at wrist

Coupled with the state of the art R-30iA controller.

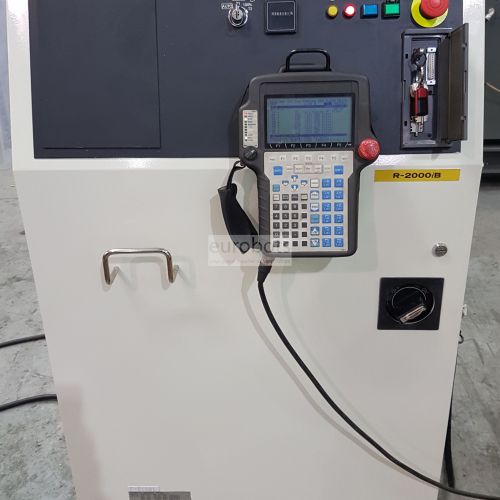

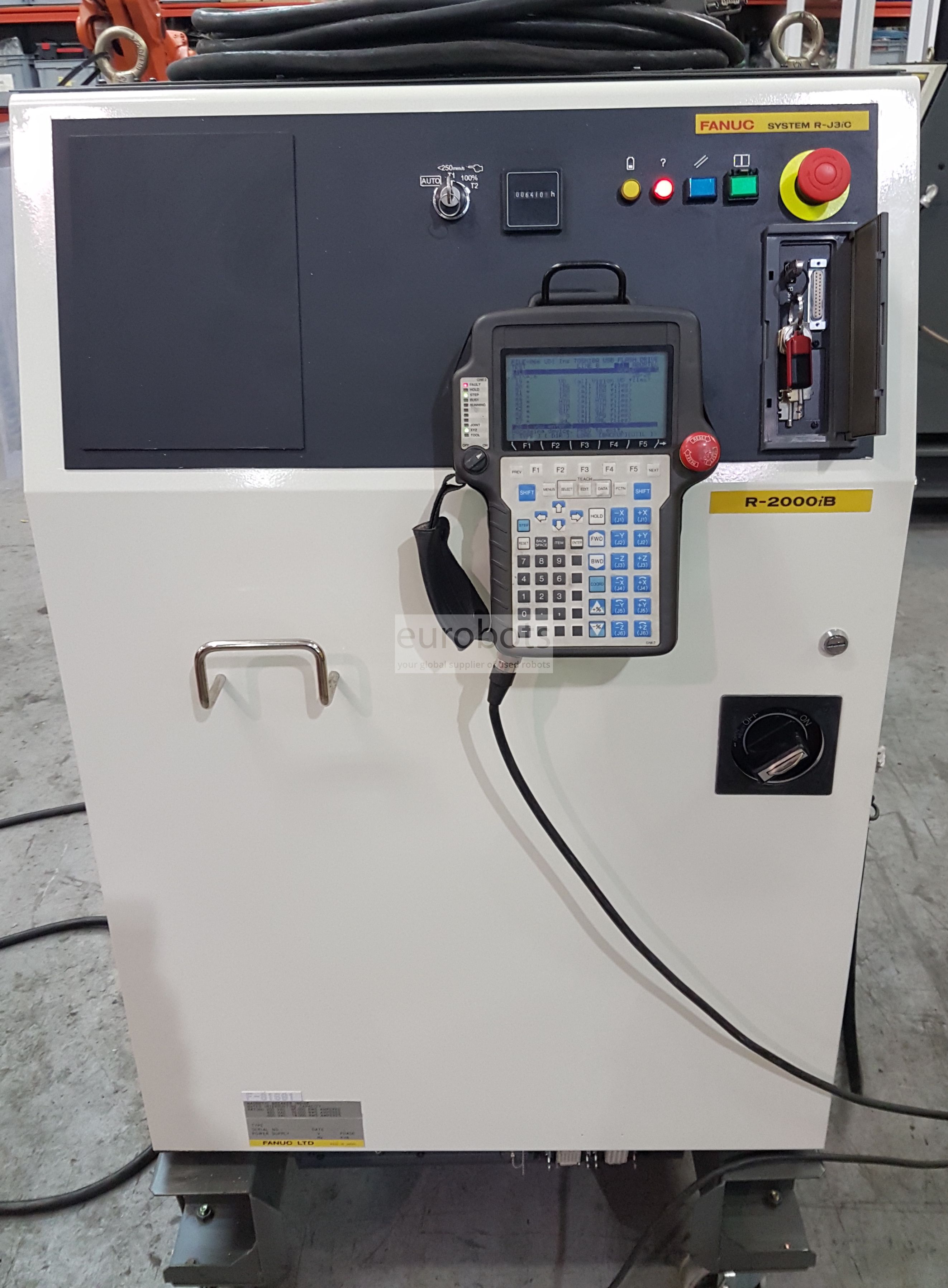

R-30iA features

The R-30iA controller needs less than 1 minute to start (and even less with the basic software only). In case of power failure:

Robot program restarts much quicker than with any PC-based program (non-Windows operating system).

The resume hotstart function allows restarting safely and continuing production after power failure: no need to re-do the whole movement.

Unique resume tolerance check: in case of any program interruption, the robot automatically memorises its position before failure. When the program continues, it checks whether the robot has been moved outside of a preset tolerance. This avoids unexpected movements and collisions.

Increased up-time (robot availability)

VIBRATION CONTROL

Thanks to enhanced hardware and software capacities, the R-30iA controller offers much better robot vibration control. This greatly reduces the robot’s acceleration and deceleration times, leading to reduced cycle times.

WIDE RANGE OF CONNECTIONS (USB2), PCMCIA INTERFACE...

The R-30iA controller has an USB interface in the front panel and a PCMCIA interface inside of the control cabinet

This allows fast and economical back-ups and restore of data and programs.

General features

  • Number of axis: 6
  • Max. payload: 125Kg
  • Maximum Reach: 3005 mm
  • Repeatability: 0.2 mm
  • Controller: RJ3ic-R30ia

Robot motion speed

  • Axis 1: 110º/s
  • Axis 2: 110º/s
  • Axis 3: 110º/s
  • Axis 4: 170º/s
  • Axis 5: 170º/s
  • Axis 6: 260º/s

Robot Applications

  • General industrial applications
  • Spotwelding and general assembly
  • Part transfer
  • Material removal
  • Dispensing
  • Machine loading
  • Arc welding

Applications

Arc welding , Spotwelding , Press tending , Palletising , Loading and unloading of parts , Handling of parts , Measurement , Plasma cutting

Pictures

Videos

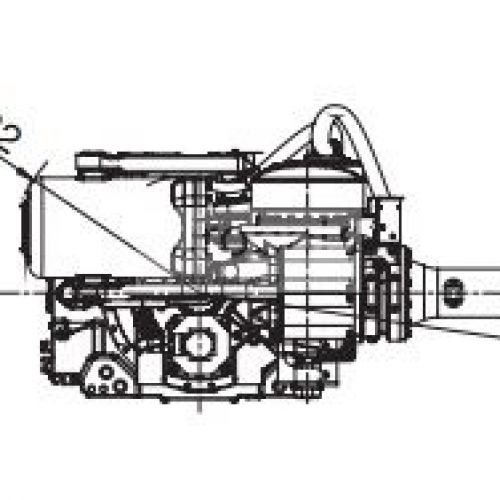

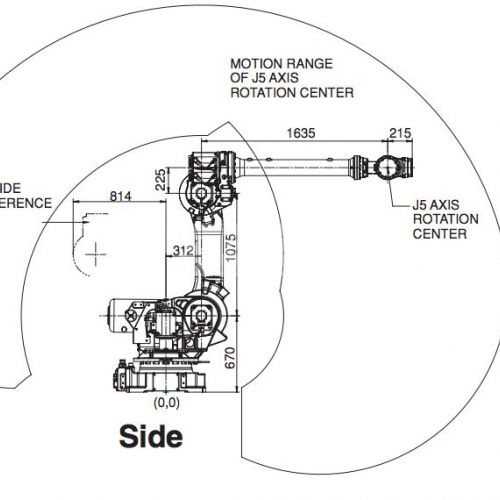

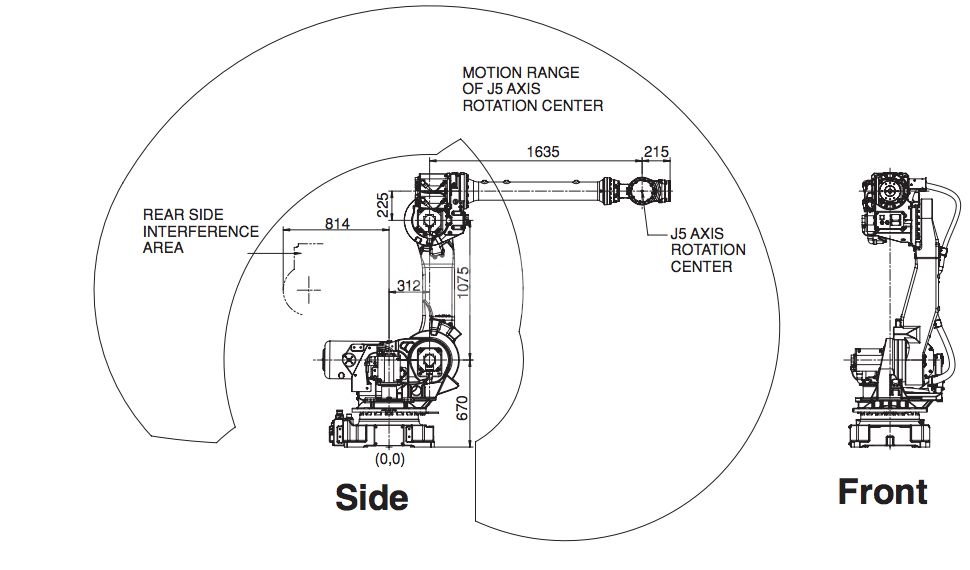

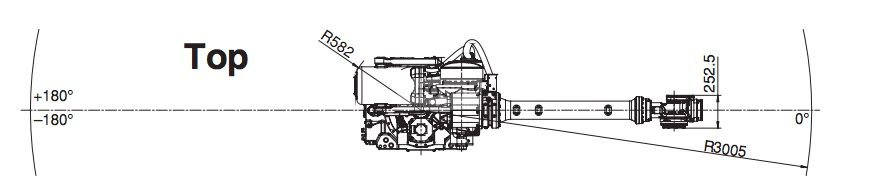

Diagrams
