Fanuc Arcmate 100i

Awaiting more stock

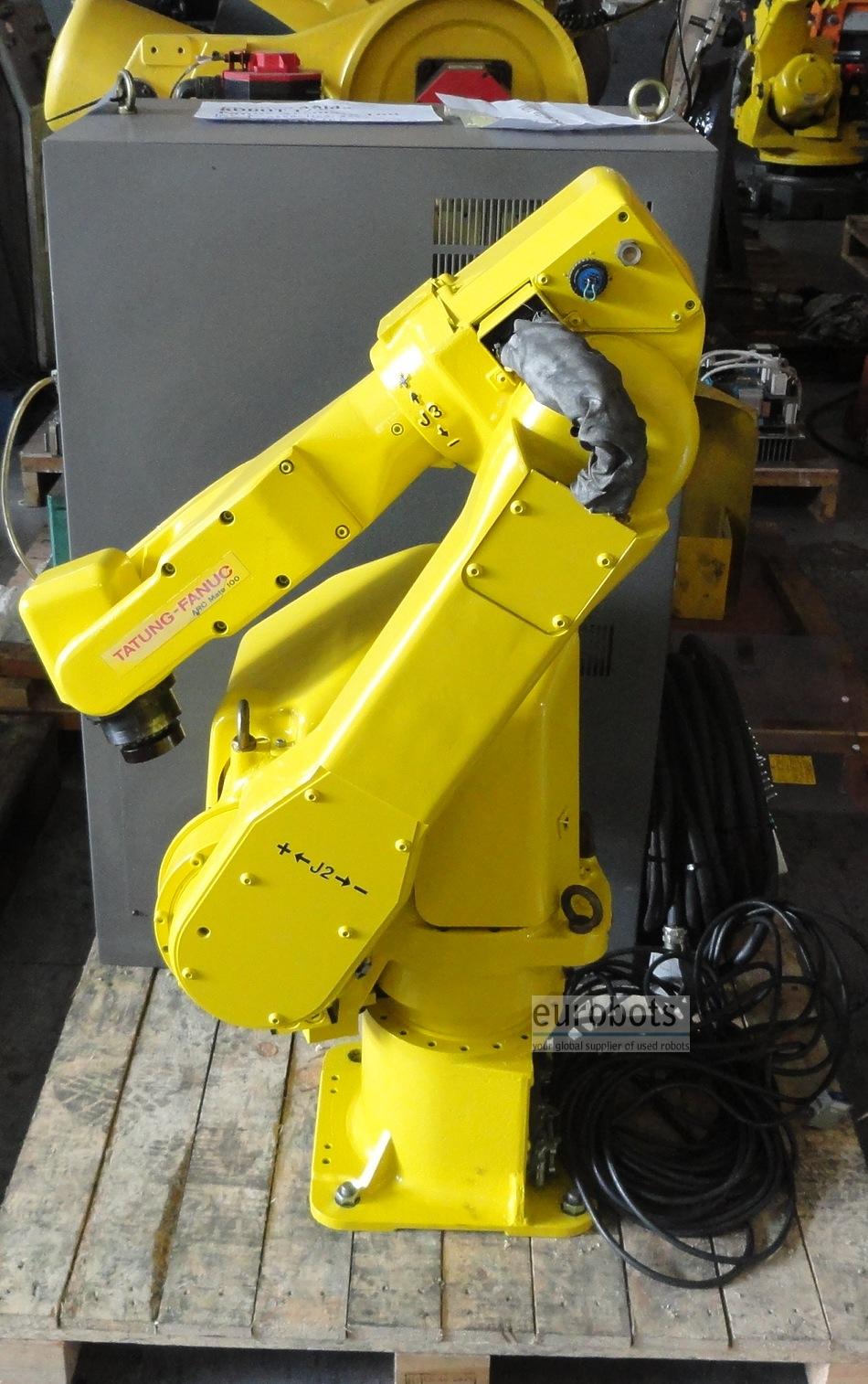

This Arcmate 100i is suitable for arc welding and handling applications and is equipped with the versatile RJ2 controller.

This robot is a six-axis, electric servo-driven robot capable of precise high-speed welding and cutting. Accuracy and performance are designed into the ArcMate 100i for all your welding and cutting requirements.


Features:

* Compatible with all major brands of welding equipment
* Interfaces with most types of servo driven or indexing positioners
* Sealed bearings and drives provide protection and improve reliability
* Integrated controller reduces footprint and eliminates exposed connection cables
* cable routing through center of axis rotation improves reliability

Robot Info

  • Maximum Load of Robot: 6 kg

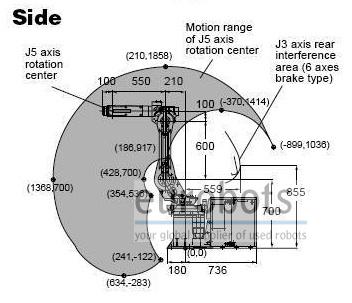

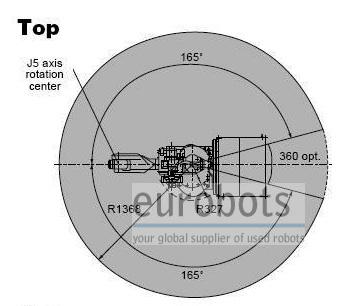

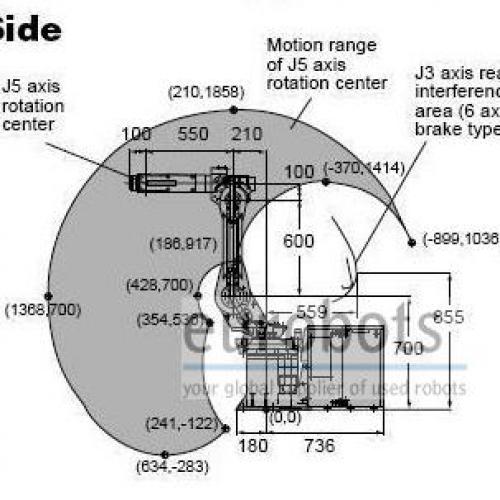

  • Maximum Reach: 1368 mm
  • Repeatability: 0,1 mm

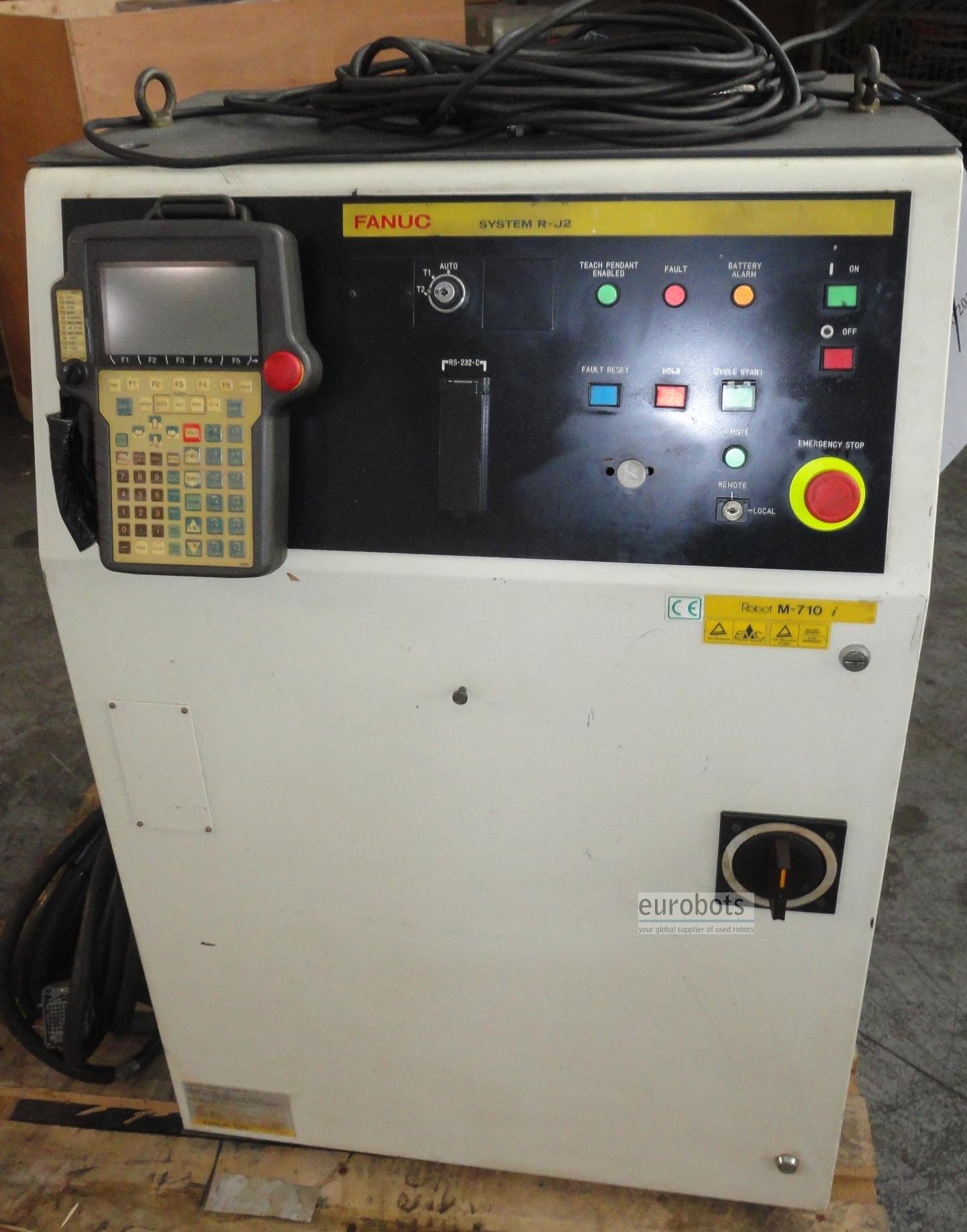

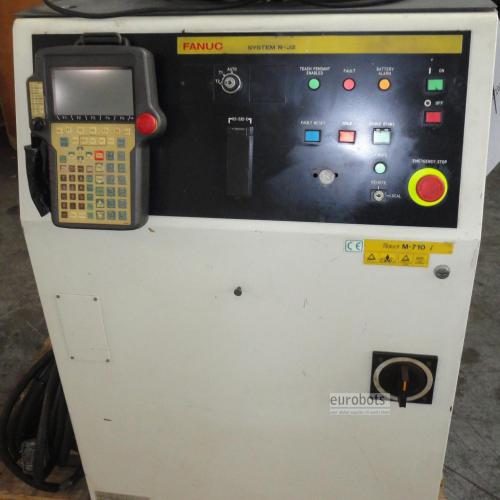

  • Controller: RJ2

Robot Motion Speed

  • Axis 1: 120º/s
  • Axis 2: 120º/s
  • Axis 3: 120º/s
  • Axis 4: 360º/s
  • Axis 5: 360º/s
  • Axis 6: 450º/s

Applications

Arc welding , Loading and unloading of parts , Handling of parts

Pictures

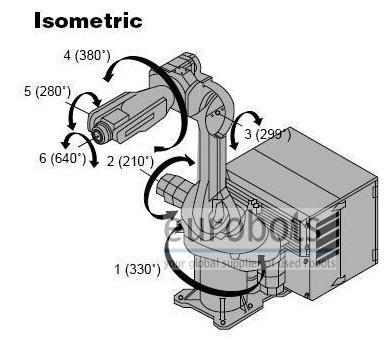

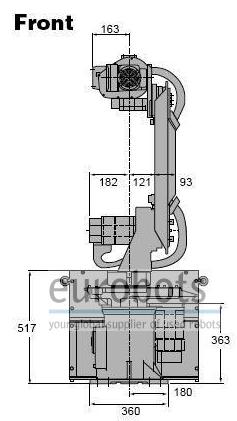

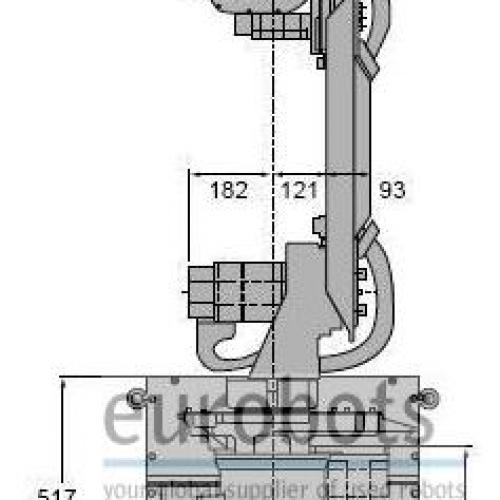

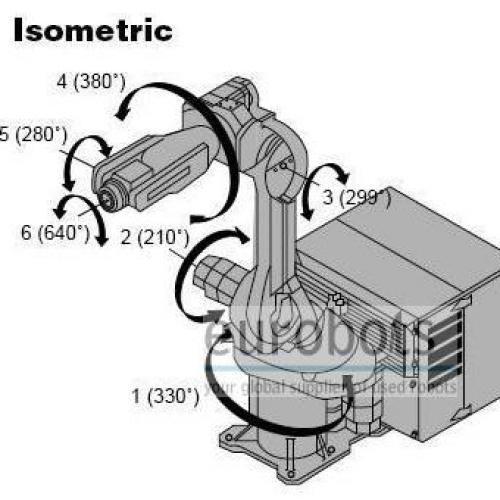

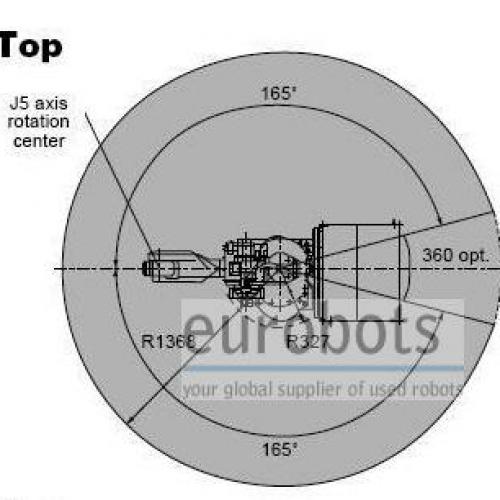

Diagrams
