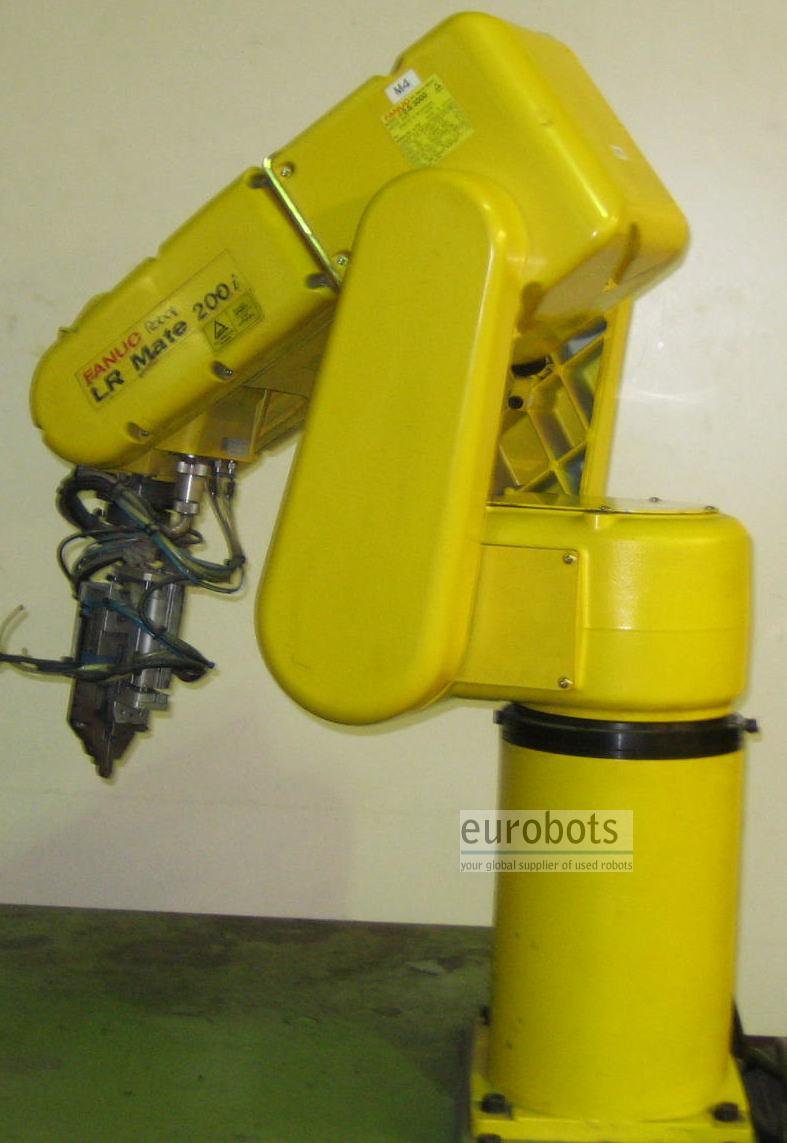

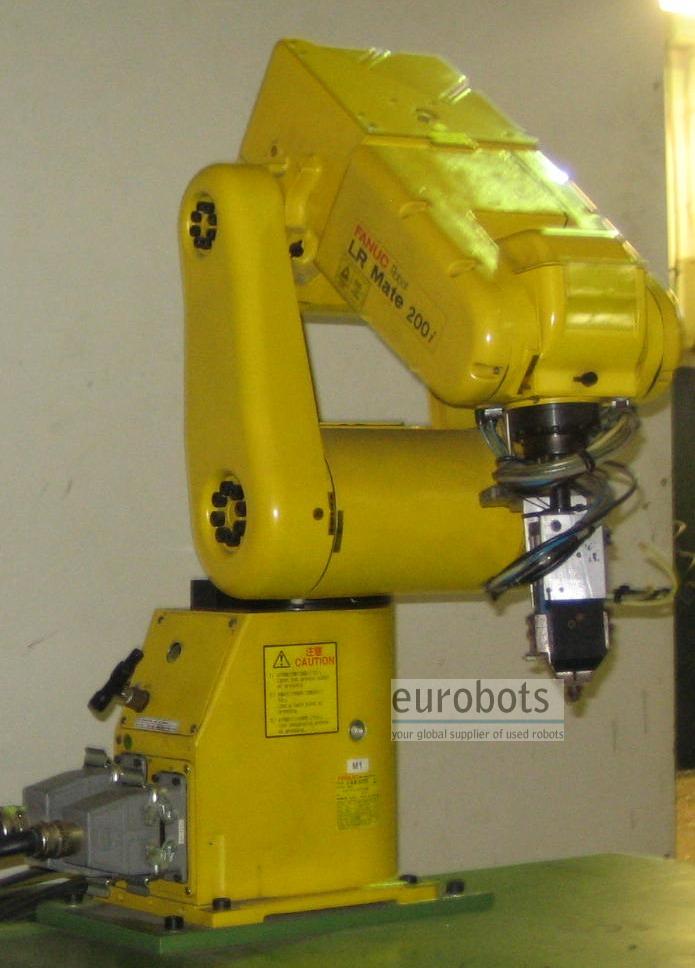

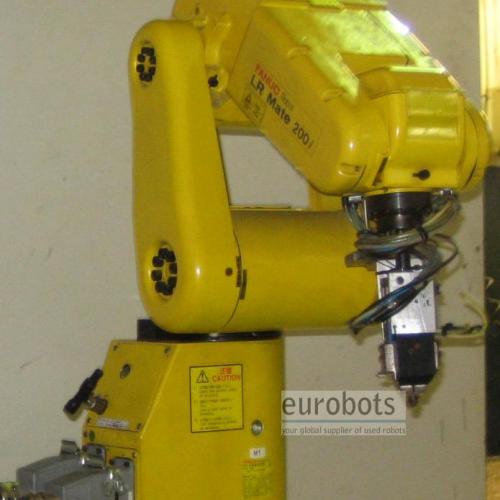

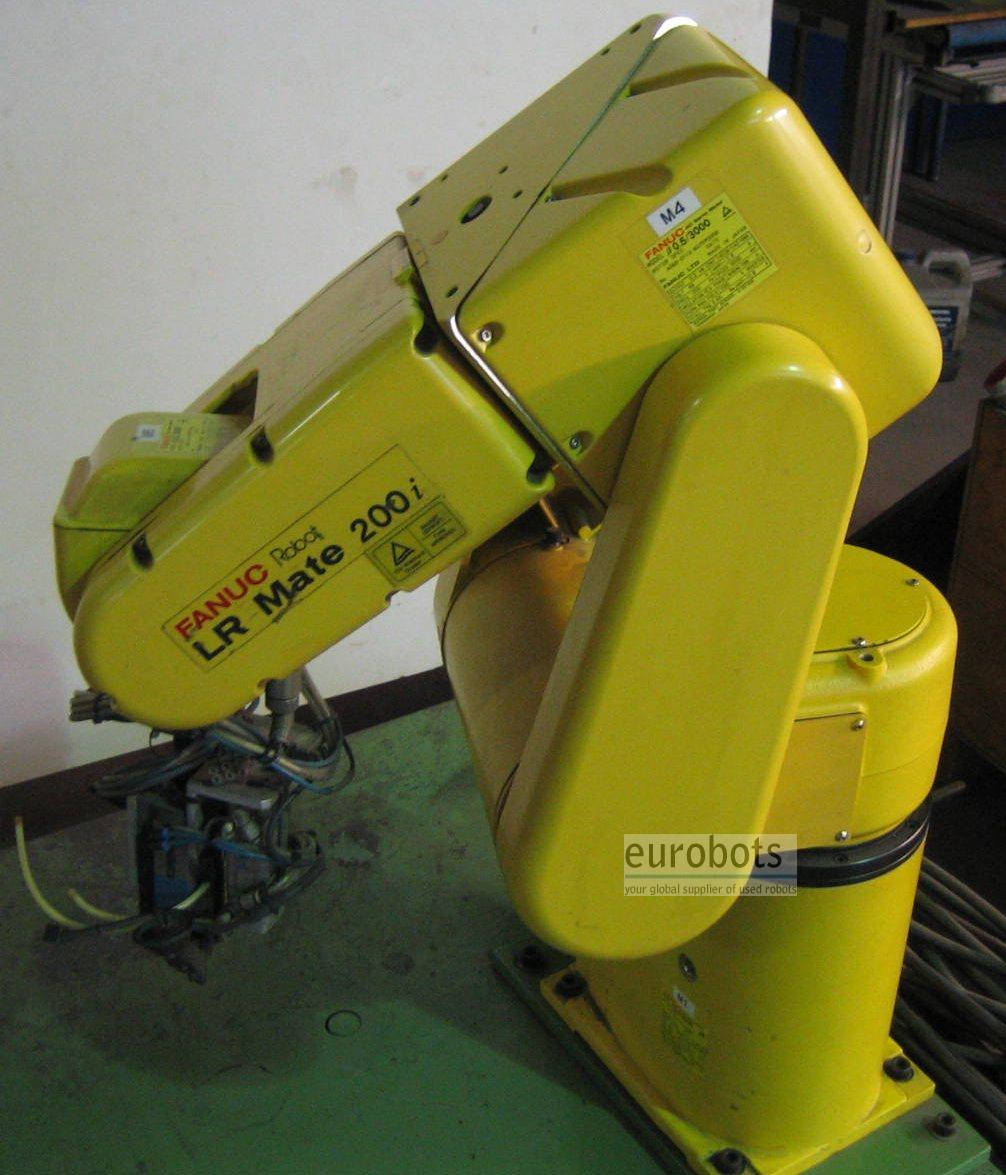

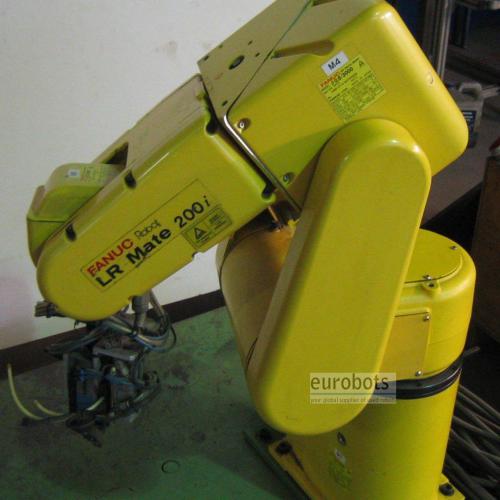

Fanuc LRMate 200i

Awaiting more stock

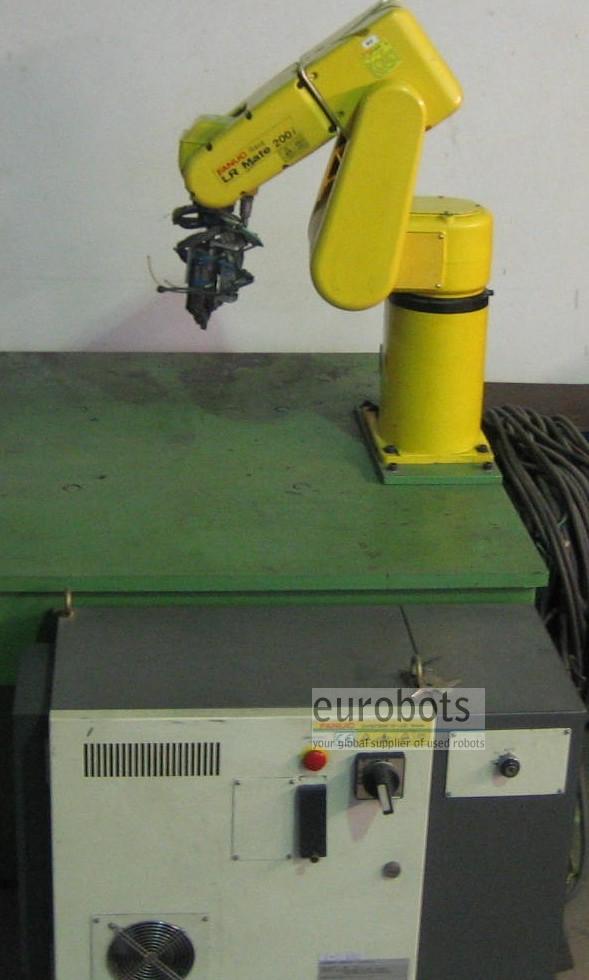

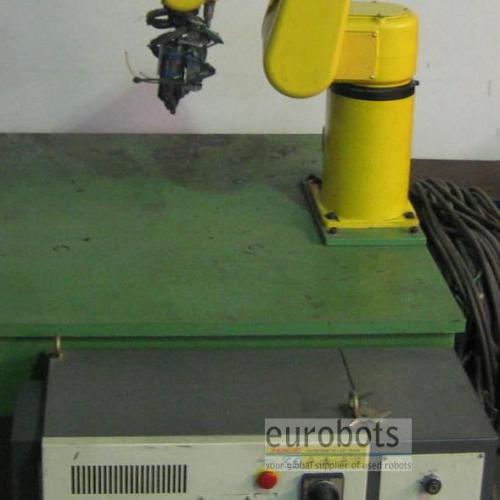

Year 1999. Equipped with the Rj2 controller.
The LR Mate series is FANUC Robotics electric servo-driven family of mini robots designed for precision machine load/unload, material handling, material removal, assembly, and lab testing applications. The robot’s small size, dexterity and high speed make it the perfect solution for a wide variety of industrial and commercial applications.

Features :

* Axis speeds up to 480 degrees/sec.
* End effector connector built into the wrist
* Integral, internally mounted solenoid valve pack
* Fail-safe brakes on axis 2 and 3

Robot Info

  •  Maximum Load of Robot: 3Kg.

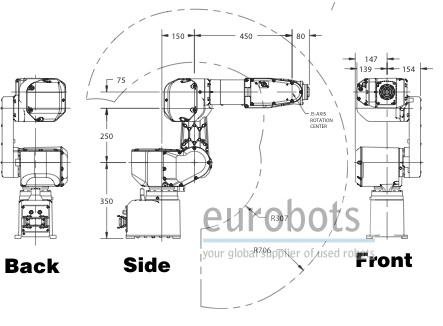

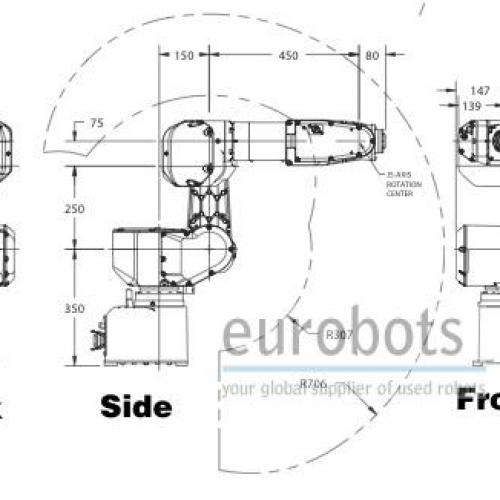

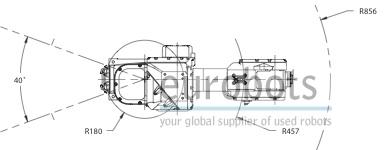

  •  Maximum Reach: 856 mm.
  •  Repeatability: 0,04 mm.

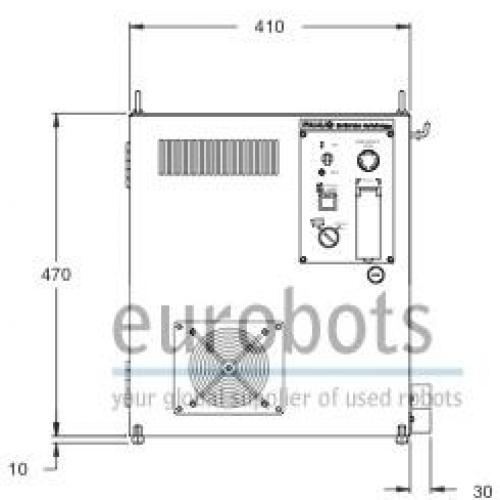

  •  Controller: Rj2

Robot Motion Speed:



  • Axis 1: 140º/seg
  • Axis 2: 150º/seg
  • Axis 3: 160º/seg
  • Axis 4: 400º/seg
  • Axis 5: 330º/seg
  • Axis 6: 480º/seg

Robot Applications:

  • Machine load/unload
  • Material handling
  • Testing and sampling
  • Electronics/Cleanroom
  • Parts cleaning/washing
  • Assembly
  • Material removal
  • Packing
  • Education

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts
