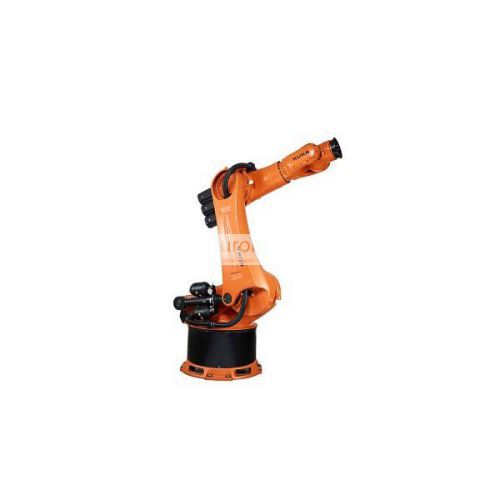

KUKA KR 480 R3400-2

Awaiting more stock

The KR FORTEC ultra robots, designed for heavy-duty tasks, can handle up to 800 kilograms with precision in tight spaces, making them ideal for tasks involving large and heavy components. These robots excel in situations where high moments of inertia are a challenge, such as battery handling and giga-casting. As production demands for payload and reach increase, the KR FORTEC ultra robots efficiently meet these demands while offering a modular and adaptable design. They lead in performance, cost-effectiveness, and flexibility for both present and future needs.

  • Unbeatable power in a compact design:

    • Up to 800kg payload
    • Small 950×970mm footprint
    • Lightweight at 2.2 t
    • High dynamics with low cycle times
  • Low TCO (Total Cost of Ownership):

    • Low energy consumption
    • Highest availability at 99.998%
    • MTBF up to 400,000h
    • Short maintenance time (MTTM)
    • Fast repair time (MTTR)
    • Low spare parts requirement
  • Highest performance and maximum flexibility:

    • Compatibility with tools of different sizes through HI (High Inertia) version
    • Option to upgrade to HI version or adjust payload capacity
  • Reduced maintenance costs:

    • Components with low maintenance requirements
    • Easy accessibility for visual inspection, lubrication, and oil change every 20,000h
Controller

KR C5

KR C5 micro

Number of axes 6
Rated payload 480 kg
Wrist variant  In line
Reach  3,400 mm
Pose repeatability 0.08 mm
Weight 2,140 kg
Variants  -
Installation position Floor
