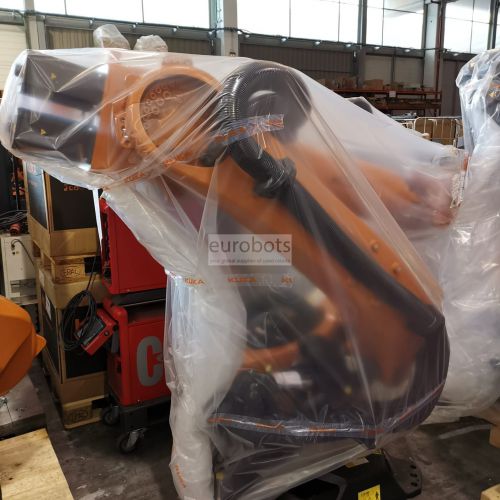

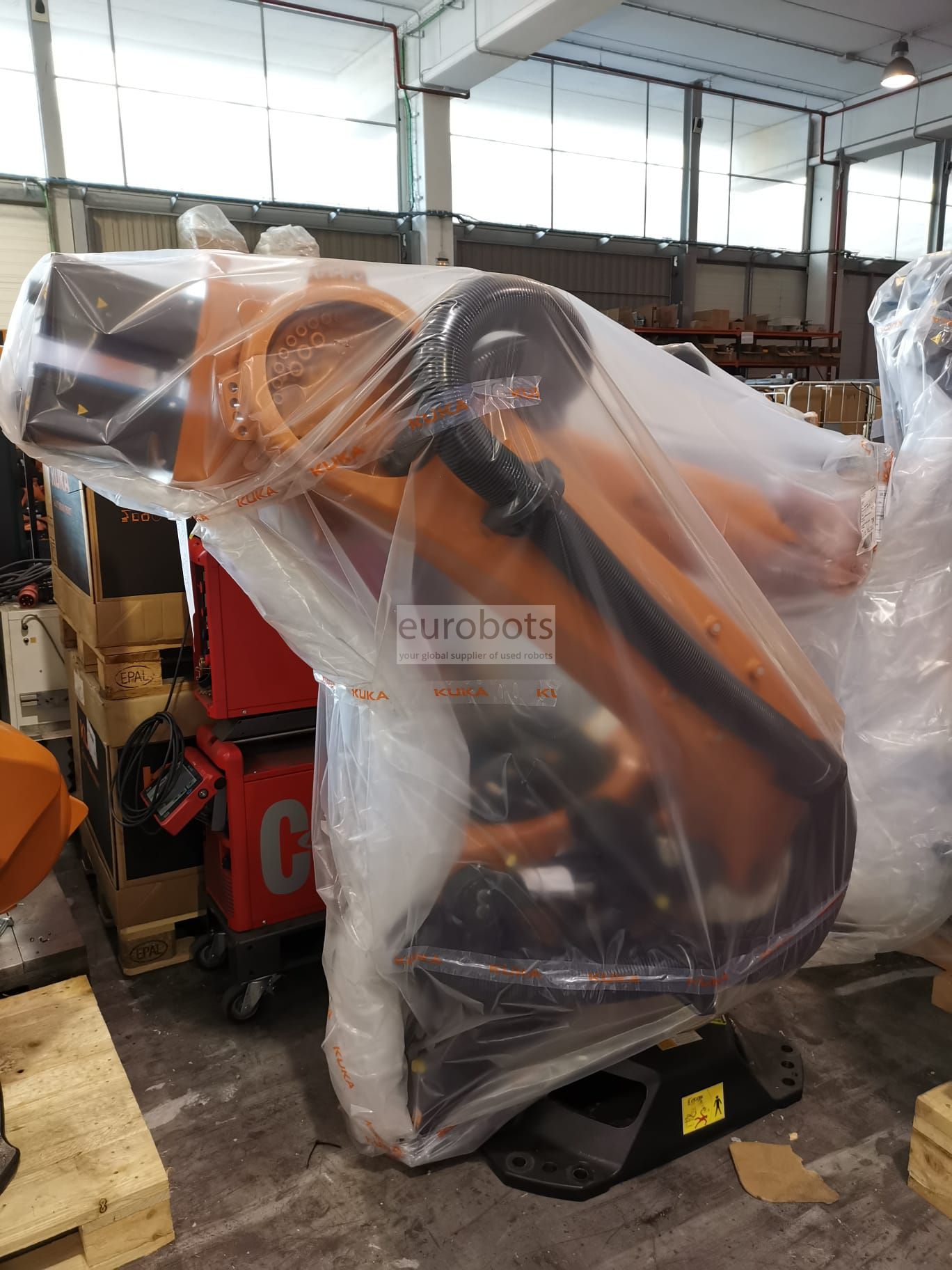

KUKA KR 210 R3100 Ultra

Industrial Robot KUKA KR210 R3100 is compact and robust design that provides safety and durability and at the same time is lightweight. It is characterized by maintaining the harmony between the load capacity and the range of reach of the robotic arm. Ideal for spot welding processes with optimal cycle times and acceleration, greater precision, minimum maintenance, high performance in the space for assembly and energy efficiency.

KR C4 - Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability

Main specifications

  • Maximum Load of Robot: 210 Kg
  • Number of axis: 6
  • Maximum reach: 3100 mm
  • Repeatability: ±0.06 mm
  • Controller: KRC4

Motion of  range

  • Axis 1: ± 185º
  • Axis 2: -140°/-5°
  • Axis 3: -120°/155°
  • Axis 4: ±350°
  • Axis 5: ±122.5°
  • Axis 6: ±350°

Robot motion speed in º/s

  • Axis 1: 105°/s
  • Axis 2: 107°/s
  • Axis 3: 114°/s
  • Axis 4: 136°/s
  • Axis 5: 129°/s
  • Axis 6: 206°/s

Robot Applications

  • Arc Welding
  • Assembly
  • Coating
  • Cutting
  • Machine Loading
  • Machine Tending
  • Material Handling
  • Picking
  • Packaging
  • Palletizing
  • Waterjet cutting


Press tending , Palletising , Painting , Loading and unloading of parts , Machining , Handling of parts , Polishing , Measurement , Assembly of parts
