KUKA IONTEC KR 50 R2500

Awaiting more stock

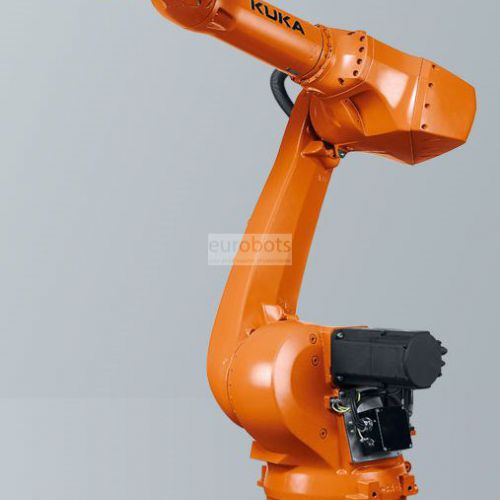

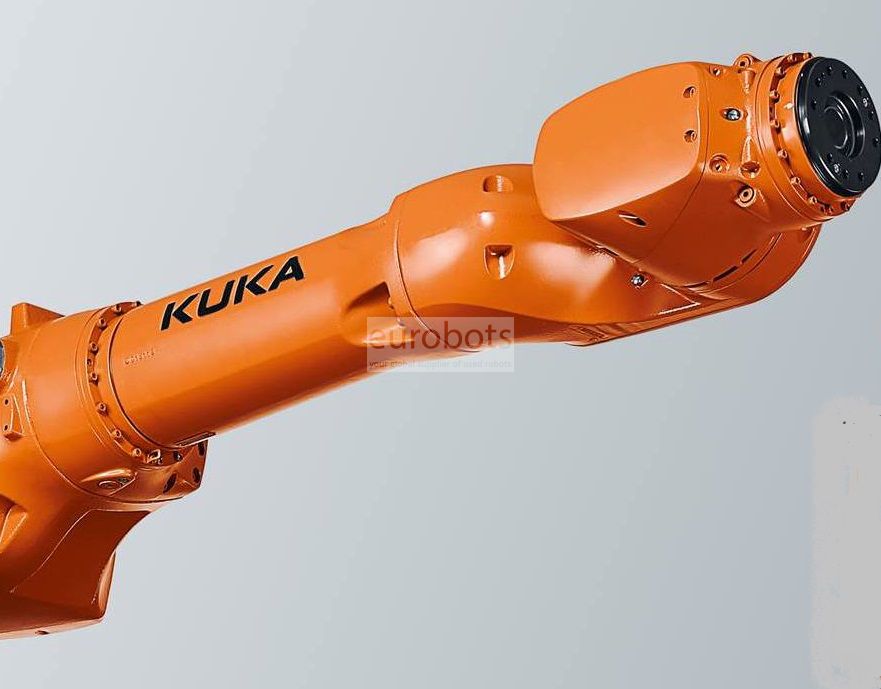

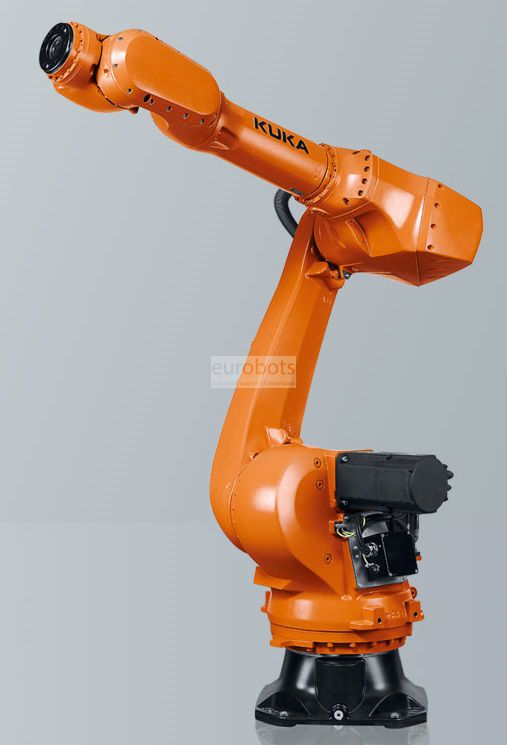

KR 50 R2500 of the highly flexible KR Iontec series from Kuka, It offers one of the highest ranges of this series with useful capacity of 50 kg, suitable for medium load tasks, makes optimal use of space, has a degree of IP65 protection for work in harsh conditions, water and dust proof. This robotic model significantly reduces your costs with low energy consumption, low operating costs and low maintenance.

KR C4 - Kuka's latest breakthrough

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

• Simple to plan, operate and maintain
• Continuation of service-proven PC-based control technologies
• Quick and easy operation thanks to continued use of familiar operator control concepts
• Expansion of the set of commands for more user-friendly path programming
• High compatibility with previous programs for the KR C2
• Safety, Robot, Logic, Motion and ProcessControl in a single control system
• Real-time communication between the dedicated control processes
• Central basic services for maximum data consistency
• Seamless integration of safety technology for entirely new fields of application
• Integrated software firewall for greater network security
• Innovative software functions for optimized energy efficiency
• Future-compatible technology platform without proprietary hardware
• Multi-core processor support for scalable performance
• Fast communication via Gigabit Ethernet
• Integrated memory cards for important system data
• New fan concept for optimized energy efficiency
• Maintenance-free cooling without filter mats
• Highest performance in the smallest possible space
• Maximum availability

Main specs

Maximum Load of Robot: 50 kg
Number of axis: 6
Maximum reach: 2500
repeatability: ± 0.05
Controller: KR C4

Robot applications

Palletized
Packing
Handling
Cut
Laser welding
Machining
Assembly
Material handling
Painting
Union
Measurement



Applications

Palletising , Painting , Machining , Handling of parts , Measurement , Assembly of parts , Glueing - Adhesive bonding , Plasma cutting
