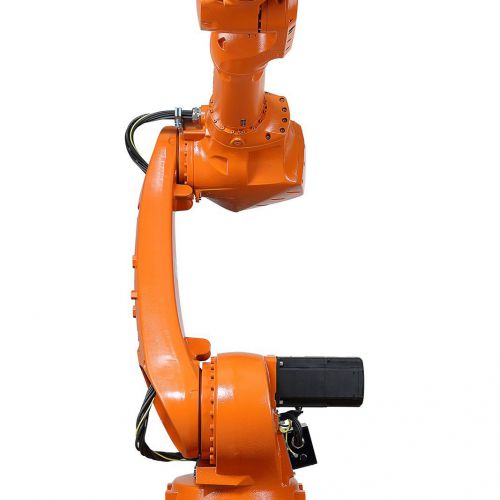

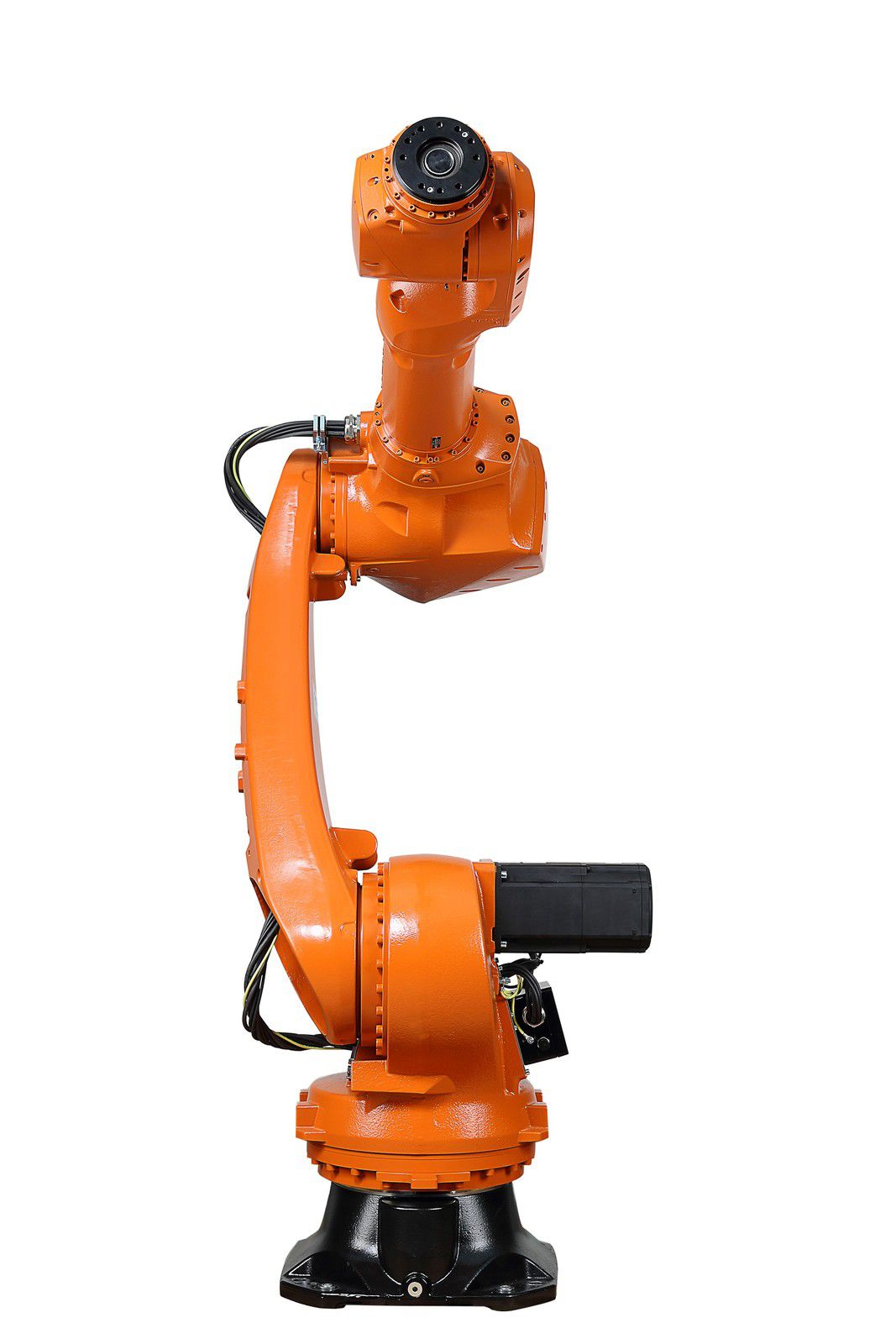

KUKA IONTEC KR 70 R2100

Awaiting more stock

KR 70 R2100 with aerodynamic design, 6-axis, with greater flexibility; with just one click you can adjust the movement of the robots to various processes, ease of installation even in compact cells as it has several installation options (floor, angle, wall, ceiling), has the largest operating range in its class, is Suitable for various applications and can be adapted to specific requirements, proven kuka technology for quick and easy commissioning. Low investment for a wide variety of tasks.

KR C4 - Kuka's latest breakthrough

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

• Simple to plan, operate and maintain
• Continuation of service-proven PC-based control technologies
• Quick and easy operation thanks to continued use of familiar operator control concepts
• Expansion of the set of commands for more user-friendly path programming
• High compatibility with previous programs for the KR C2
• Safety, Robot, Logic, Motion and ProcessControl in a single control system
• Real-time communication between the dedicated control processes
• Central basic services for maximum data consistency
• Seamless integration of safety technology for entirely new fields of application
• Integrated software firewall for greater network security
• Innovative software functions for optimized energy efficiency
• Future-compatible technology platform without proprietary hardware
• Multi-core processor support for scalable performance
• Fast communication via Gigabit Ethernet
• Integrated memory cards for important system data
• New fan concept for optimized energy efficiency
• Maintenance-free cooling without filter mats
• Highest performance in the smallest possible space
• Maximum availability

Main specs

Maximum Load of Robot: 70 kg
Number of axis: 6
Maximum reach: 2100
repeatability: ± 0.05
Controller: KR C4

Robot applications

Palletized
Packing
Handling
Cut
Laser welding
Machining
Assembly
Material handling
Painting
Union
Measurement


Applications

Palletising , Painting , Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts , Laser cutting , Glueing - Adhesive bonding
