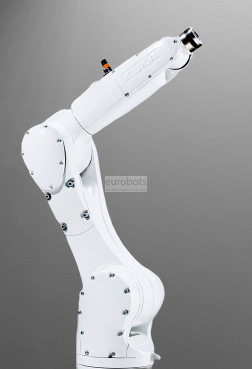

KUKA KR AGILUS Cleanroom

Awaiting more stock

KR AGILUS six-axis compact robot designed for high speeds. It has a great advantage: its small structure and 6kg load capacity, arm reach and mounting versatility allow to obtain great precision in the processes in a minimum space.

KR AGILUS CR clean room robot, KR AGILUS CR can be easily installed even in the smallest places and in the most complicated applications that require extremely strict cleaning requirements. Meets the requirements of clean room class ISO2. The cleanroom-compatible robot has an incredibly smooth surface thanks to an unique powder coating and excellent particle-emission sealing. The robot does not exhale dust or leftover components from the friction of the joints since it does not generate particles that circulate in the air. It even fulfills the Fraunhofer Institut's stringent clean room requirements in this way.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability

Main specifications

Cleanroom KR 6 R700 CR  KR 6 R900 CR KR 10 R900 CR KR 10 R1100 CR
Axis 6 6 6 6
Max Load 6 kg 6 kg 10 kg 10 kg
Max reach 706,7 mm 901,5 mm 901,5 mm 1101 mm
Repetibilidad de posición  ± 0,03 mm ± 0,03 mm ± 0,03 mm ± 0,03 mm
Environment Cleanroom Cleanroom Cleanroom Cleanroom
Mounting position Angle, Wall, Floor, Ceiling Angle, Wall, Floor, Ceiling Angle, Wall, Floor, Ceiling Angle, Wall, Floor, Ceiling
Protection class IP 54 IP 54 IP 54 IP 54
Control unit KR C4 compact, KR C4 smallsize-2 KR C4 compact, KR C4 smallsize-2 KR C4 compact, KR C4 smallsize-2 KR C4 compact, KR C4 smallsize-2

Range of motion

  KR 6 R700 CR KR 6 R900 CR KR 10 R900 CR KR 10 R1100 CR
AXIS 1 ±170 ° ±170 ° ±170 ° ±170 °
AXIS 2 -190 ° / 45 ° -190 ° / 45 ° -190 ° / 45 ° -190 ° / 45 °
AXIS 3 -120 ° / 156 ° -120 ° / 156 ° -120 ° / 156 ° -120 ° / 156 °
AXIS 4 ±185 ° ±185 ° ±185 ° ±185 °
AXIS 5 ±120 ° ±120 ° ±120 ° ±120 °
AXIS 6 ±350 ° ±350 ° ±350 ° ±350 °



Robot Applications

Clean room application
Application/Paint/Glue
Shielding Gas Welding
Palletized/Packed
Handling
Measurement/Check
Mounting
Mechanical processing & polishing
concatenation of presses


Applications

Painting , Loading and unloading of parts , Handling of parts , Measurement , Assembly of parts , Glueing - Adhesive bonding
