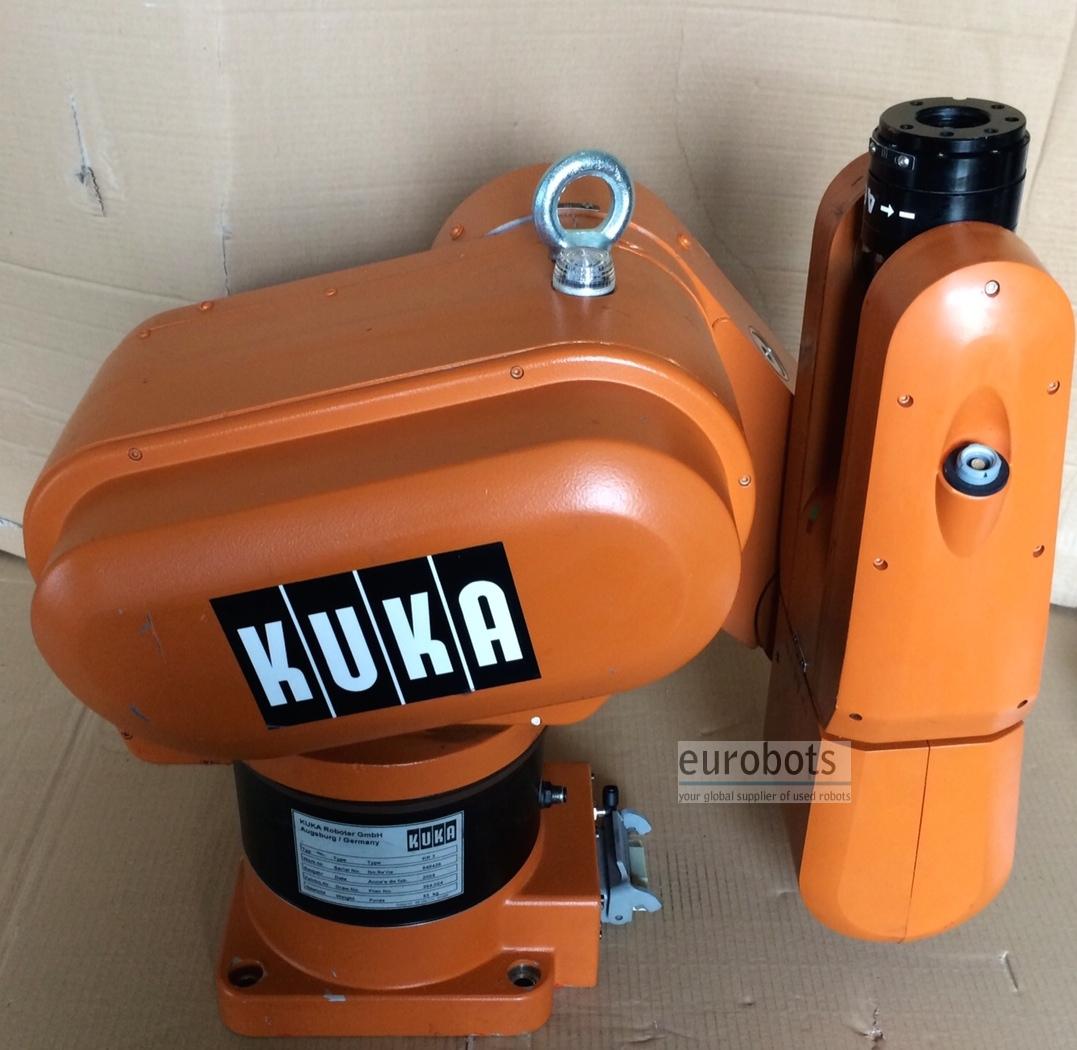

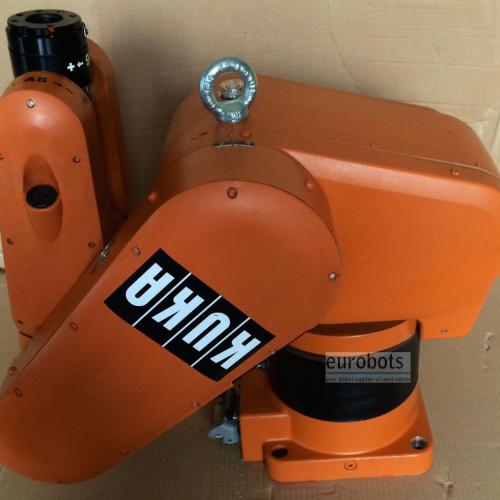

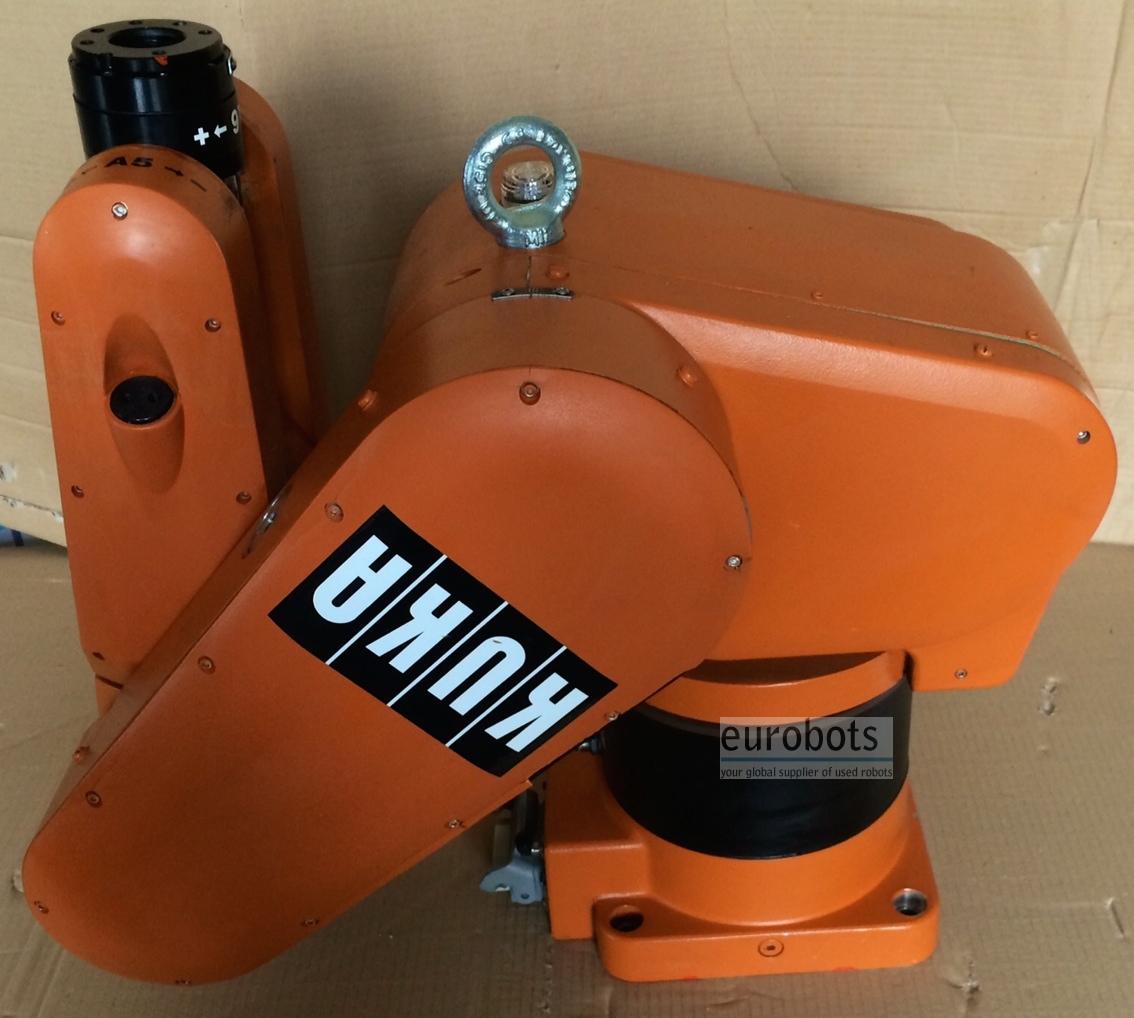

KUKA KR 3

Awaiting more stock

Information
Specifications

Ultra fast small payload robot, equipped with the KR C3 controller, the compact version of the KR C2. Year 2005

The KR 3 Robot is a six--axis industrial robot designed for light payload applications that require articulated motion in the horizontal and vertical planes.

Typical applications for the KR 3 include:

Machine loading and parts handling
Laboratory automation
Product testing
Assembly
Arc welding
Machining tasks, such as grinding, polishing, and deburring

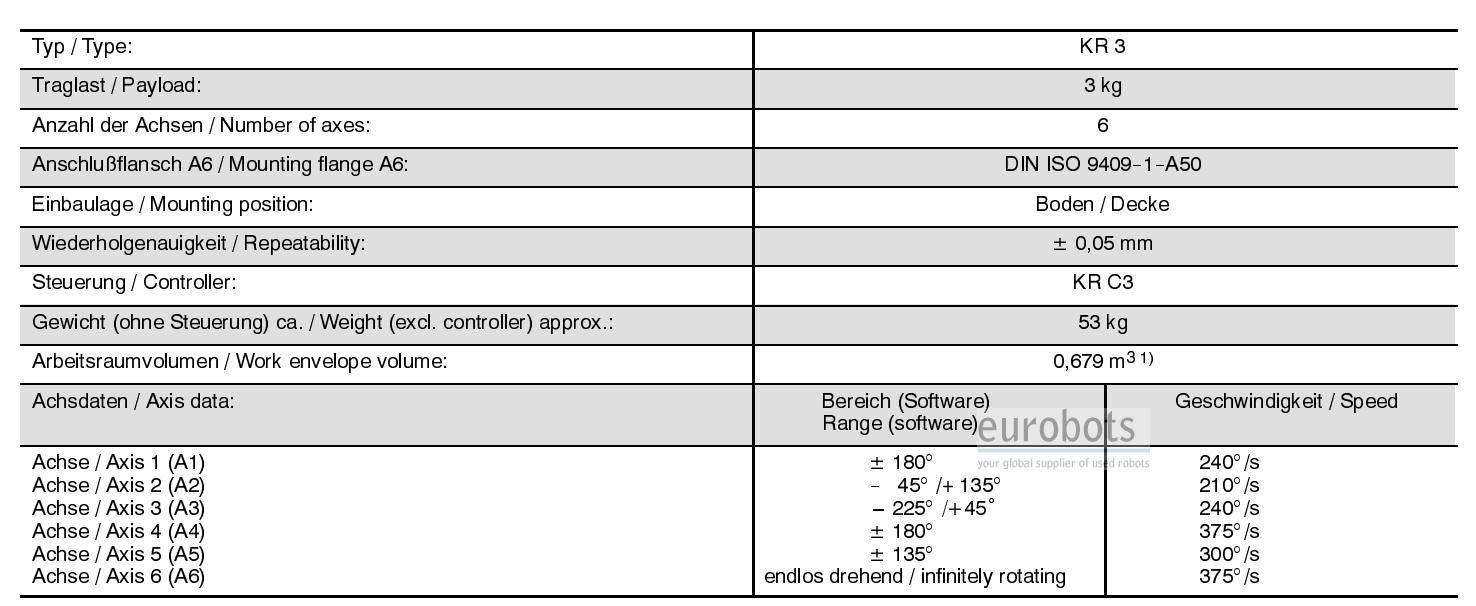

General specifications

Maximum Load of Robot: 3 Kg

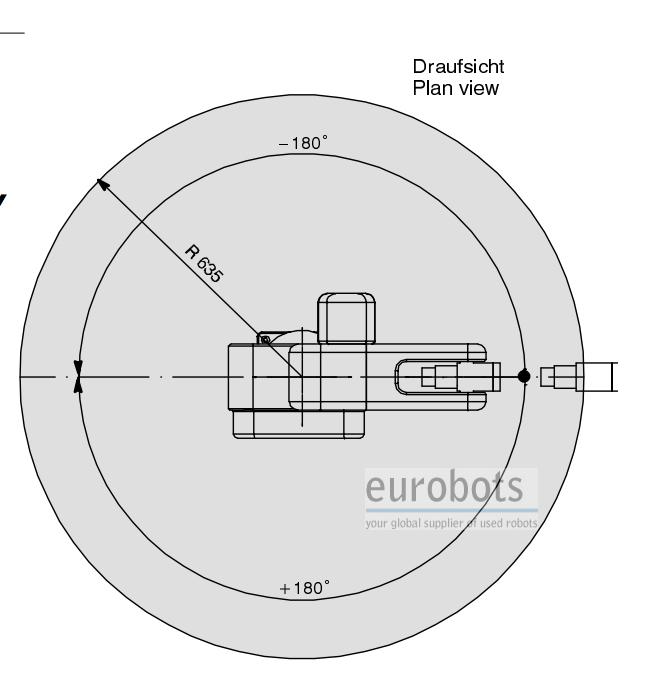

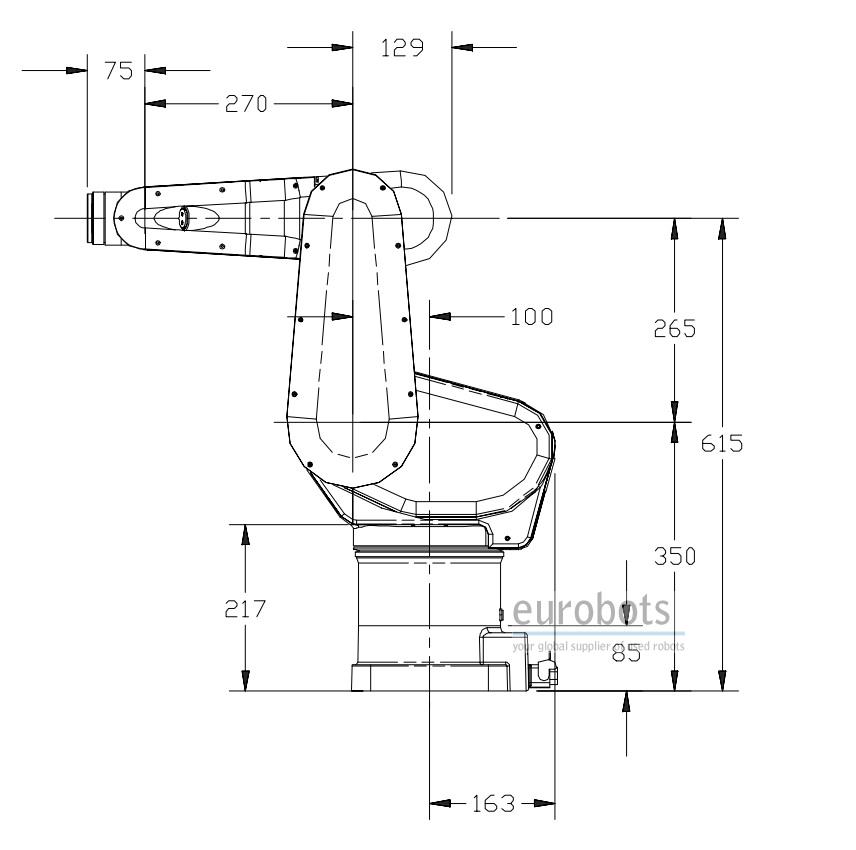

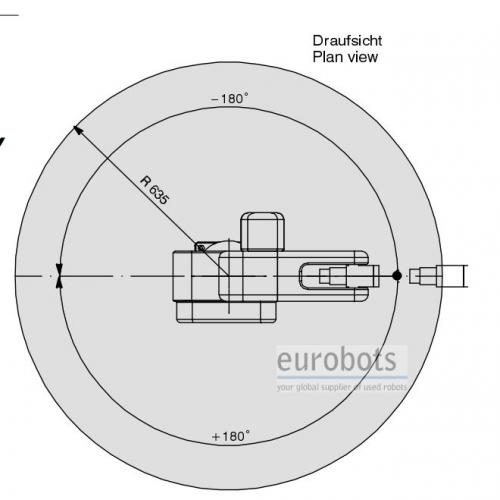

Maximum Reach: 635 mm
Repeatability: ± 0.05 mm

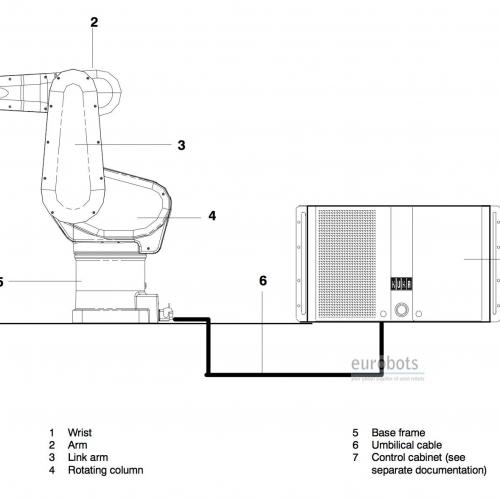

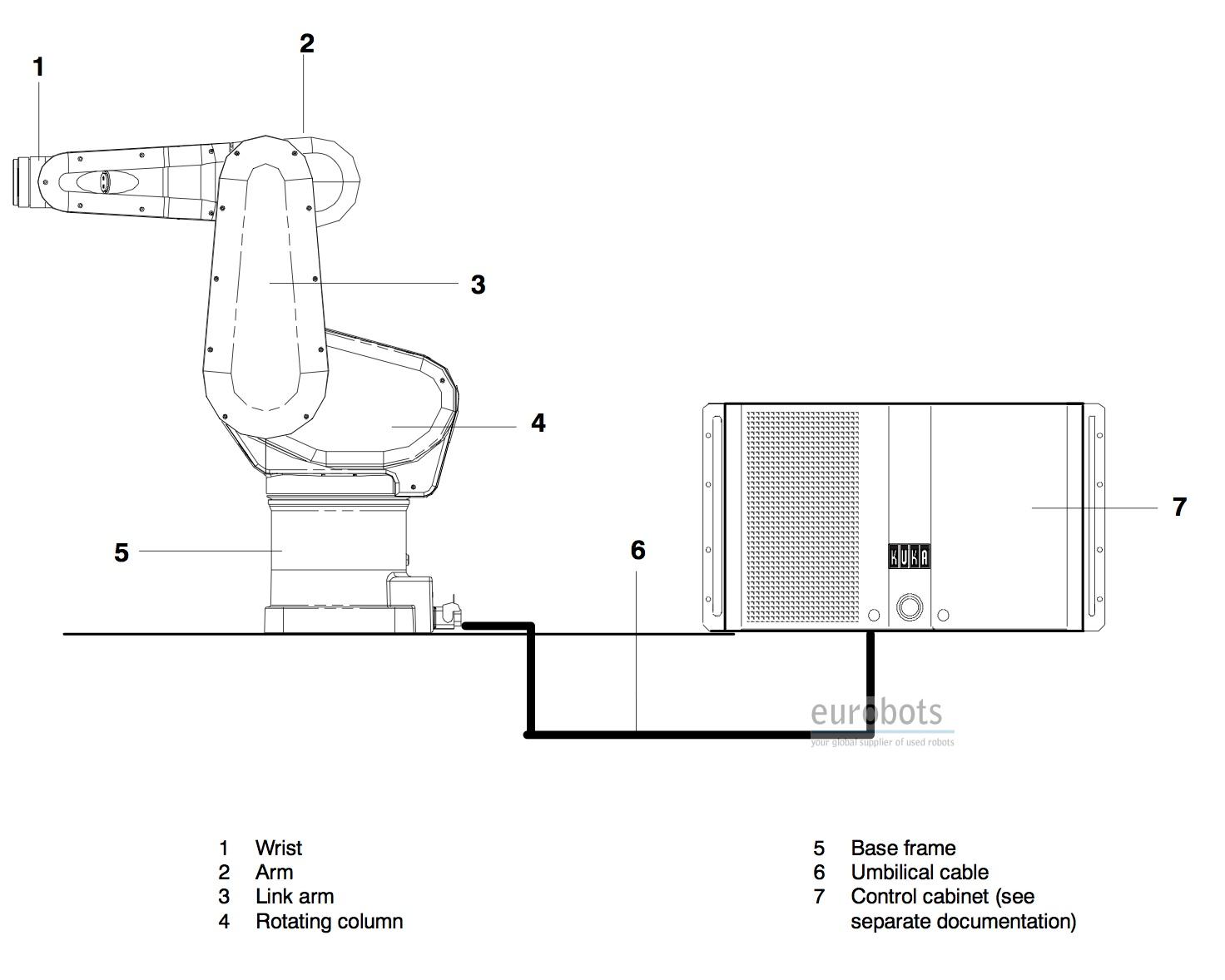

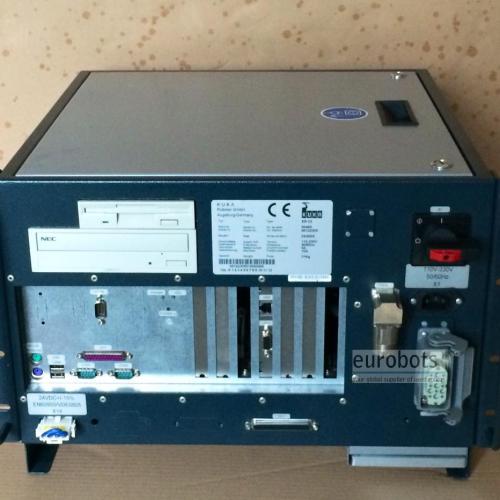

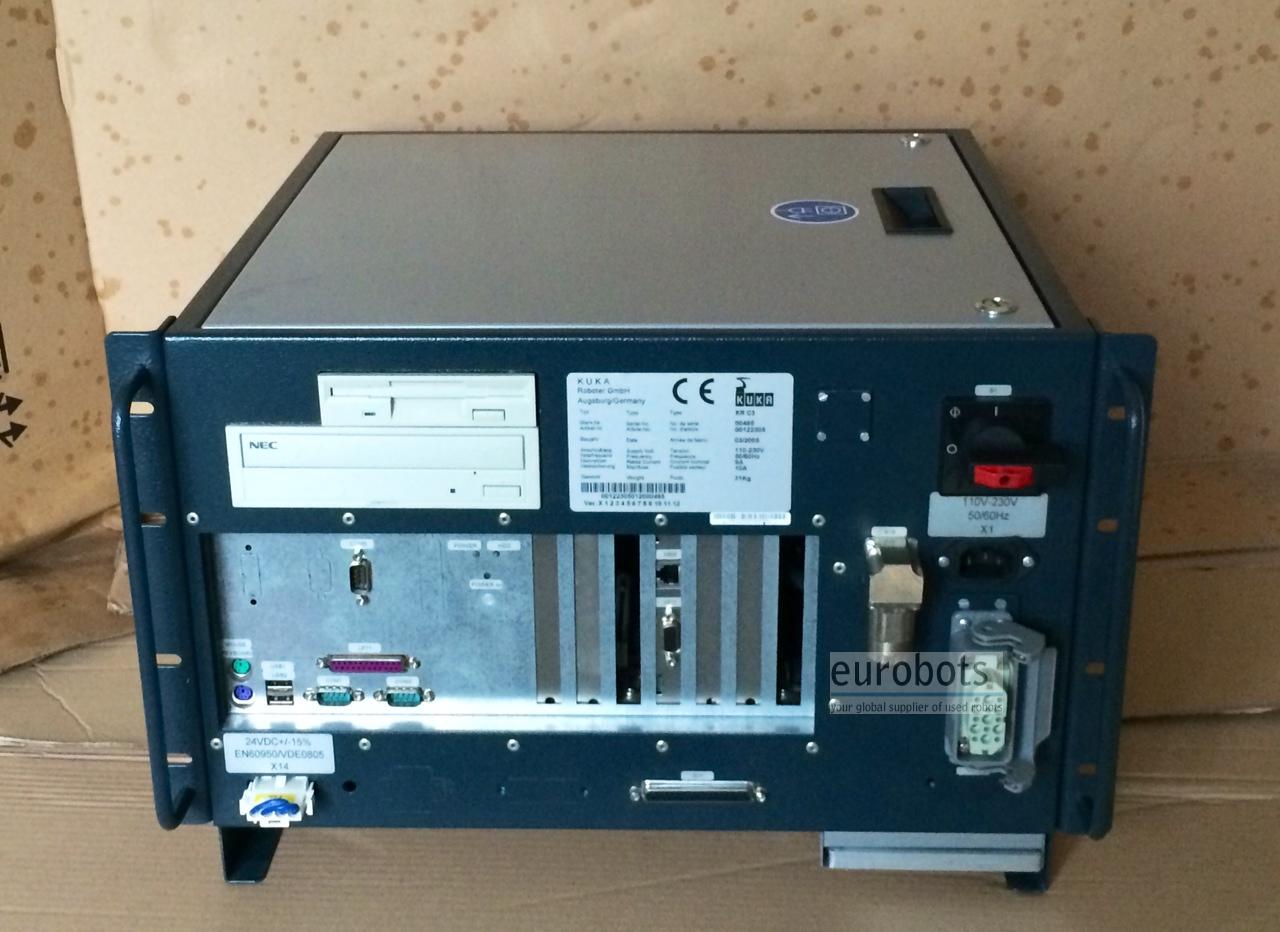

Controller: KR C3

Robot Motion Speed:

Axis 1: 240º/s
Axis 2: 210º/s
Axis 3: 240º/s
Axis 4: 375º/s
Axis 5: 300º/s
Axis 6: 375º/s

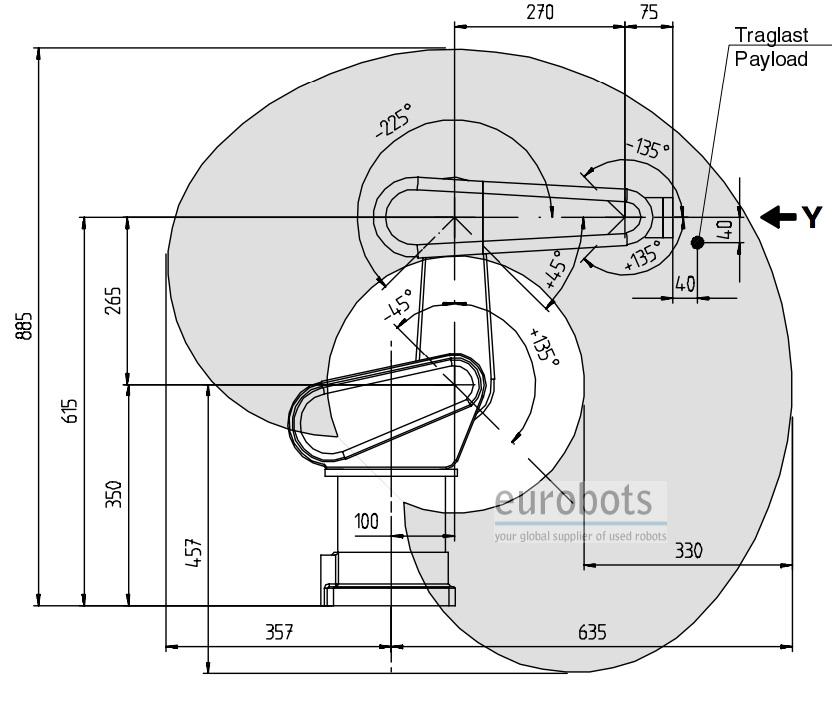

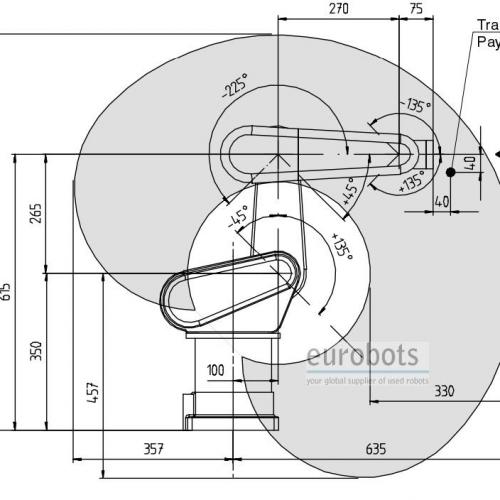

Axis move range in º

Axis 1: ±180º/s
Axis 2: -45º / +135º
Axis 3: -225º / +45º
Axis 4: ±180º/s
Axis 5: ±135º/s
Axis 6: infinitely rotating

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts
