KUKA KR30 with 2 axis servocontrolled positioner and Fronius TPS5000 welding equipment

Awaiting more stock

This 8 axis servocontrolled arc welding robotised system consists of:

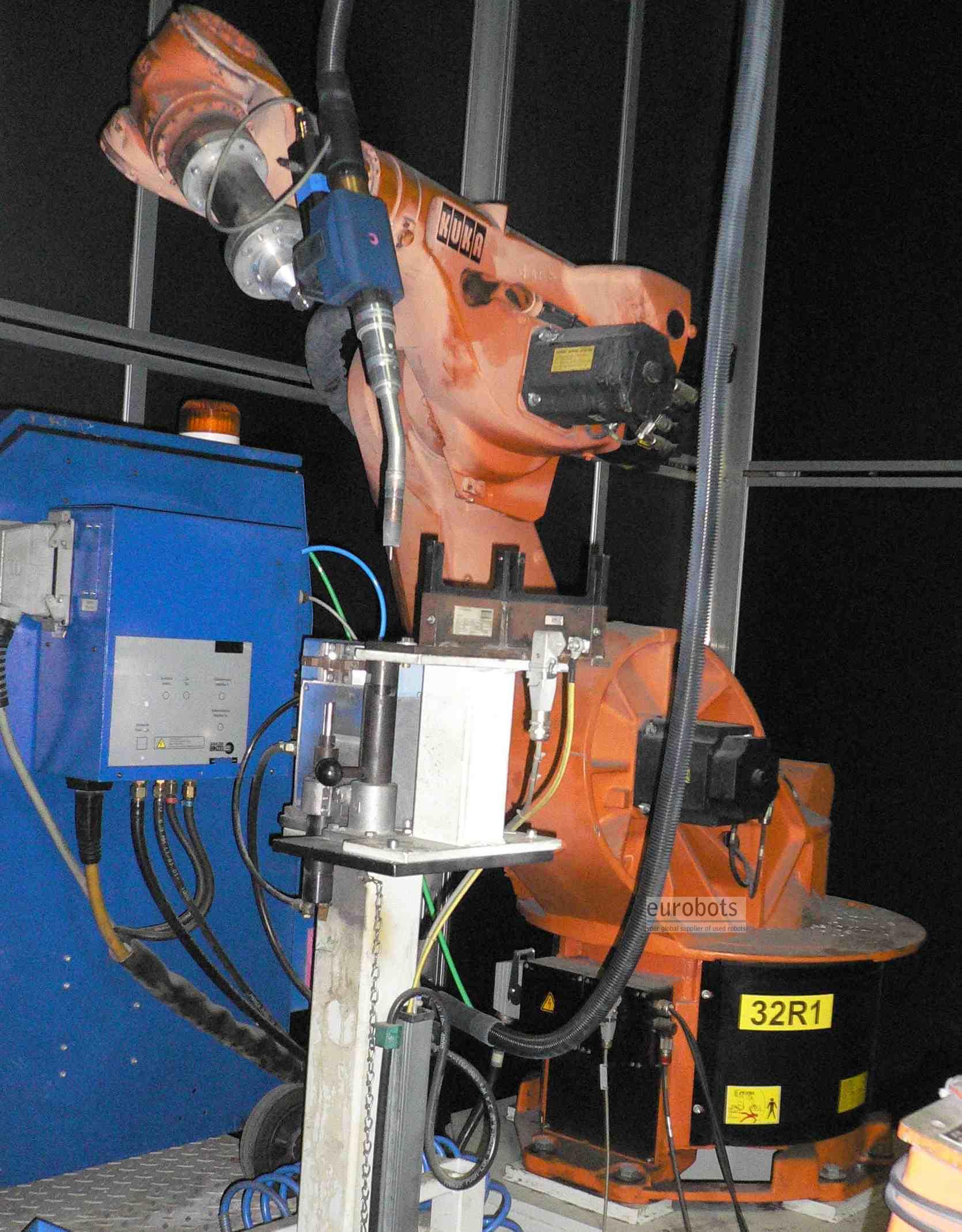

- Kuka KR30/2, 6 axis industrial robot, 2060 mm arm reach and 30 kg payload year 2002 equipped with KRC2 controller, software version 4.1.7

- Fronius TPS5000 ( 500 A) synergic water-cooled power source, welding torch with anticollision system.

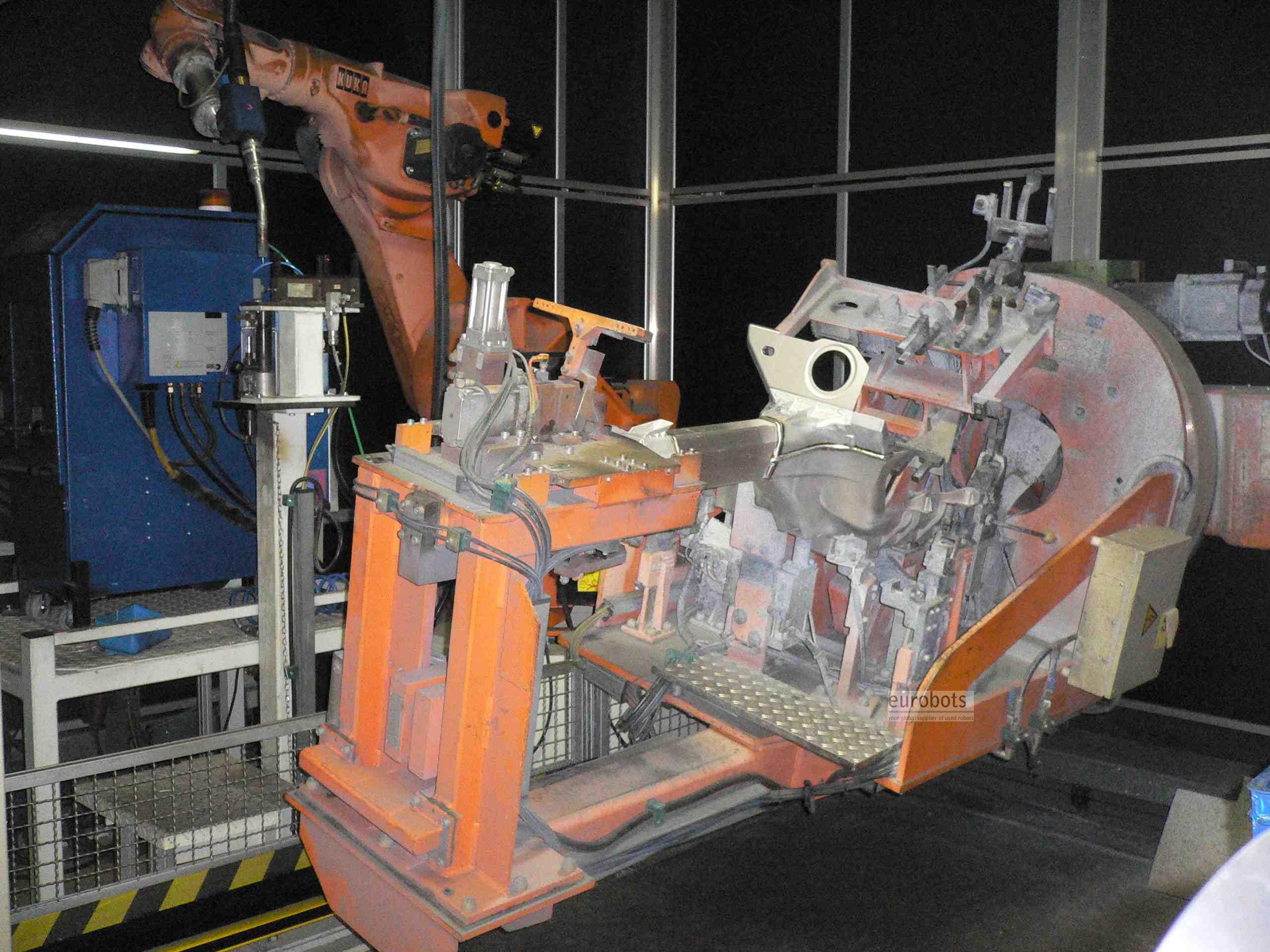

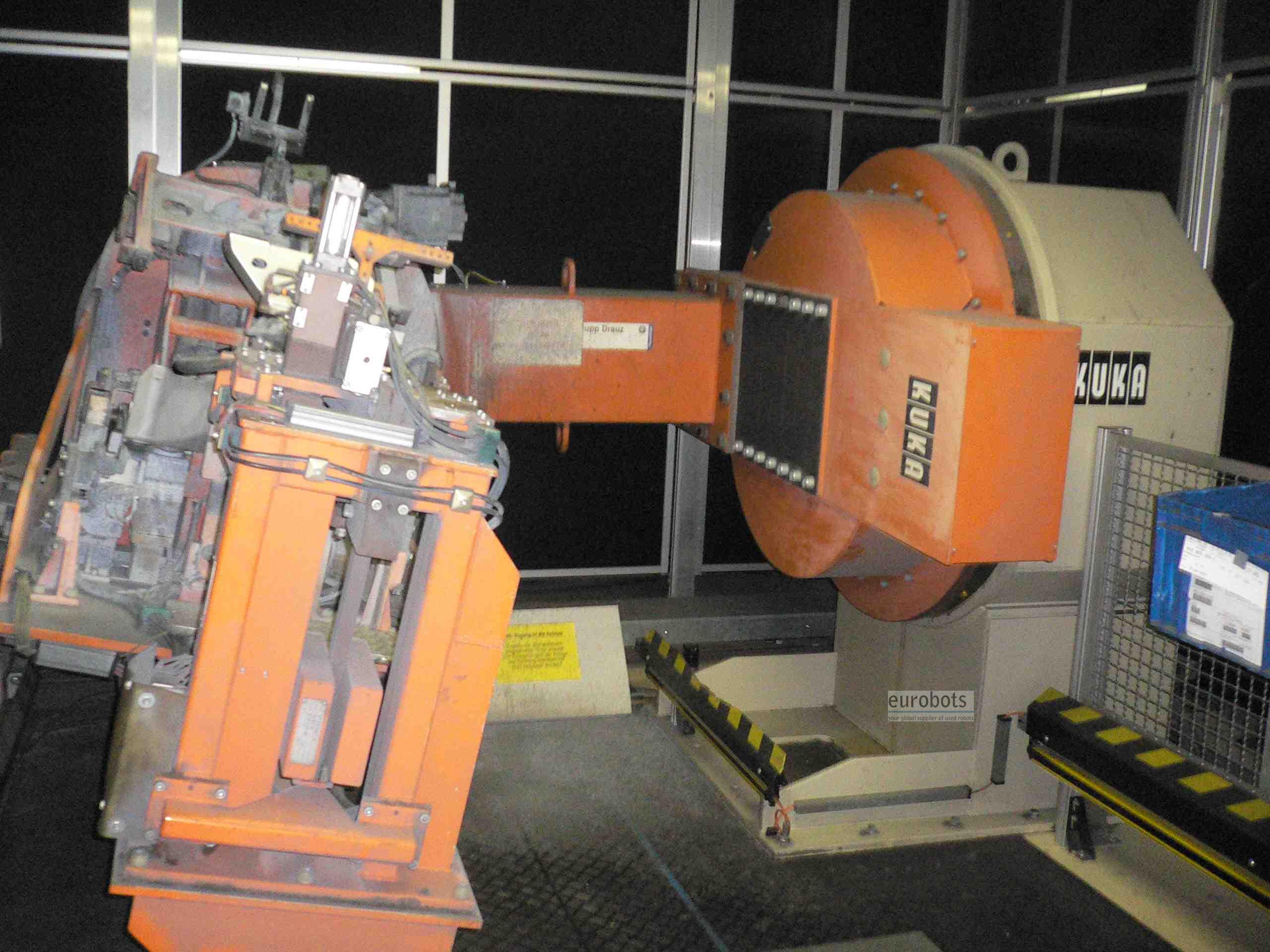

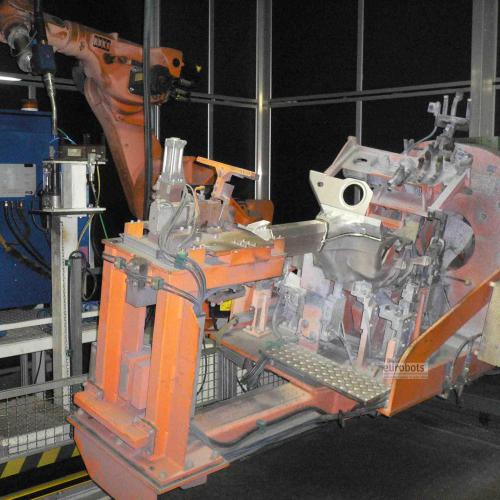

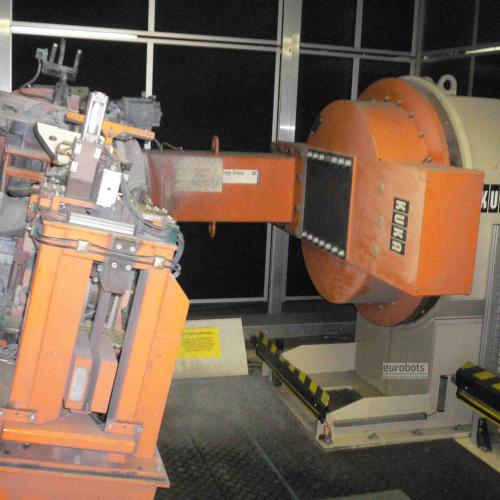

- KUKA two axis positioner, servocontrolled, 1000 kg payload and two meters distance between head and tailstock.

Robot Info:

  • Maximum Load of Robot: 30Kg.
  • Maximum Reach: 2050 mm.
  • Repeatability: 0,15 mm.
  • Controller: KRC2

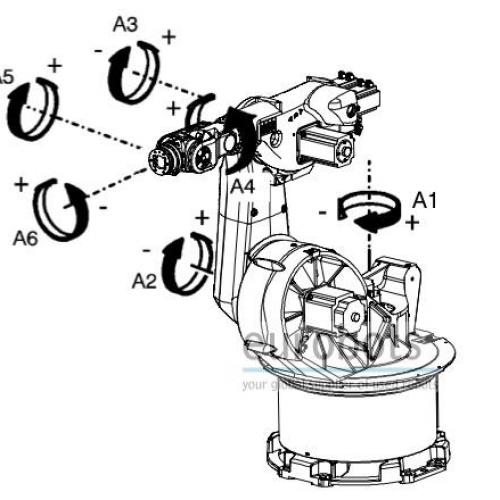

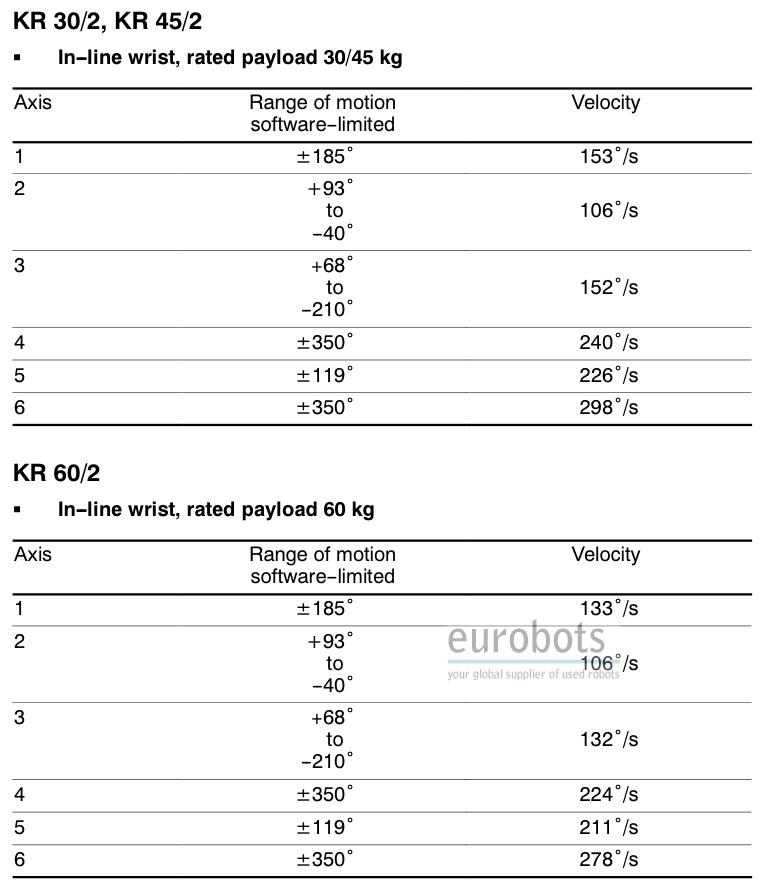

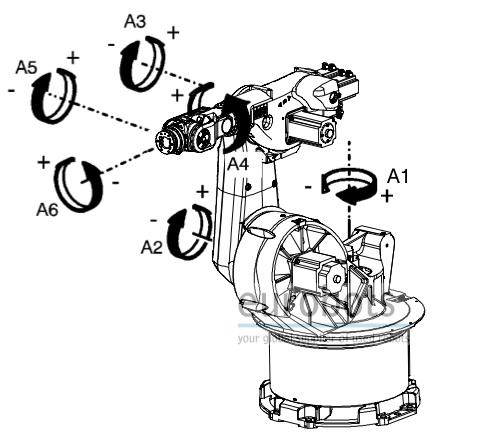

Robot Motion Speed:

  • Axis 1: 140º/s
  • Axis 2: 126º/s
  • Axis 3: 140º/s
  • Axis 4: 260º/s
  • Axis 5: 245º/s
  • Axis 6: 322º/s

Applications

Arc welding

Pictures

Videos

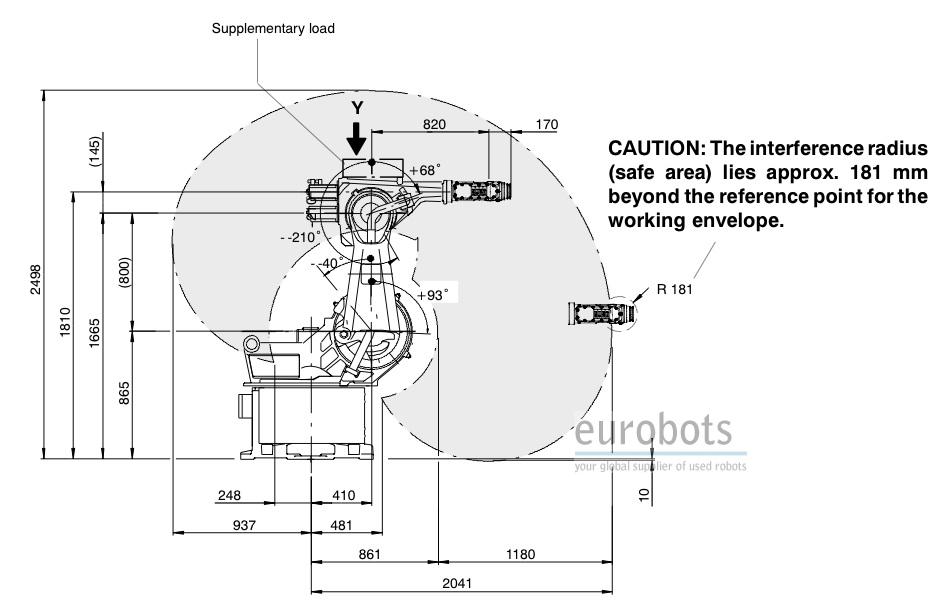

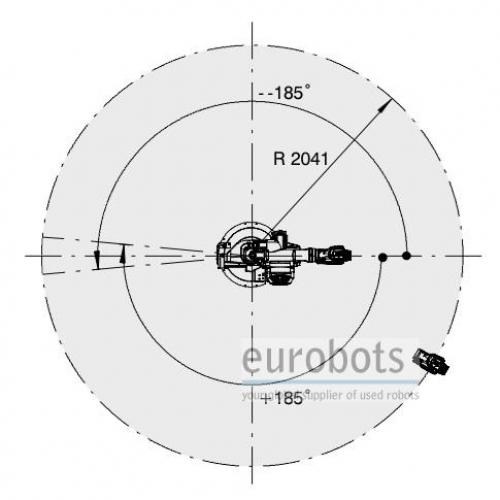

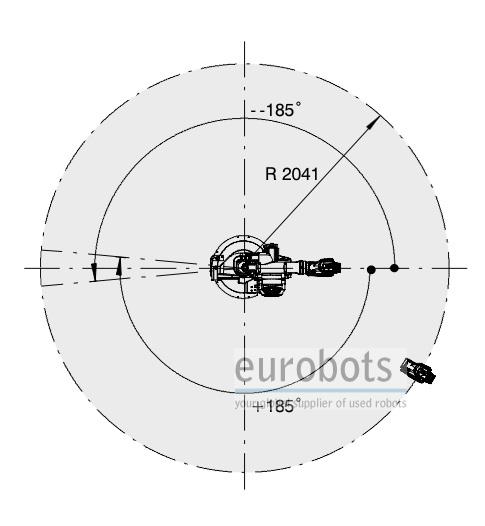

Diagrams
