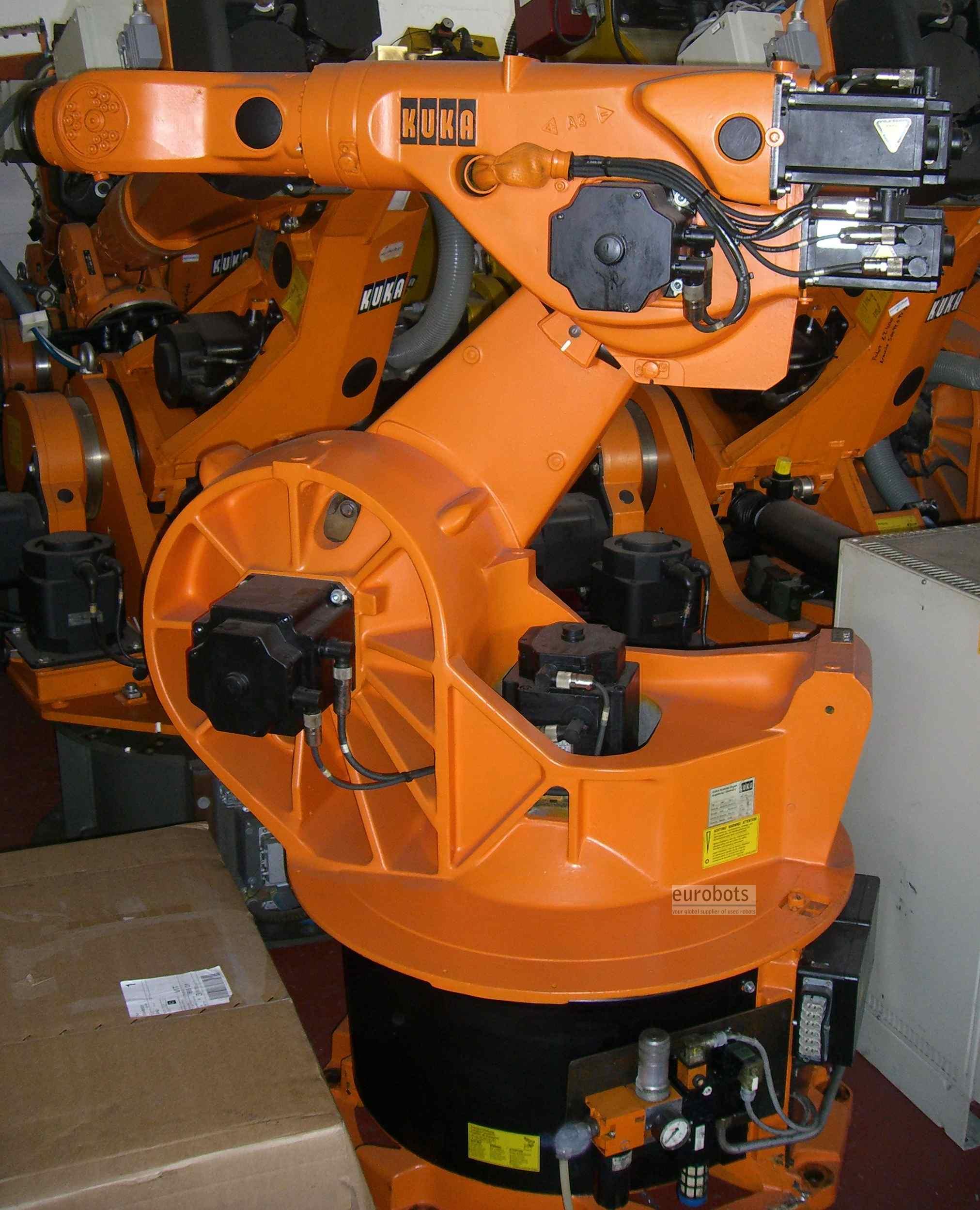

KUKA VKR30-2

Awaiting more stock

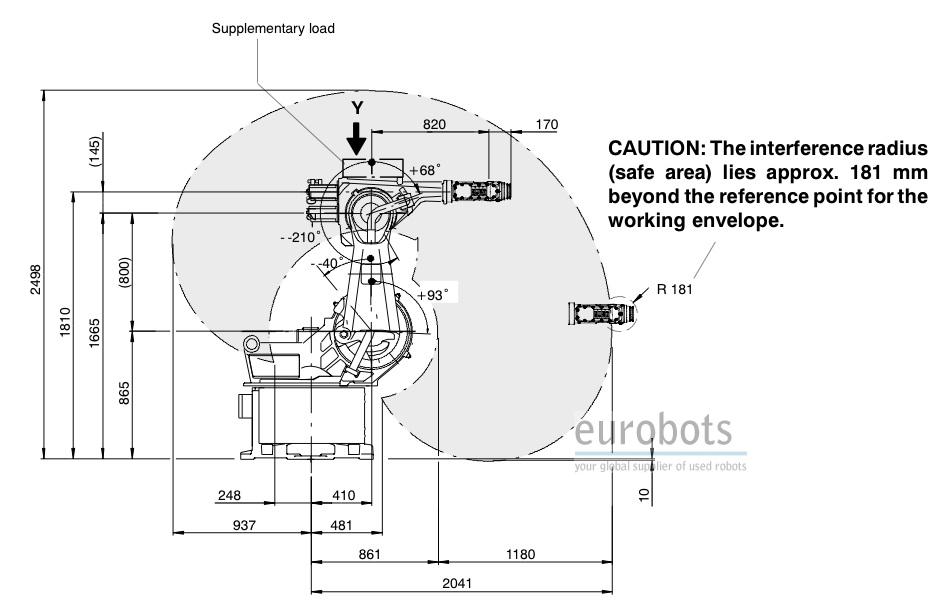

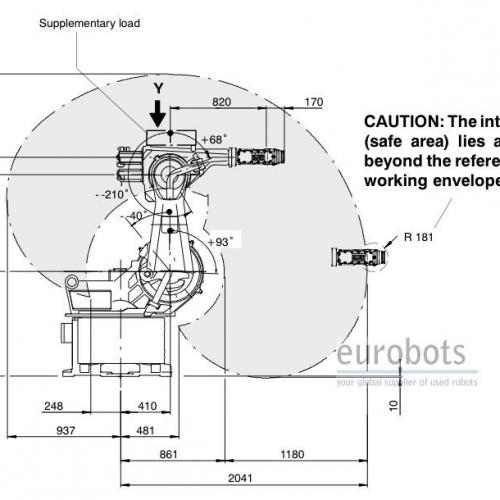

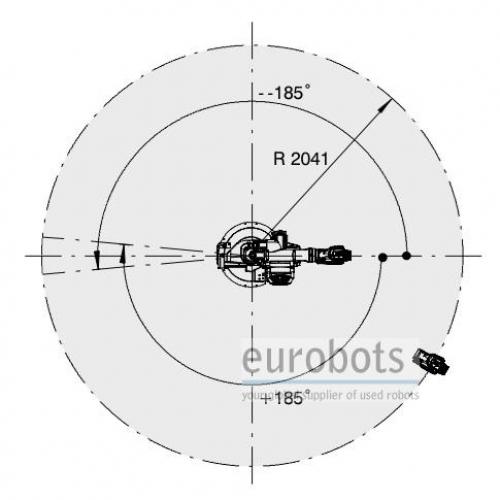

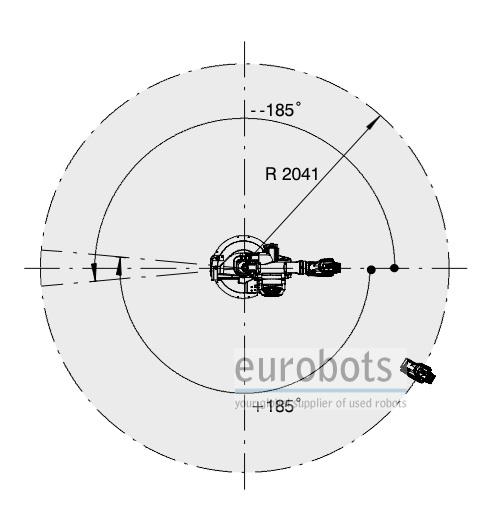

The KR30/2 robot is a masterful mover with a fist-shaped work envelope, and is ideal for the
implementation of cost-effective, space-saving systems.

Equipped with VKRC2 VW powerful controller, PC based with Microsoft Windows interface.

Manufacturing year: 2002

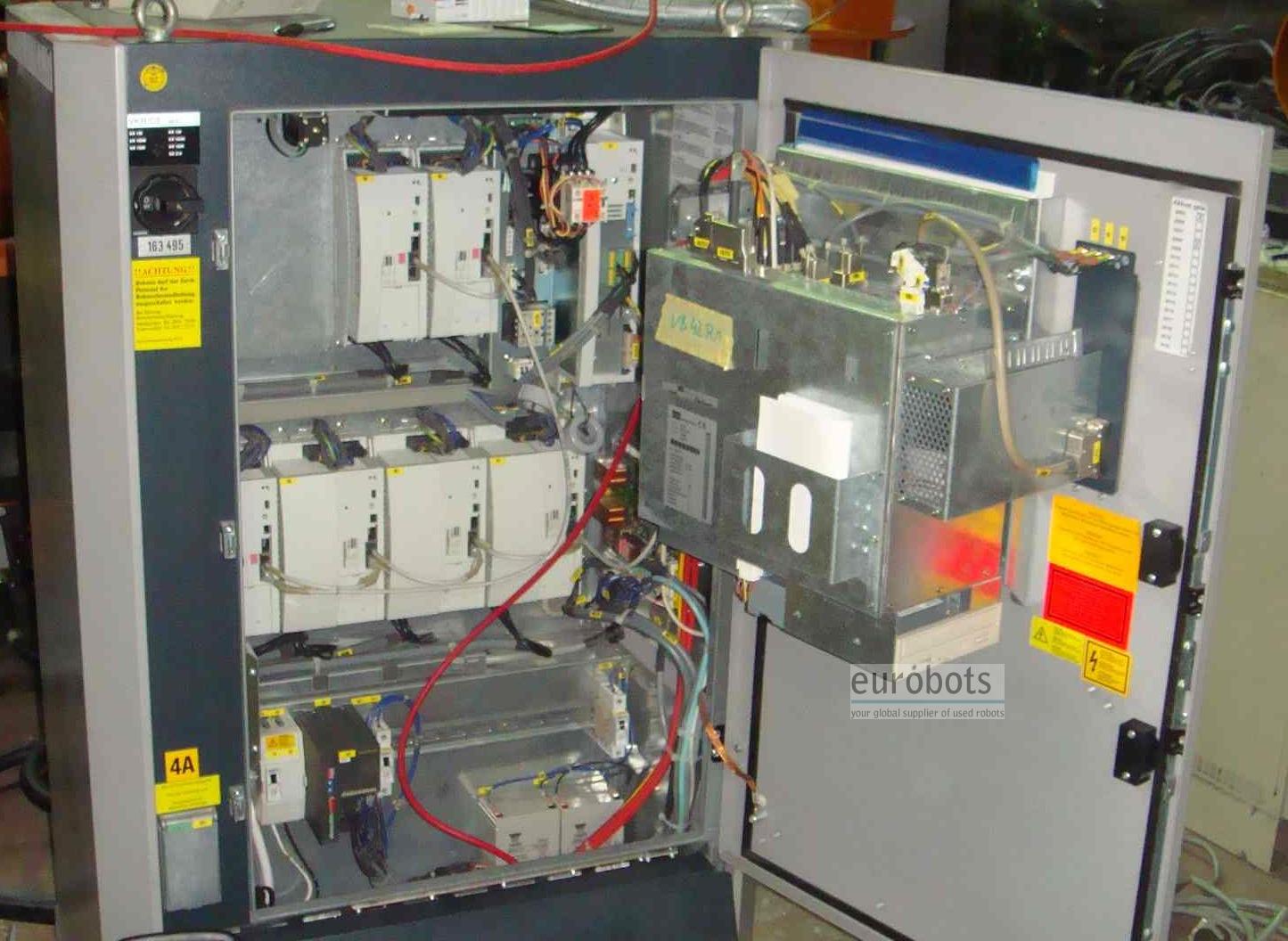

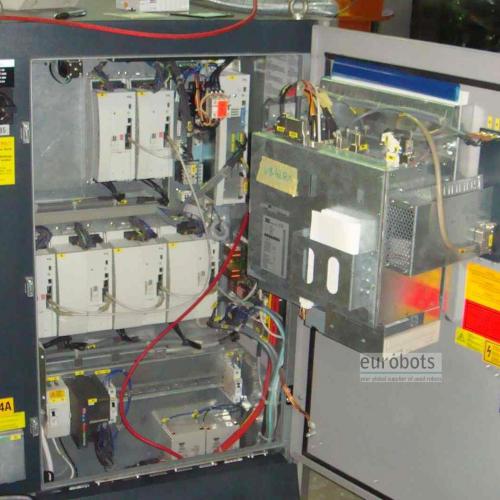

The KR C2 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.

KR C2 features:

  • Open, network-capable PC technology
  • 2 free slots for external axis
  • DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
  • Motion profile function for optimal interaction between the individual robot motors and their velocity
  • Floppy disk and CD-ROM drives for data backup
  • Facilities such as remote diagnosis via the Internet
  • Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
  • Compact control cabinet
  • Ergonomic KUKA Control Panel (KCP)

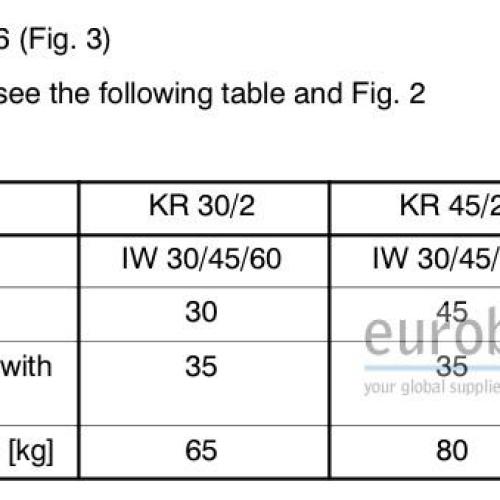

Robot Info:

  • Maximum Load of Robot: 30Kg.
  • Maximum Reach: 2050 mm.
  • Repeatability: 0,15 mm.
  • Controller: VKRC2

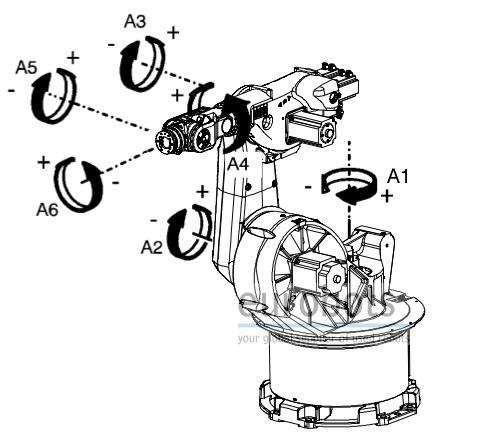

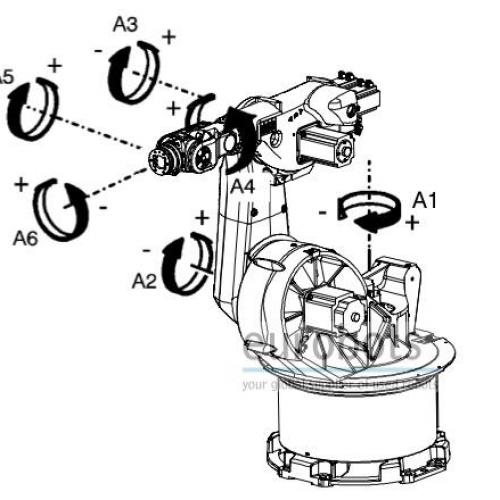

Robot Motion Speed:

  • Axis 1: 140º/seg
  • Axis 2: 126º/seg
  • Axis 3: 140º/seg
  • Axis 4: 260º/seg
  • Axis 5: 245º/seg
  • Axis 6: 322º/seg

Robot Applications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding

Applications

Arc welding , Loading and unloading of parts , Machining , Handling of parts , Polishing , Glueing - Adhesive bonding
