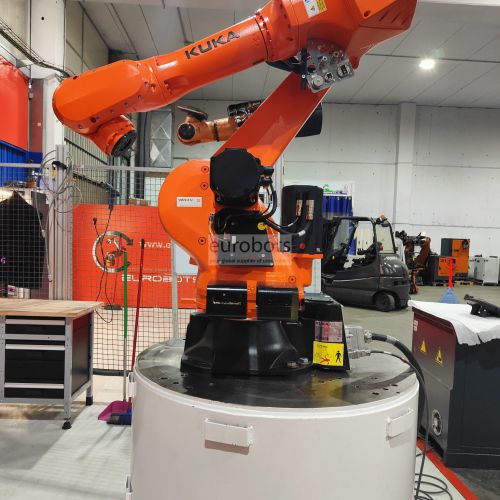

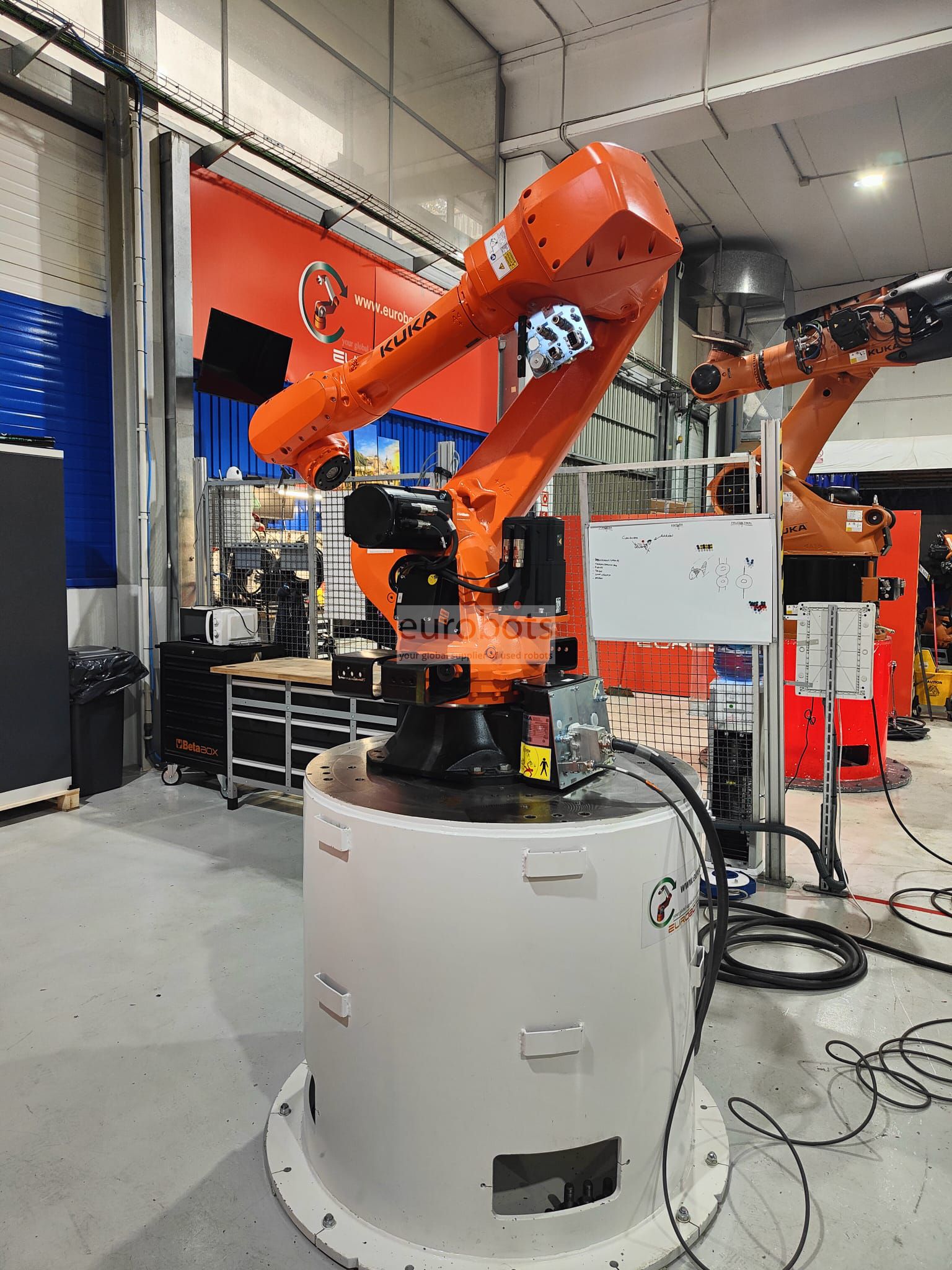

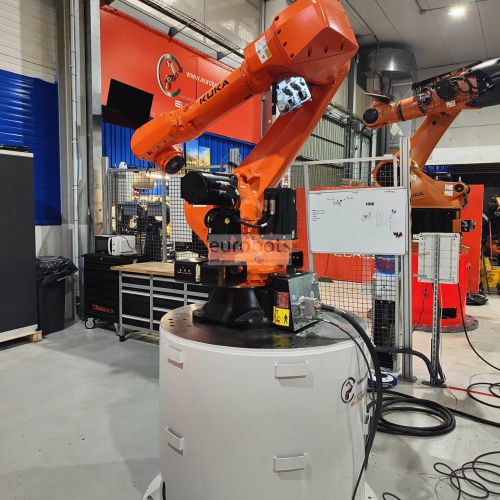

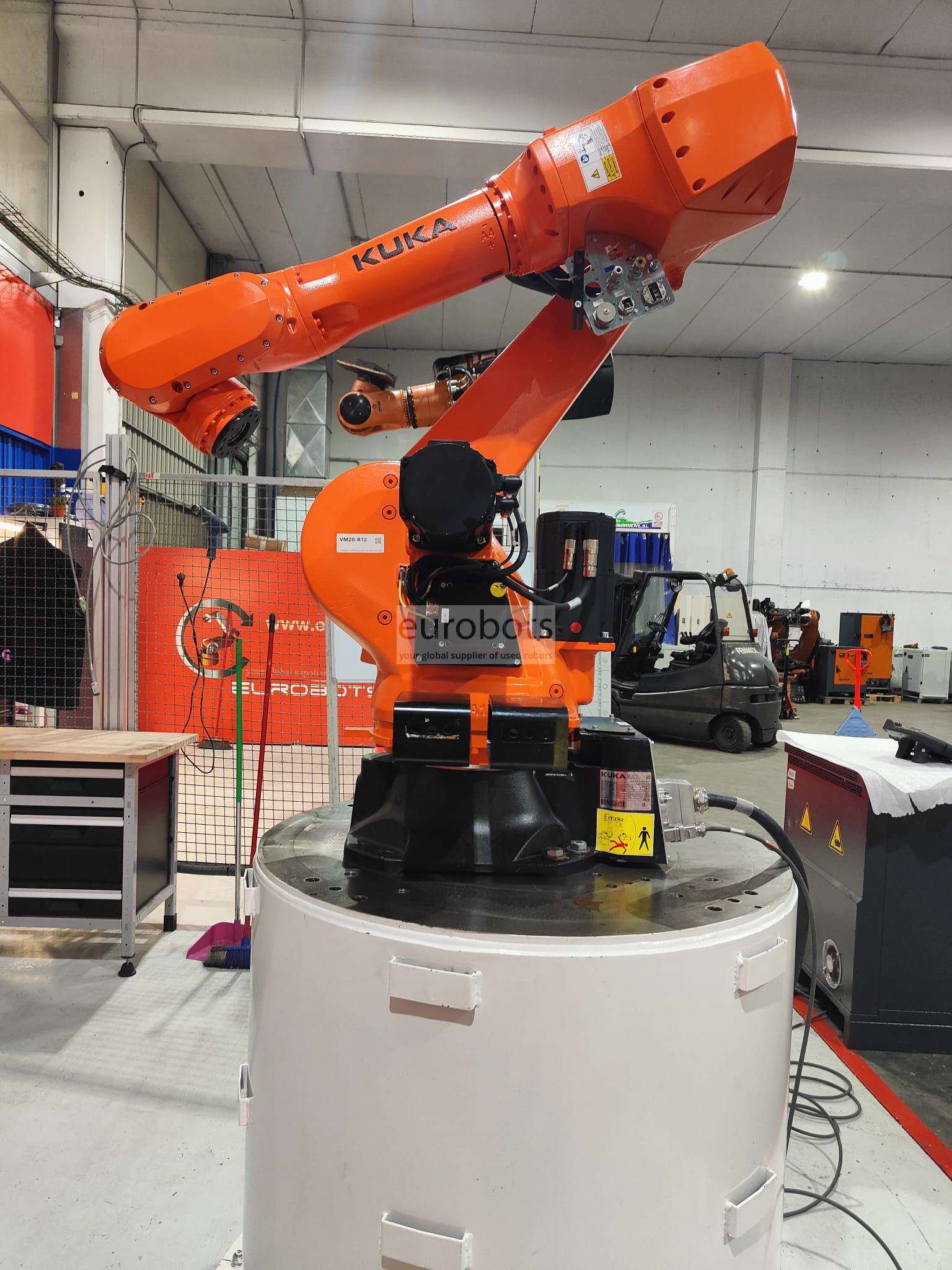

KUKA KR 30 R2100/SEL IONTEC

Awaiting more stock

The KUKA KR 30 R2100 is a 6-axis industrial robot with a compact design, with a wide operating range providing efficient use of space, its arm has IP65 degree of protection, that is, it is waterproof and dustproof, it adapts easily to any process or service, requires 50% less spare parts, fast learning with proven KUKA technology significantly simplifies commissioning; It is one of the robots with the highest productive level. It can be installed at an angle, ceiling, floor, wall.

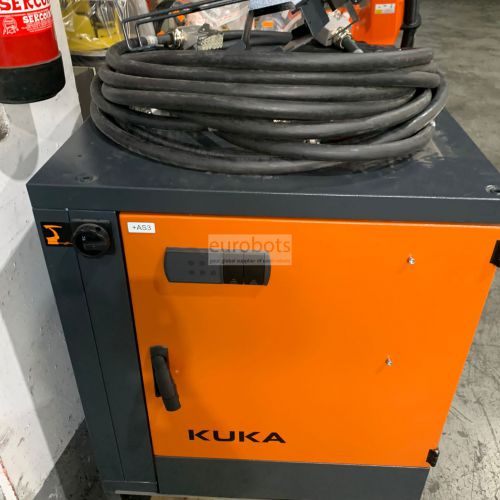

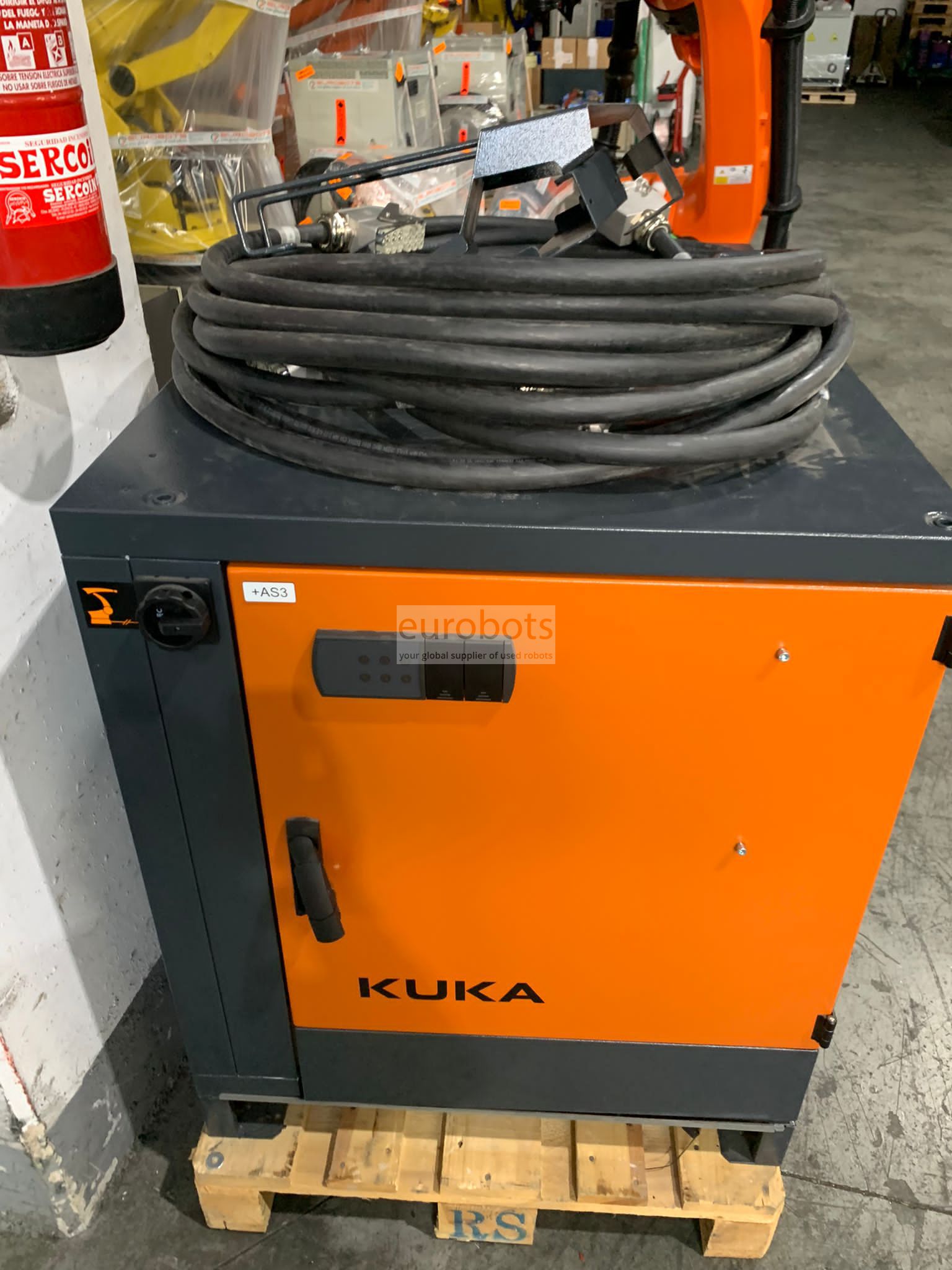

KR C4 - Kuka's latest breakthrough

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.


KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability

Main specifications

Maximum Load of Robot: 30 kg
Number of axis: 6
Maximum reach: 2100 mm
Repeatability: ± 0.05
Controller:  KR C4




Applications

Arc welding , Press tending , Palletising , Painting , Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts , Laser cutting , Glueing - Adhesive bonding , Advanced Manufacturing , Education

Pictures

Videos

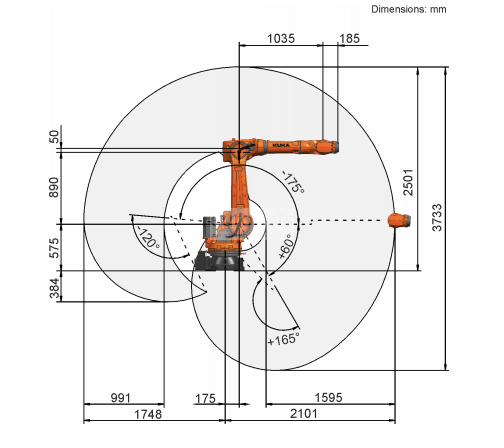

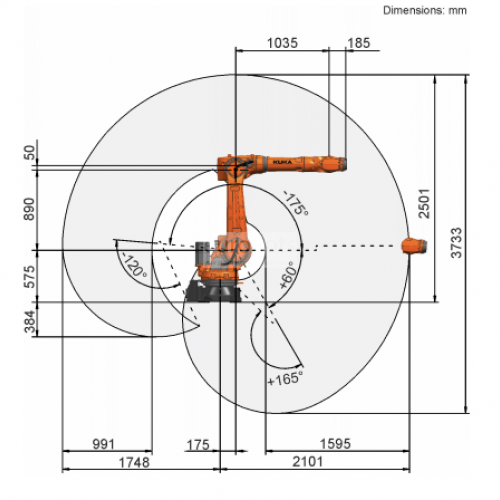

Diagrams
