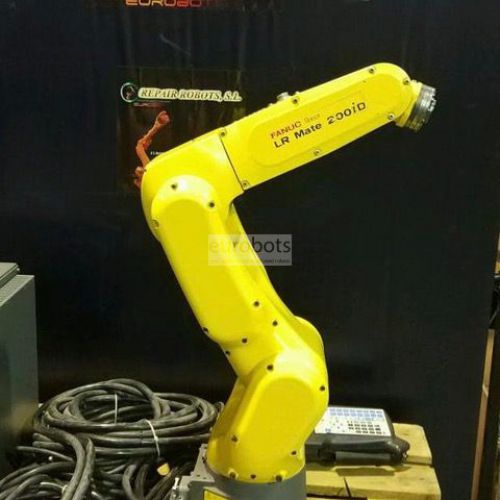

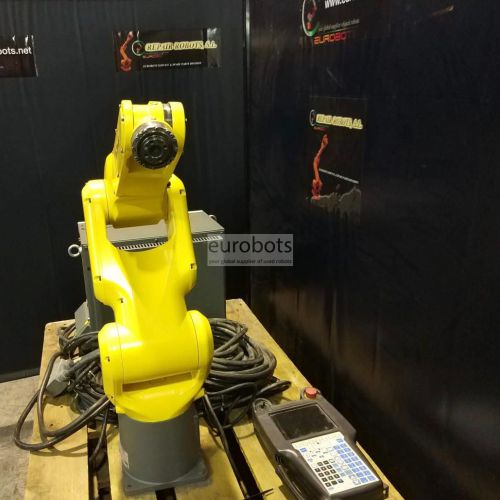

Fanuc LR Mate 200iD R30iB Plus

Awaiting more stock

Industrial Robot of the LR Mate series introduces the LR Mate 200iD multipurpose robot ideal for several industrial applications of high productivity and versatility handling short cycle times with very advanced servo technology and high rigidity arm, can work in narrow or difficult areas access. Degree of protection IP67 standard and outstanding quality FANUC.

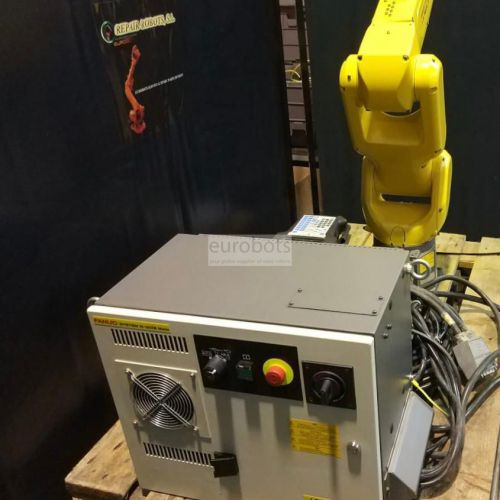

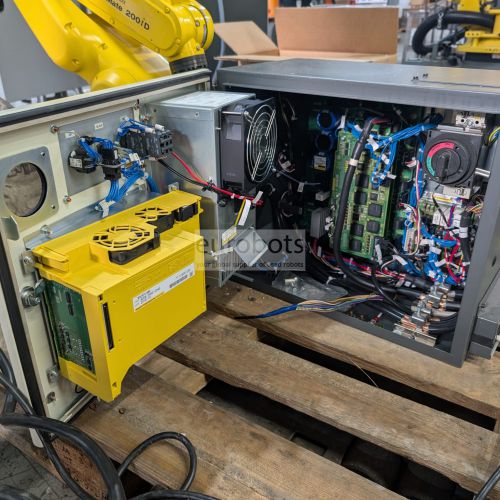

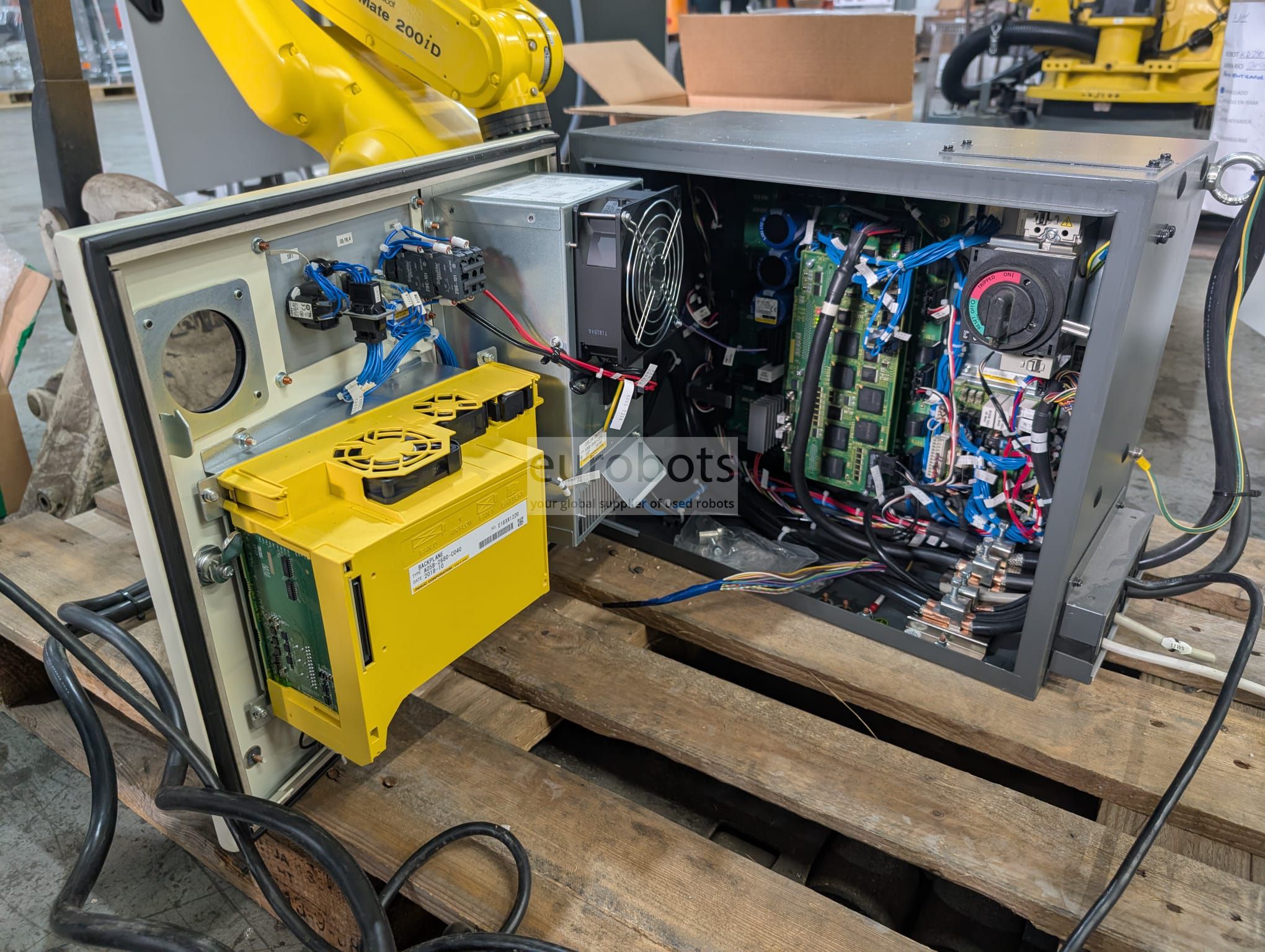

R-30iB Plus control system
Latest generation of efficient, compact and stackable FANUC advanced technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes power to reduce power consumption, high performance in cycle times with greater speed and accuracy.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With intuitive iPendant Touch, more intelligent and easy to use.
Main specifications

Maximum Load of Robot: 7 Kg
Number of axis: 6
Maximum horizontal reach: 717 mm
Repeatability: ± 0.018 mm Based on
Controller: R-30iB Plus

Motion range (°)

Axis 1: 360°
Axis 2: 245°
Axis 3: 420°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°

Maximum speed (°/s)

Axis 1: 450°/s
Axis 2: 380°/s
Axis 3: 520°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s

Applications

Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts
