Scara Robots - Special Offer Epson LS6 Robots SCARA 600mm

Awaiting more stock

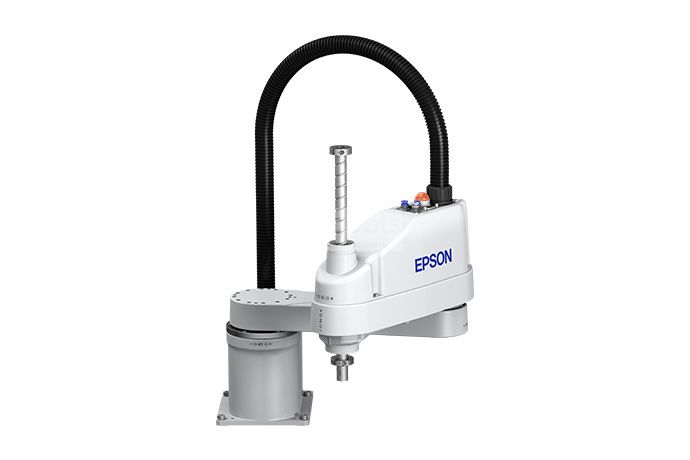

Series SCARA robots Epson LS6 is known for its high output, wide range, high payload, handles high speeds with maximum accuracy, This series is a more profitable of Epson scara without sacrificing performance. handles payloads from 3 kg to 20 kg and cycle times that start at 0.38 seconds, this is a compact, high performance and low cost automation solution that offers great reliability.

The Epson series LS6 SCARA robot has an arm length of 600 mm and a cycle of up to 0.42 seconds, with a simple and reliable structure this robot offers greater performance with an optimal range, allowing the client to acquire it at an exceptional price, being suitable for assembly and automation applications of industrial processes.

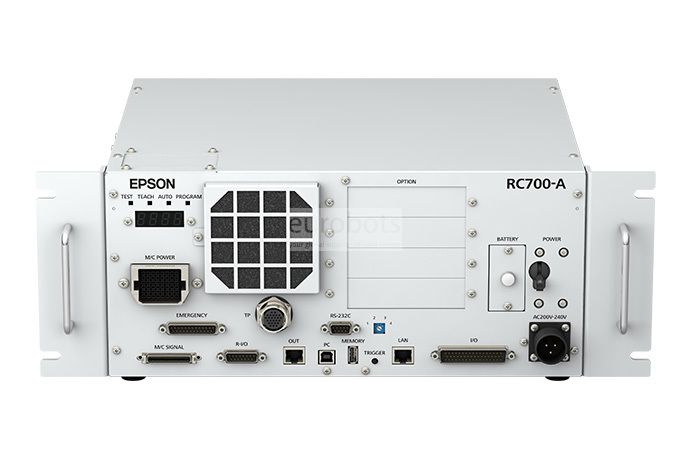

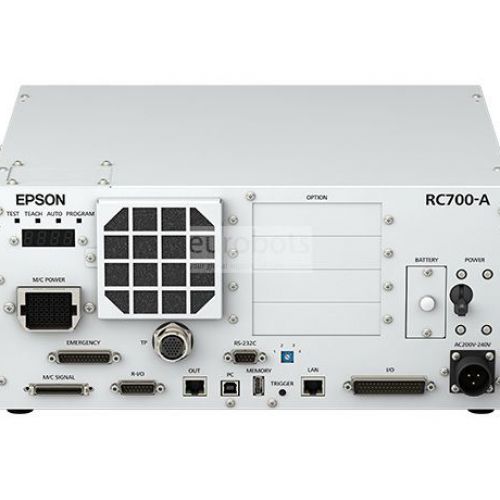

Equipped with the powerful and simple RC700A controller

leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 6 kg
  • Maximum Reach: 600 mm
  • Mounting type: Tabletop
  • Controller: RC700A

Repeatability:

  • Joint 1,2: ±0.02 mm
  • Joint 3: ±0.01 mm
  • Joint 4: ±0.01°

Robot Motion Speed:

  • Joints 1,2: 6800 mm/s
  • Joint 3: 1100 mm/s
  • Joint 4: 2000°/s

Robot motion range:

  • Joint 1: ±132°
  • Joint 2: ±150°
  • Joint 3 stnd: 200 mm
  • Joint 3 Cleanroom model: 170 mm
  • Joint 4: ±360°

Robot Applications:

  • Mechanical or electrical assembly
  • Pick and place
  • Kitting
  • Dispensing

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts
