Scara Robots - Special Offer Epson RS3 SCARA Robots 350mm

Awaiting more stock

The series of robots Epson RS3 SCARA is characterized by maximizing the use of the work envelope, thanks to its design of workspace, where there is no dead space in the center of the work envelope, they offer flexibility with more than 360 degrees of rotation of axes, space saving, easy installation in compact cells ideal for applications in the industry automation of laboratories, heavy processes handling parts and in large quantities.

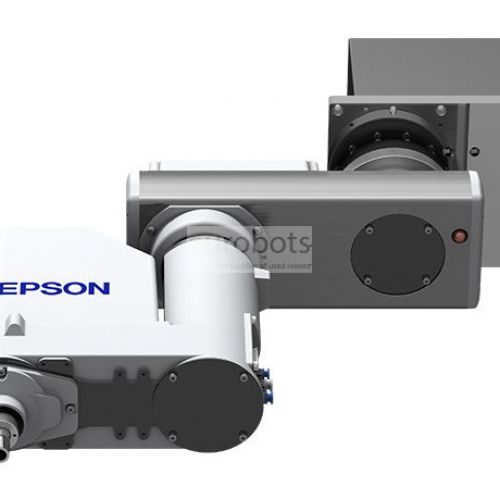

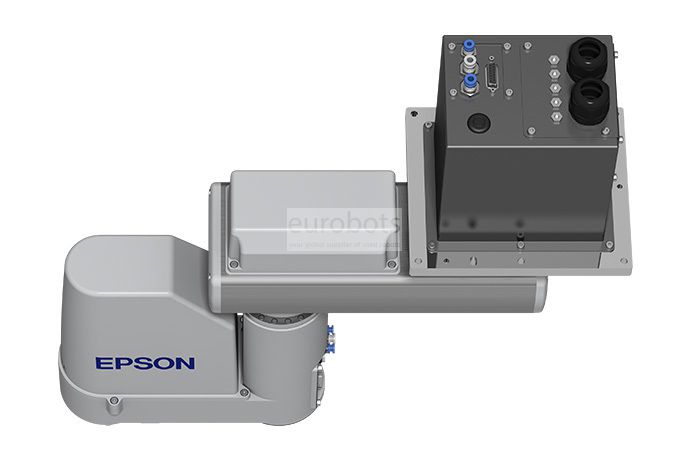

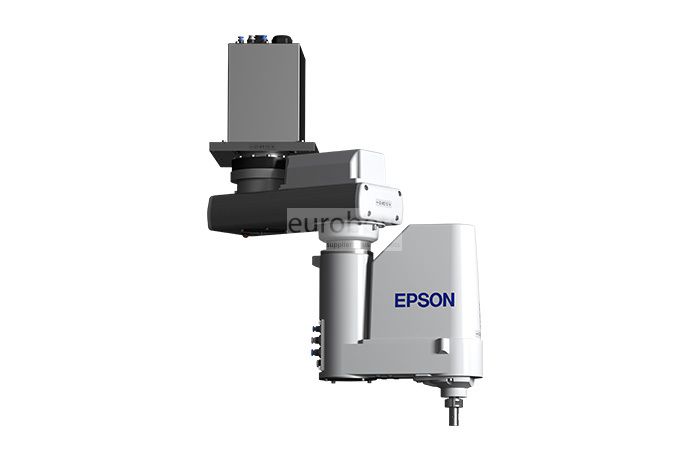

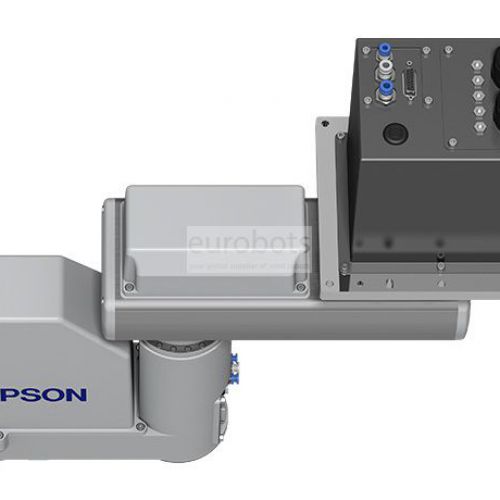

Epson RS3 SCARA with range of motion 350mm Robot with zero footprint, wide envelope of work, with cycle times of 0.34 seconds, servo technology PowerDrive provides the maximum performance of movement, maximum speed with greater cycle performance, comes in the Configured version of ISO3 Clean / ESD, ideal for semiconductor and medical industries.

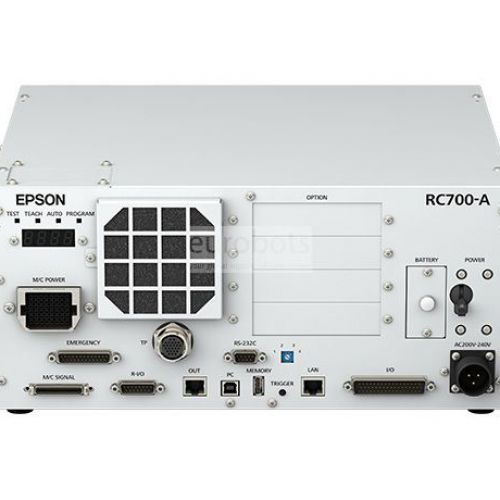

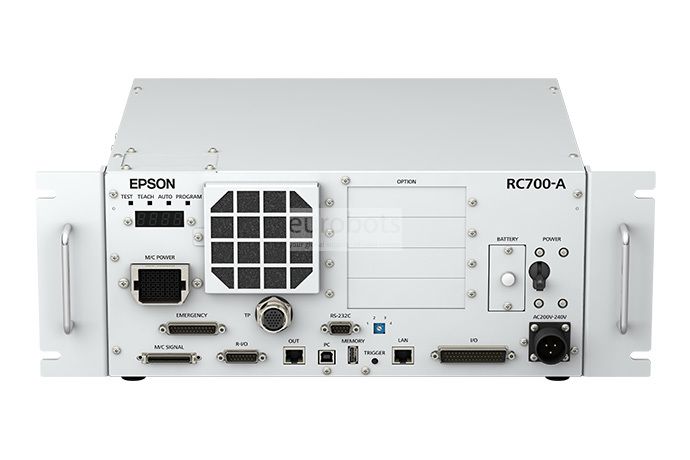

Equipped with the powerful and simple RC700A controller

leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 3 kg
  • Maximum Reach: 350 mm
  • Mounting type: Ceiling
  • Controller: RC700A

Repeatability:

  • Joint 1,2: ±0.01 mm
  • Joint 3: ±0.01 mm
  • Joint 4: ±0.01 deg

Robot Motion Speed:

  • Joints 1,2:  6237 mm/s
  • Joint 3: 1100 mm/s
  • Joint 4: 2600 deg/s

Robot motion range:

  • Joint 1: ±225 deg
  • Joint 2: ±225 deg
  • Joint 3 stnd: 130 mm
  • Joint 3 Cleanroom model: 100 mm
  • Joint 4: ±720 deg

Robot Applications:

  • Automotive
  • Medical industries
  • Semi Conductor
  • Food industries
  • Pharmaceutical

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts
