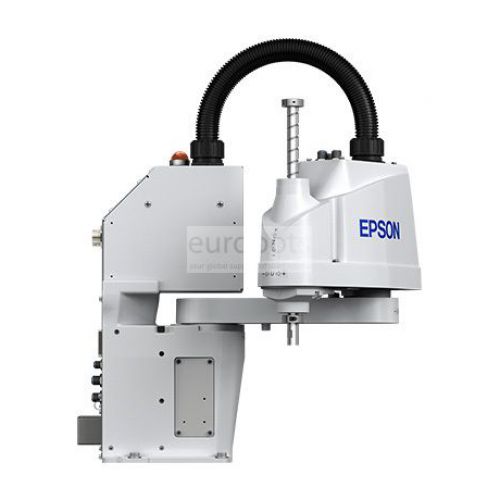

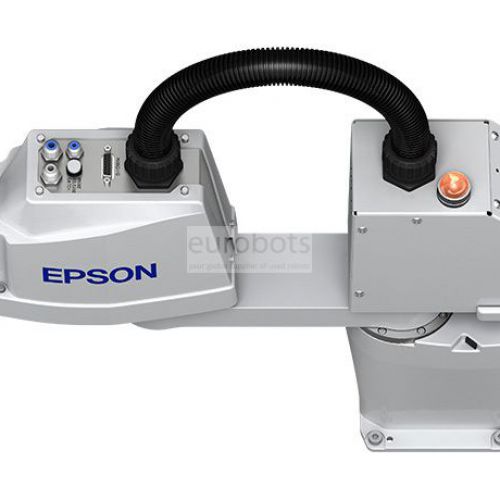

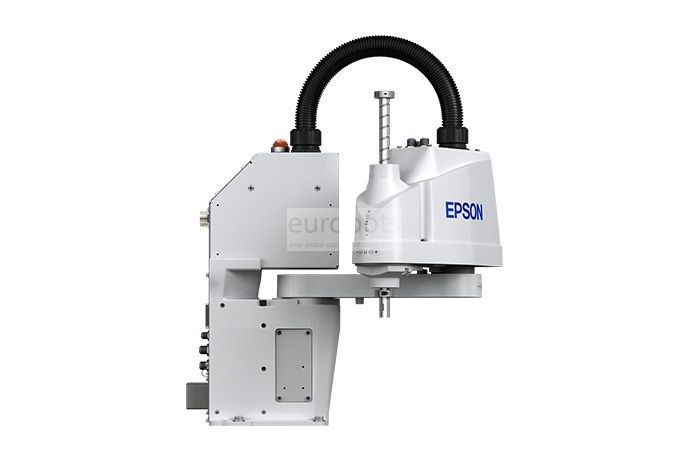

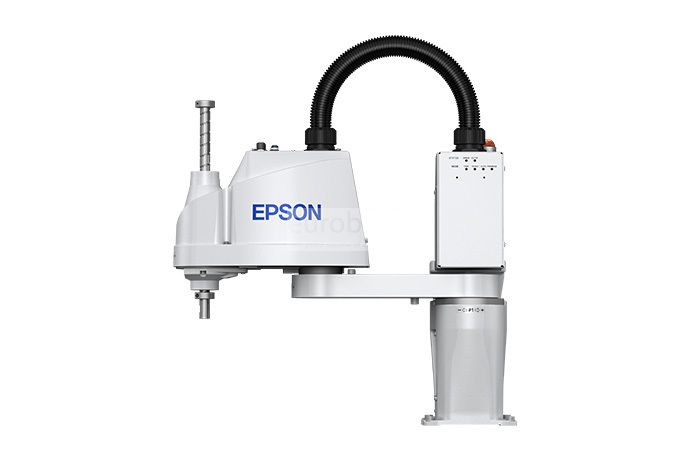

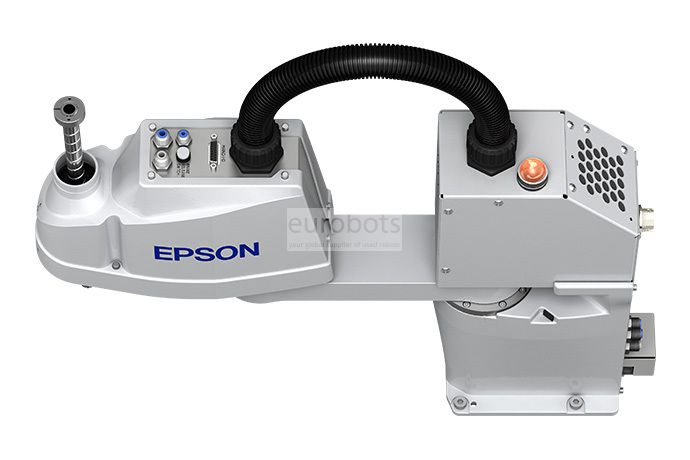

Scara Robots - Special Offer Epson Synthis T3 All-in-One SCARA

Awaiting more stock

The series of robots Epson Synthis T3 SCARA All-in-One is designed as a solution of space saving and low cost thanks to the built-in controller, this series is characterized by being very compact and versatile, multiple connection options located in the end of the arm, repetition capacity of only 0.02 mm, easy installation and configuration and custom interface, 0.02 mm repeatability, this system offers efficiency as it adapts to any automation process saving time and money such as pick-and -place, parts inspection, assembly, Electronics, Pharmaceutical etc.

Robot Info:

  • Maximum Load of Robot: 3 kg
  • Maximum Reach: 400 mm
  • Mounting type: Tabletop

Repeatability:

  • Joint 1,2: ±0.02 mm
  • Joint 3: ±0.02 mm
  • Joint 4: ±0.02 deg

Robot motion range:

  • Joint 1: ±132 deg
  • Joint 2: ±141 deg
  • Joint 3: 150 mm
  • Joint 4: ±360 deg

Robot Applications:

  • Pick-and-place
  • Parts inspection
  • Assembly
  • Automotive
  • Electronics
  • Consumer products
  • Industrial products
  • Medical
  • Telecommunications
  • Pharmacist

Applications

Loading and unloading of parts , Handling of parts , Measurement , Assembly of parts
