Other Robots MITSUBISHI MELFA RV-7FRLL

Awaiting more stock

The MELFA FR series of Mitsubishi Electric 6-axis robots with an optimized arm range with the ability to cover a large workspace together with a higher payload, allows a simple and quick installation, intuitive programming with several connectivity alternatives.

The Series RV-7FRLL model with a maximum range of 1503 mm for a greater range of operation. It provides an extremely fast and precise high strength operation. type of vertical multiple articulation with a repeatability of -0.06 to +0.06 and servo motor AC system.

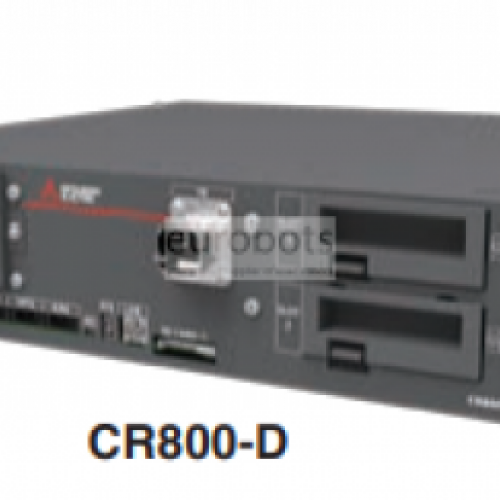

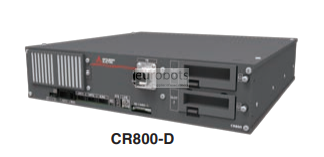

Equipped with CR800-D or CR800-R controllers.

This controller has an open structure where you can place vertical and horizontal positions, multiple CPU configuration that optimizes communication with the equipment supplying specific information, is compatible with MELSEC iQ-R.

Robot general specifications

  • Maximum Load of Robot: 7 Kg
  • Maximum Reach: 1503 mm
  • Repeatability: ±0.06
  • Controller: CR800-D, CR800-R

Robot Motion Speed

  • Axis 1: 234°/s
  • Axis 2: 164°/s
  • Axis 3: 219°/s
  • Axis 4: 375°/s
  • Axis 5: 450°/s
  • Axis 6: 720°/s

Motion range /°

  • Axis 1: 380 (-190 a +190)
  • Axis 2: 240 (-90 a +150)
  • Axis 3: 167.5 (-10 a +157.5)
  • Axis 4: 400 (-200 to +200)
  • Axis 5: 240 (-120 to +120)
  • Axis 6: 720 (-360 to +360)

Applications

Loading and unloading of parts , Handling of parts , Measurement , Assembly of parts
