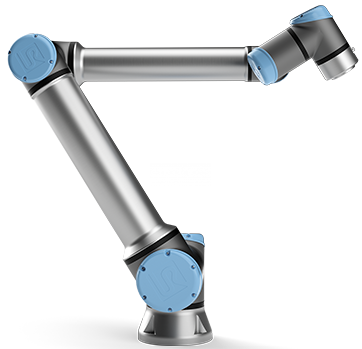

Other Robots UR10e

Awaiting more stock

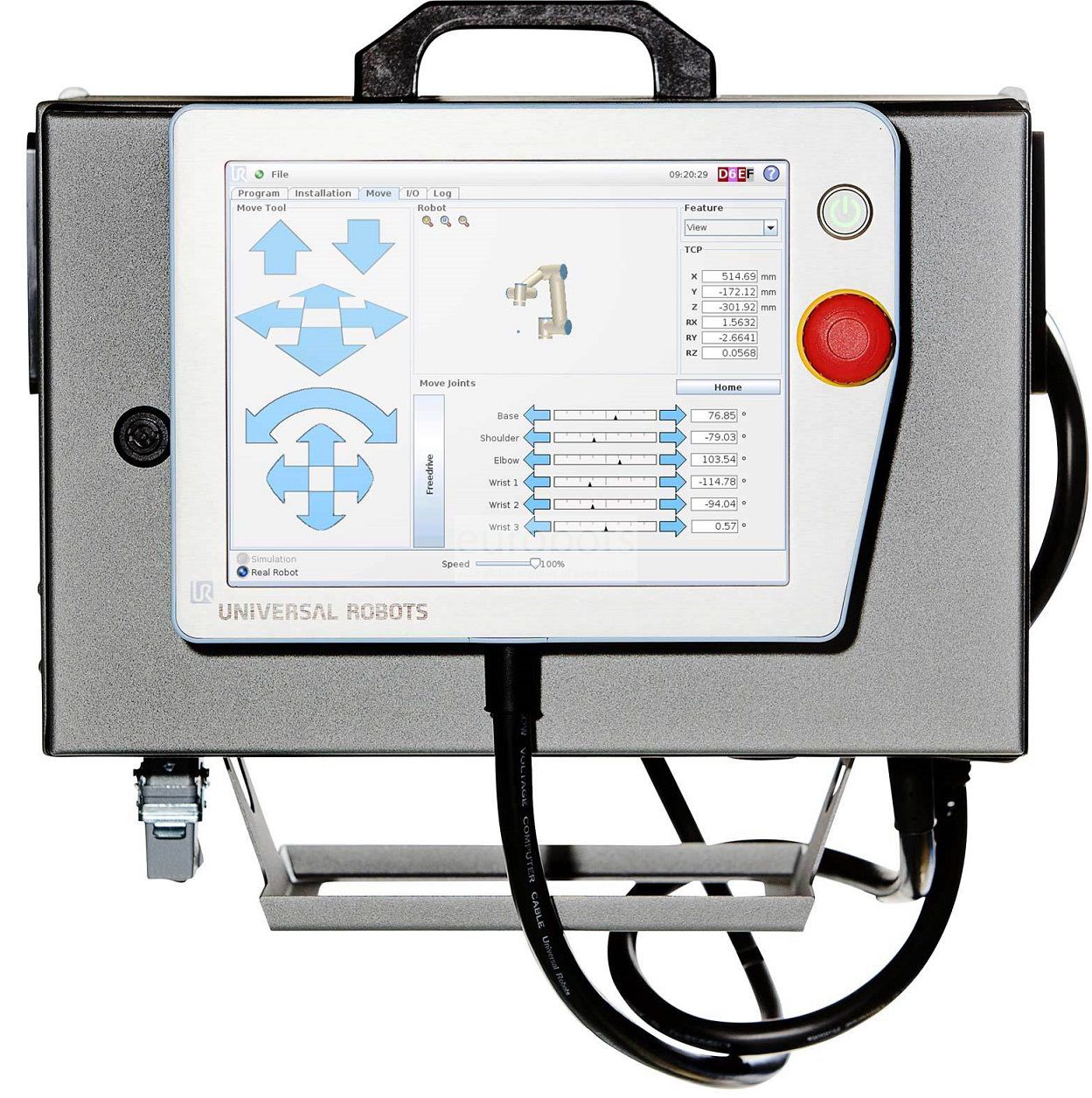

UR10e collaborative robot is a more updated version that contains a force torque sensor, optimum HMI with touch screen, improved navigation and programming. Enabled to work together with workers providing greater flexibility.

The e series of Universal Robots is designed to be integrated into the production line and optimize the performance and quality of the product or service, backed by an intuitive and versatile programming apt to ascend with your company. It is easy to install and configure in any productive process due to its light structure, space saving and intuitive interface. One of the great advantages of this robot is the rapid return on investment for both small and large companies.

Robot general specifications

  • Maximum Load of Robot:10 Kg
  • Maximum Reach: 1300 mm
  • Repeatability: +/- 0.05 mm
  • Controller:

Robot Motion Speed

  • Base:        ± 120°/s
  • Shoulder: ± 120°/s
  • Elbow:     ± 180°/s
  • Wrist 1:    ± 180°/s
  • Wrist 2:    ± 180°/s
  • Wrist 3:    ± 180°/s

Working range

  • Base:       ± 360°
  • Shoulder: ± 360°
  • Elbow:     ± 360°
  • Wrist 1:    ± 360°
  • Wrist 2:    ± 360°
  • Wrist 3:    ± 360°

Applications

  • Dispensing
  • Injection Molding
  • Machine Tending
  • Material Handling
  • Packaging
  • Pick and Place
  • Assembly
  • Bonding / Sealing
  • Cutting
  • Polishing
  • Arc Welding

Applications

Arc welding , Palletising , Handling of parts , Polishing , Measurement , Assembly of parts , Glueing - Adhesive bonding

Pictures

Diagrams
