Fanuc Arcmate 100iB arc welding robotic system - 8 axis

Awaiting more stock

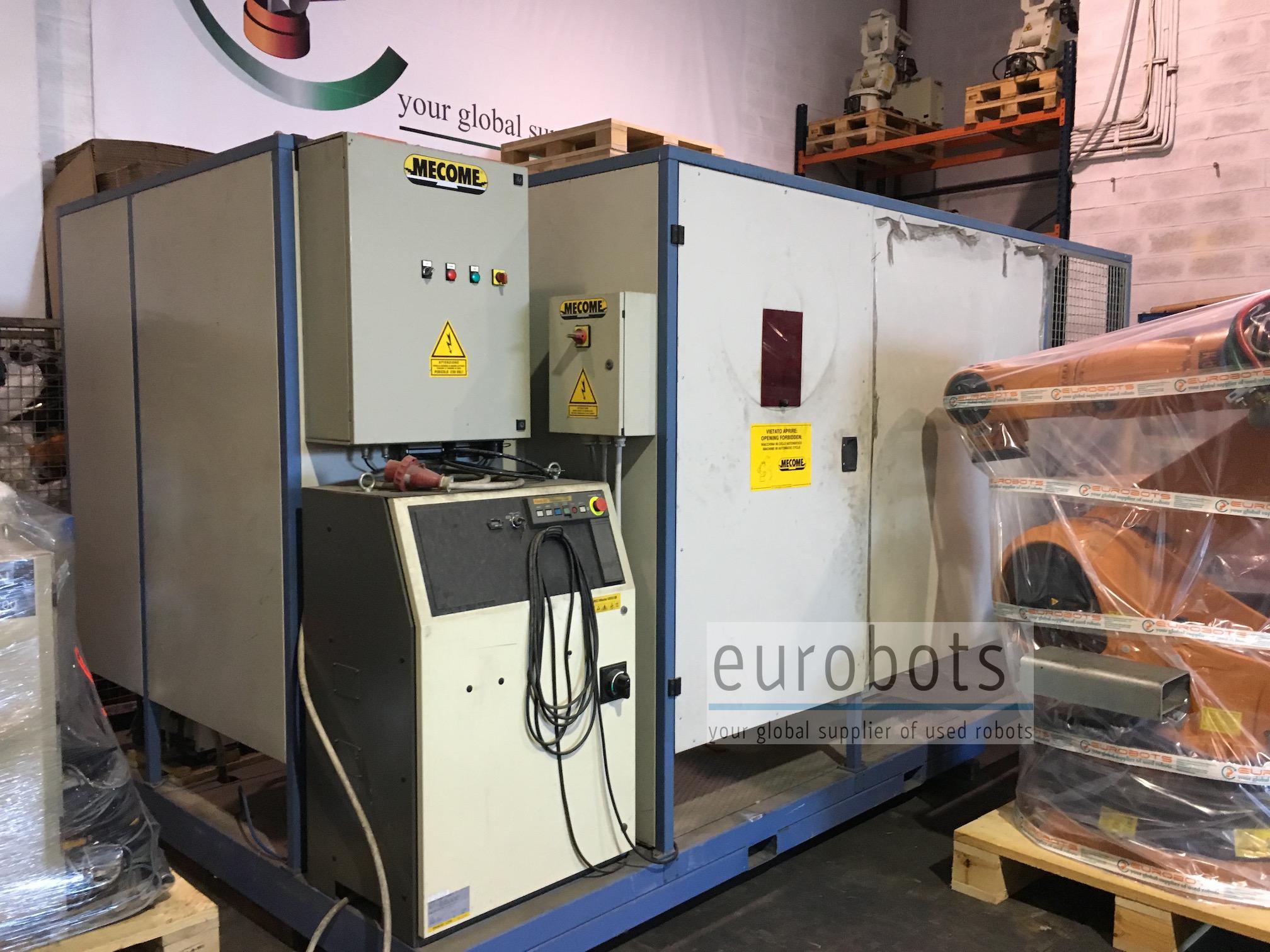

Year 2006. MIG/MAG 8 axis arc welding robotic system consisting of:

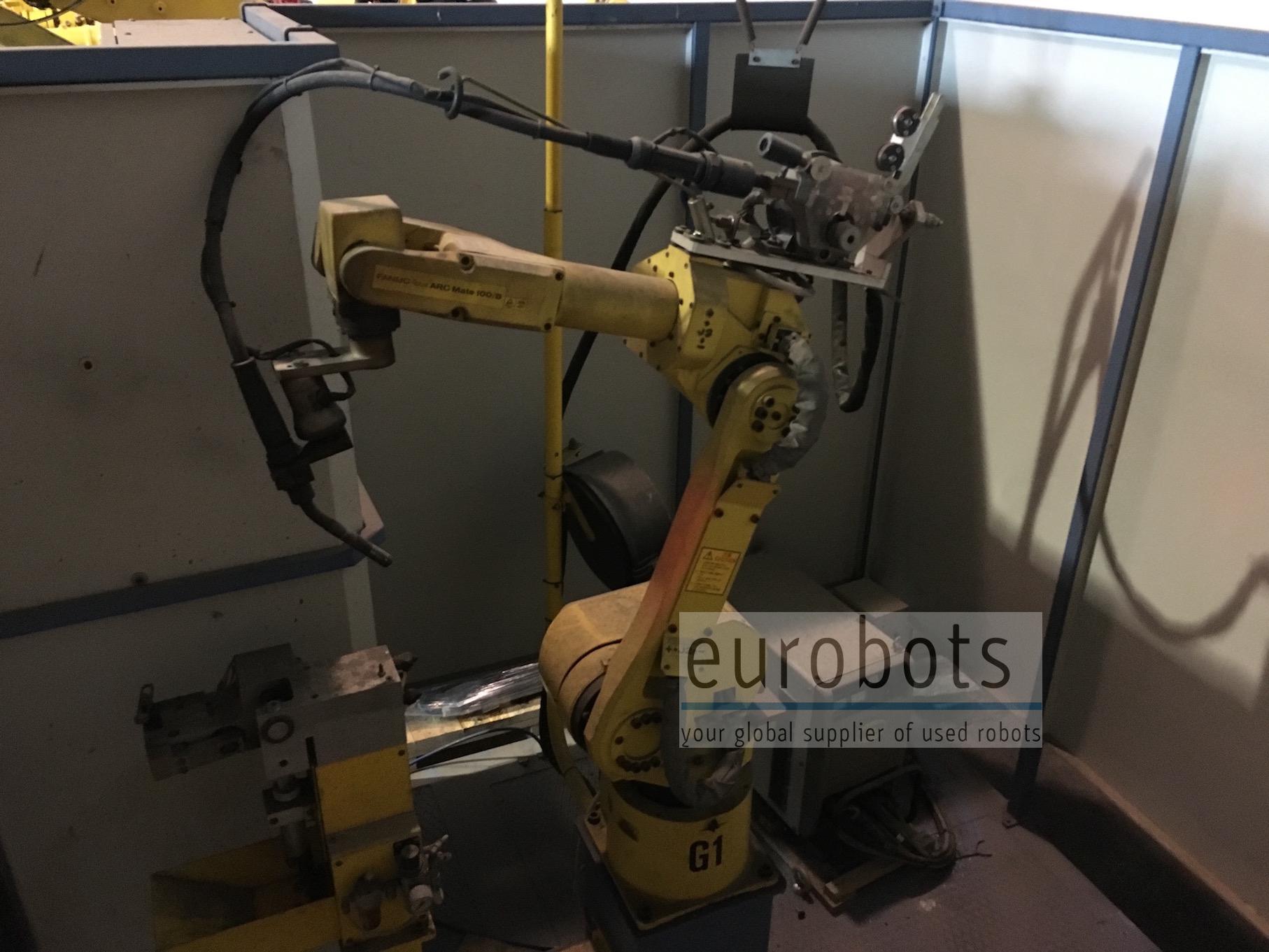

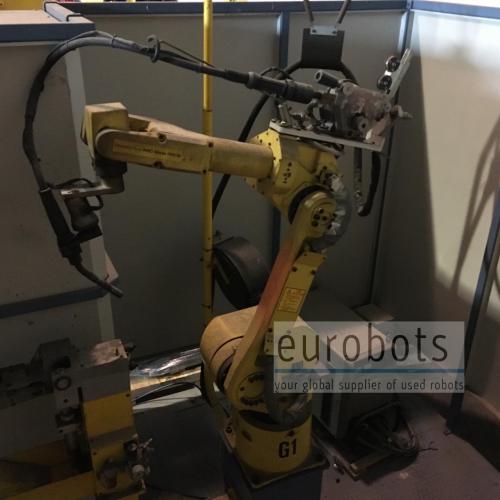

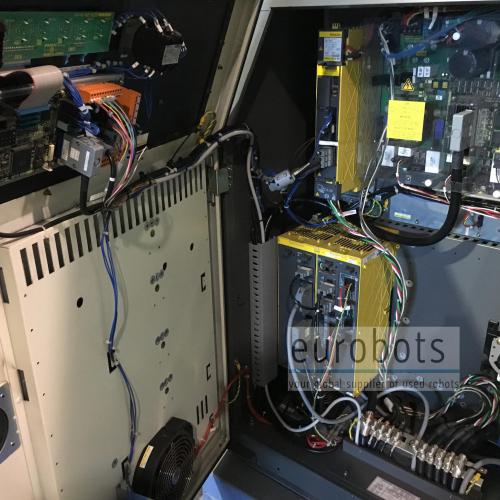

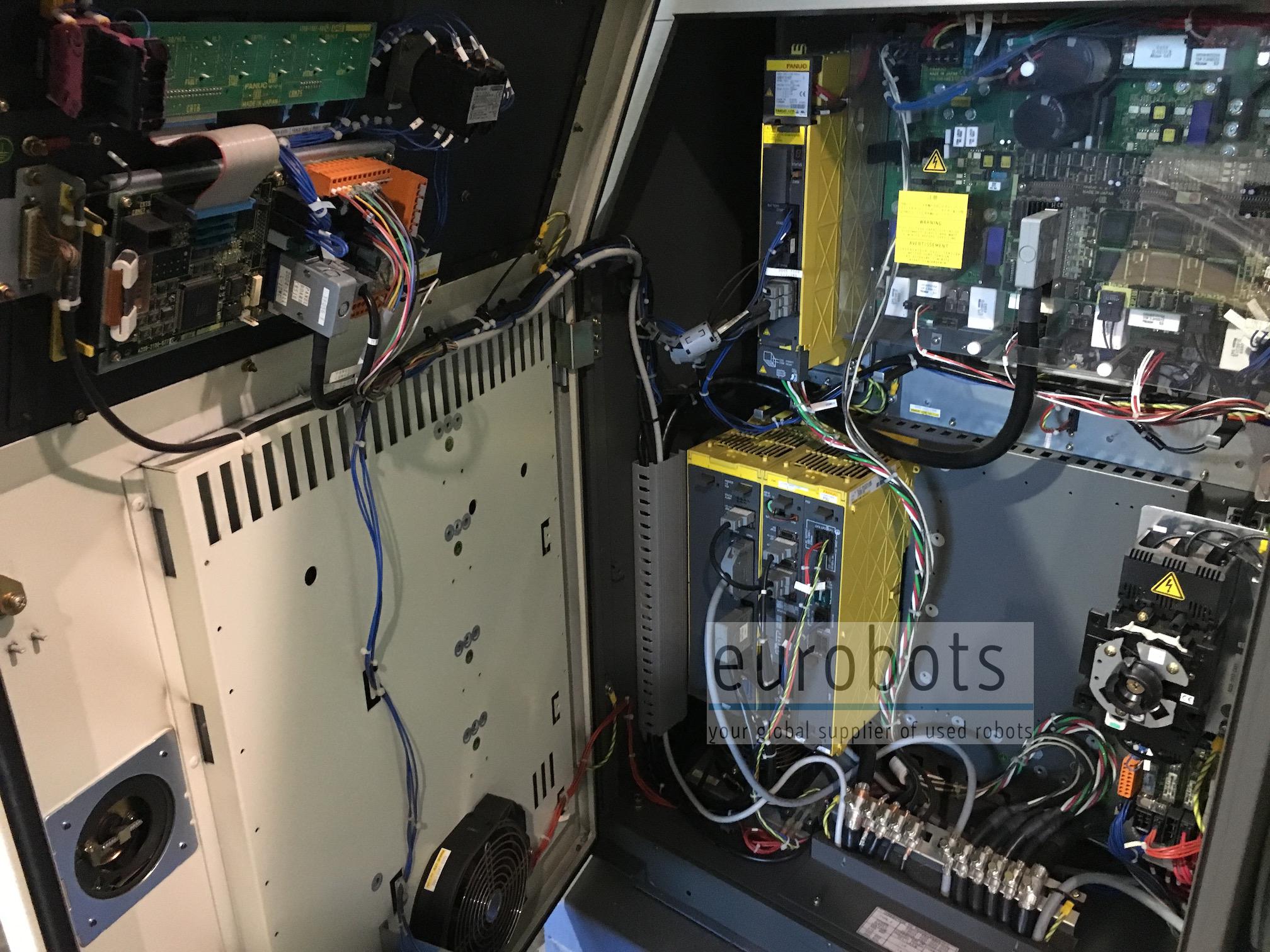

- 1 x Fanuc arcmate 100iB six axis industrial robot, 1373 mm horizontal arm reach, 6 kg payload featuring an accuracy in repeatibility of 0.08 mm and equipped with the Rj3iB controller and integrated arc welding software

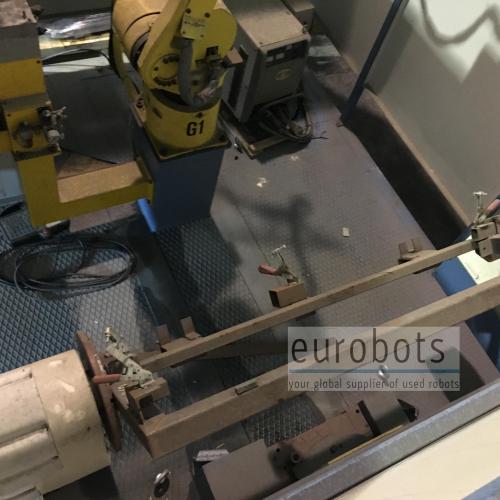

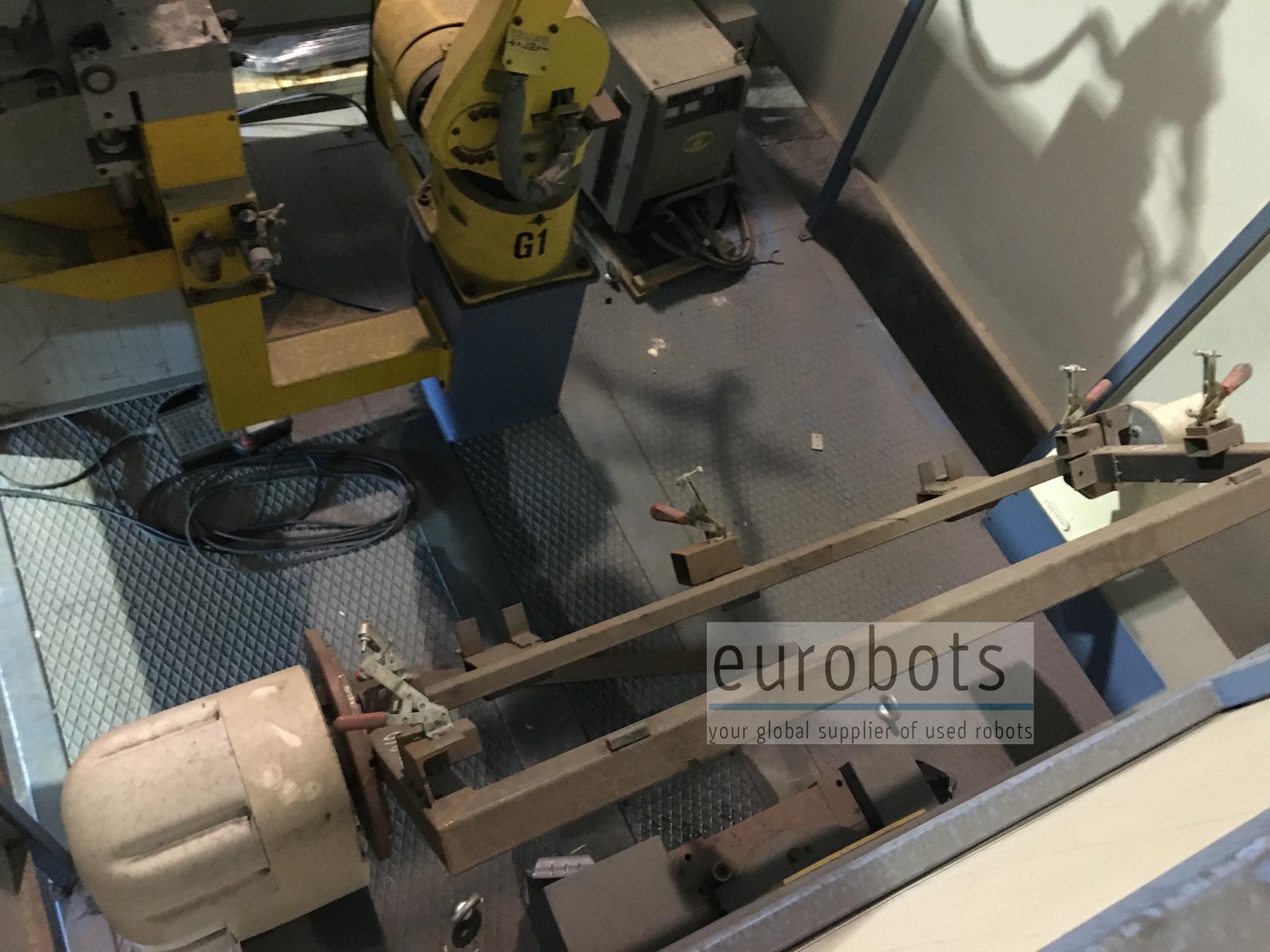

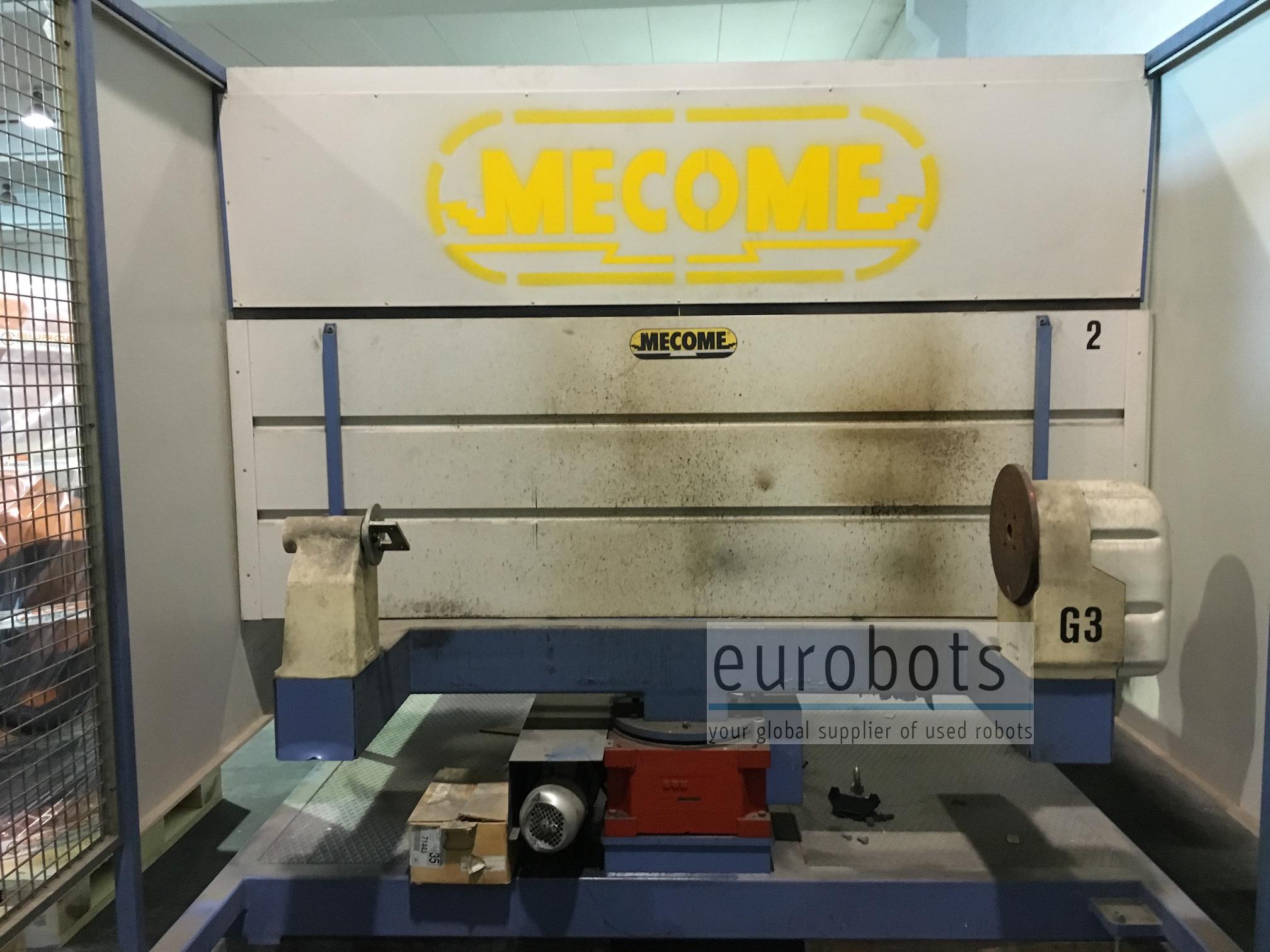

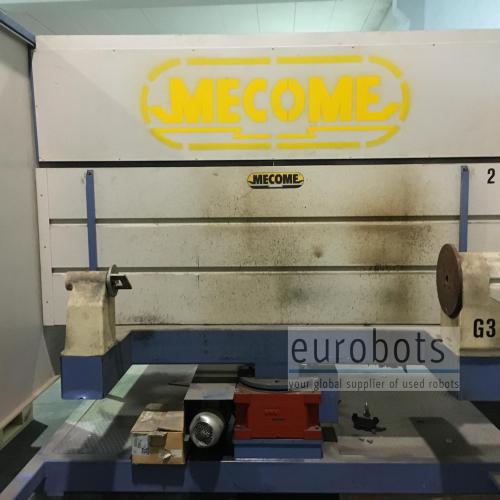

- 1 x double station positioner which makes for the robot welding working station and simultaneously a second station for the operator who safely loads and unloads parts. 180 degrees central turn, 2 servocontrolled rotary positioners (one for each station) controlled by the Rj3iB controller, 1400 mm between head ans tailstock with a loading capacity of 500 kg

- 1 x MIG/MAG 350 Ampere synergic power source, liquid cooled, with robot welding torch and anticollision

- 1 x torch cleaning station

- 1 x safety light barriers


Applications

Arc welding
