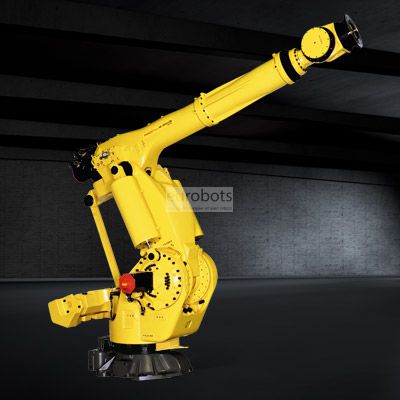

Fanuc M-900iB/400L

Awaiting more stock
Fanuc M-900 series designed for the handling of heavy loads, with a highly firm structure, the wrist motors are installed on the shoulder for greater protection in operations. high load capacity between 150 and 700 kg and an approximate arm reach of 3.7 m. He specializes in a wide range of applications of handling and force such as heavy workpieces, fast palletizing and precise drilling for heavy work. Providing great versatility, maximum savings in the workspace and faster cycle times. Variety of mounting options for greater flexibility.
M-900iB/400L Robust and robust arm design industrial robot with 6 axes and extra long reach provide greater flexibility. Specialist in handling heavy loads of 400 kg thanks to its stable installation on the ground and lifting capacity, additionally his wrist and arm have a degree of protection IP67.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 400 kg
Number of axis: 6
Maximum horizontal reach: 3704 mm
Repeatability: ± 0.1 mm
Controller: R30iB

Motion range (°)

Axis J1: 360°
Axis J2: 154°
Axis J3: 160°
Axis J4: 720°
Axis J5: 244°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 80°/s
Axis J2: 80°/s
Axis J3: 80°/s
Axis J4: 100°/s
Axis J5: 100°/s
Axis J6: 160°/s

Robot applications

Parts handling
Parts transfer
Assembly
Palletising

Applications

Palletising , Loading and unloading of parts , Handling of parts , Assembly of parts
