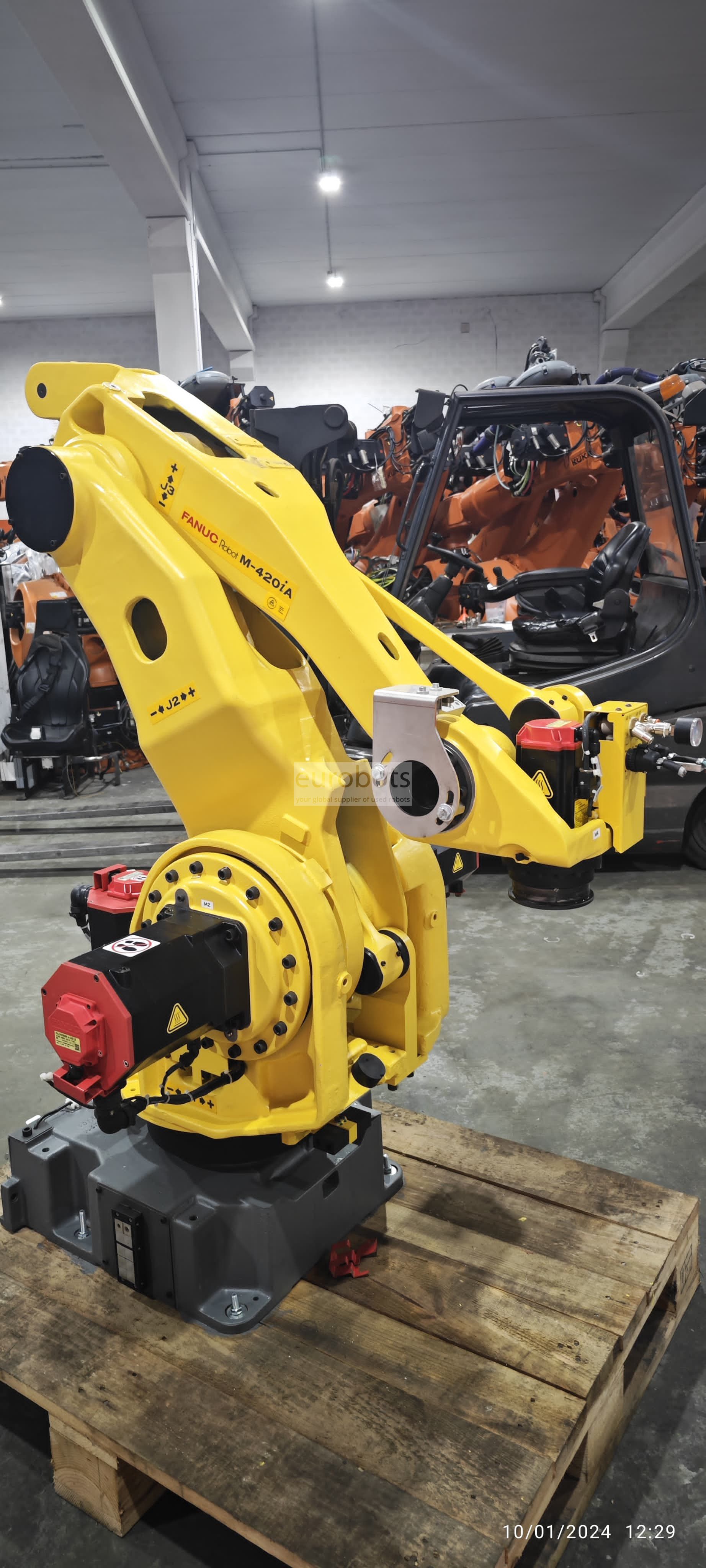

Fanuc M-420iA/40 Very Fast!

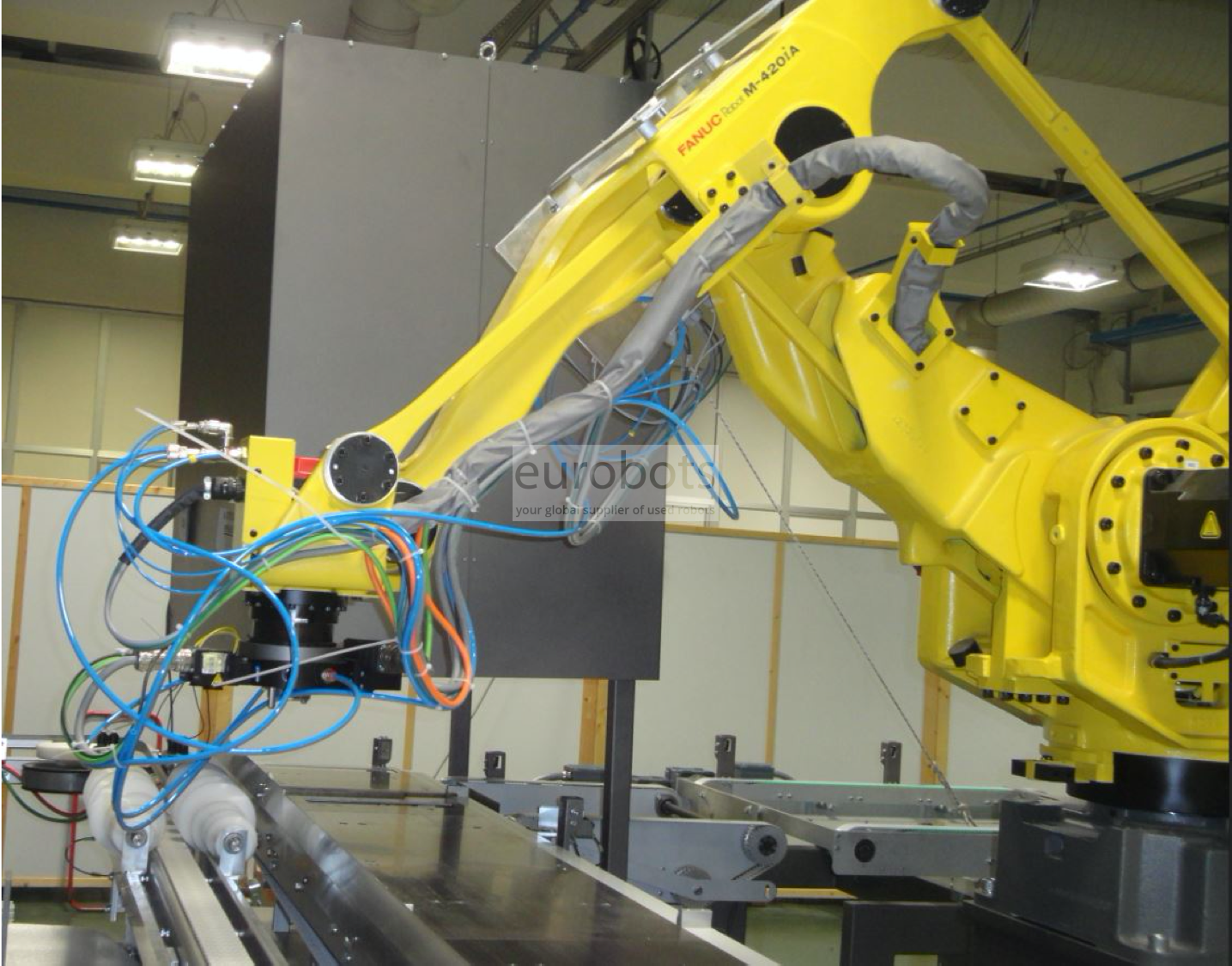

The FANUC M-420iA industrial robot is designed for a variety of high-speed manufacturing applications including packaging, palletizing, material handling, machine load/unload, and parts transfer. With its 4 axes of motion and a 40kg payload, the M420iA R30iB is an excellent palletizing robotics system, and moves with speed and accuracy. The four-axis dexterity of the M-420iA allows access to multiples packaging lines with one unit.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 40 kg
Number of axis: 4
Maximum horizontal reach: 1855 mm
Repeatability: ± 0.2 mm
Controller: R30iB Plus

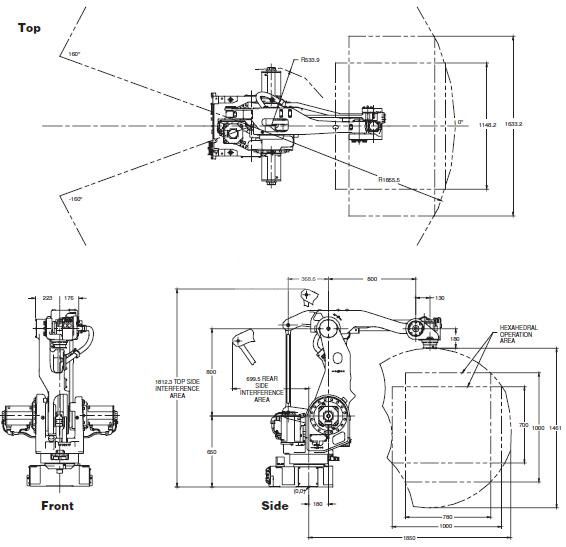

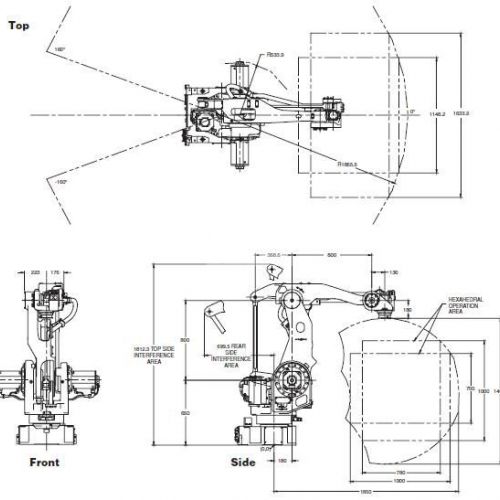

Motion range (°)
Axis J1: 320°
Axis J2: 115°
Axis J3: 100°
Axis J4: 540°
Maximum Load of Robot: 40 kg
Number of axis: 4
Maximum horizontal reach: 1855 mm
Repeatability: ± 0.2 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 320°
Axis J2: 115°
Axis J3: 100°
Axis J4: 540°
Maximum speed (°/s)
Axis J1: 180°/s
Axis J2: 200°/s
Axis J3: 200°/s
Axis J4: 350°/s
Robot applications
Palletizing
