Fanuc R-2000iC/100P

Awaiting more stock
Fanuc R-2000 series designed material handling applications and spot welding, with load capacity between 100 and 270 kg, extended reach, while keeping small footprints to ensure they fit in any plant area.

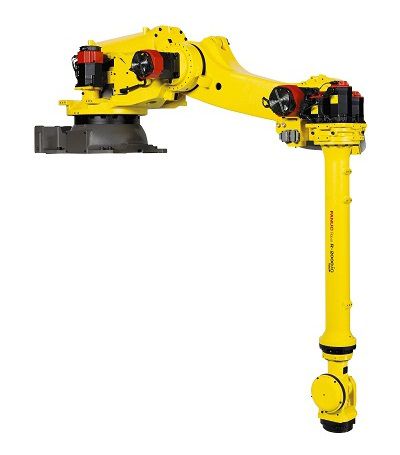

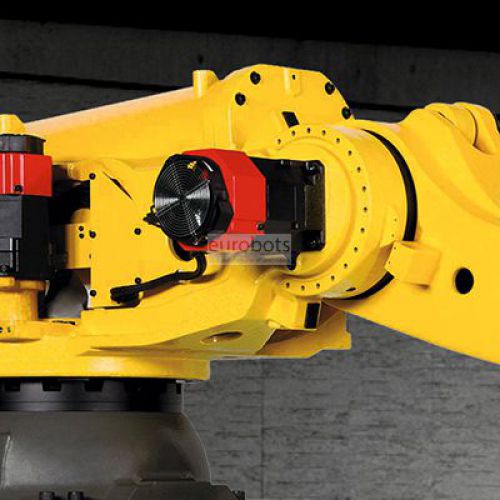

R-2000iC / 100P industrial robot mounted on a pedestal, ideal for press-to-press transfer applications in the automotive industries. Rack mounting configuration that allows matrix change, maintenance of the press and optimal programming of the robot's path. Maximum cooling capacity of the motor fan J1 / J2 / J3 to comply with the continuous duty cycles; providing speed and versatility, minimizing cycle times and ensuring maximum productivity.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 100 kg
Number of axis: 6
Maximum horizontal reach: 3540 mm
Repeatability: ± 0.05 mm
Controller: R-30iB Plus

Motion range (°)

Axis J1: 370°
Axis J2: 200°
Axis J3: 375°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 120°/s
Axis J2: 100°/s
Axis J3: 115°/s
Axis J4: 140°/s
Axis J5: 140°/s
Axis J6: 210°/s

Robot applications

Press-to-press transfer
Material Handling

Applications

Press tending , Handling of parts
