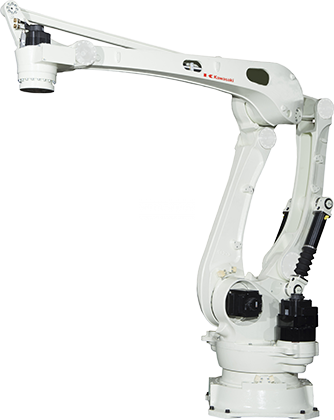

Kawasaki CP300L

Awaiting more stock
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
The CP300L palletizing robot is characterized by manipulating a load capacity of 300 kg with greater efficiency, providing flexibility in the automation of processes in the distribution area and end of line. Equipped with the E03 controller, for use in palletizing robots, it has an electricity regeneration function that reduces energy consumption.
Main specifications

Maximum Load of Robot: 300 kg
Number of axis: 4
Repeatability: ± 0.5 mm
Controller: E03

Motion range (°)

Axis JT1: ± 160°
Axis JT2: +95 - -46
Axis JT3: +15 - -110
Axis JT4: ± 360 °

Maximum speed (°/s)

Axis JT1: 115°/s
Axis JT2: 100°/s
Axis JT3: 100°/s
Axis JT4: 250°/s
 in case of 250 kg payload and less

Power requirements:12 kVA (depends on the payload and motion patterns)

Robot applications

Palletizing

Applications

Palletising , Handling of parts
