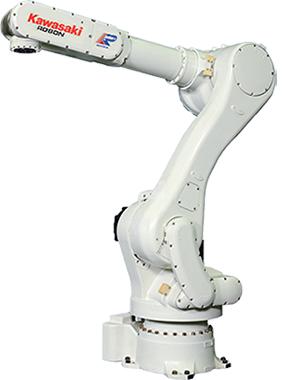

Kawasaki RD080N

Awaiting more stock
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
Robot designed for palletizing RD080N compact structure and high speed, 5 axes that can operate loads of up to 80 kg and create pallet stacks more than seven feet in height offers flexibility of installation in floor or ceiling.
Main specifications

Maximum Load of Robot: 80 kg
Number of axis: 5
Horizontal Reach: 2,100 mm
Vertical Reach: 3,311 mm
Repeatability: ±0.07 mm
Controller: E32, E42, E22

Motion range (°)

Axis JT1: ± 180°
Axis JT2: +140/–105
Axis JT3: +40/–205
Axis JT4: ±360°
Axis JT5: ±10°/s (operating angle of the JT5 is ±10 degrees perpendicular to the ground.)

Maximum speed (°/s)

Axis JT1: 180°/s
Axis JT2: 180°/s
Axis JT3: 175°/s
Axis JT4: 360°/s
Axis JT5: -

Robot applications

Palletizing
Depalletizing
Material handling
Case packing

Applications

Palletising , Handling of parts
