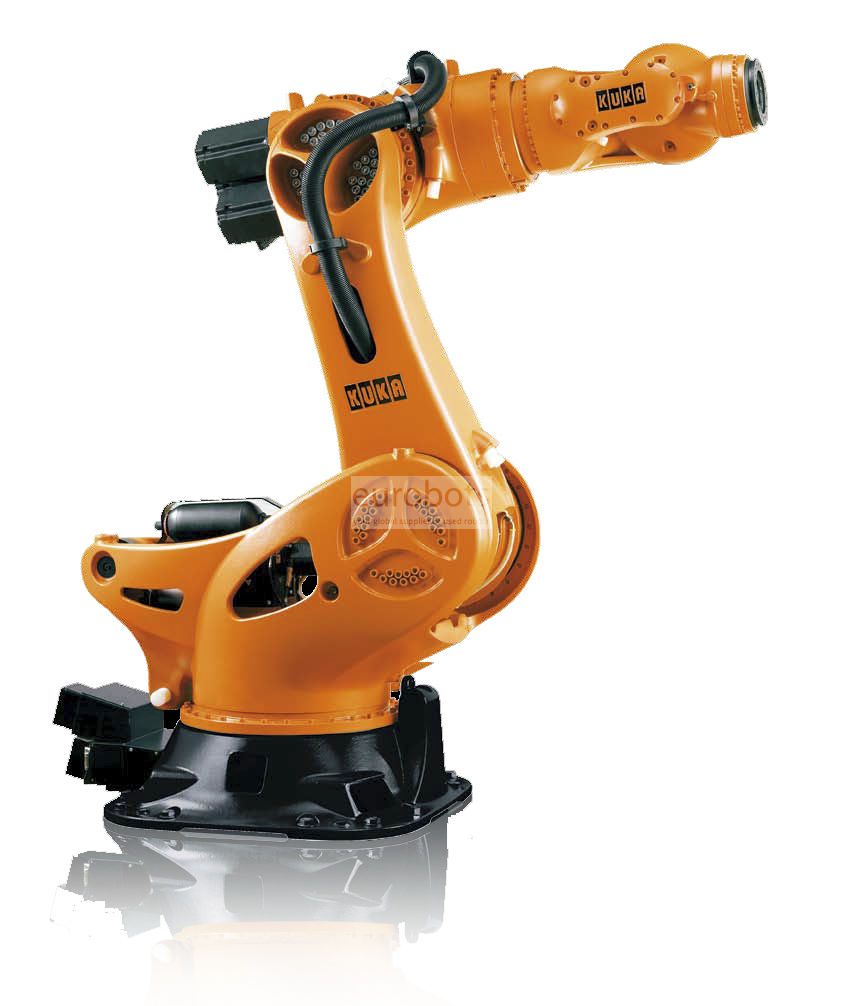

KUKA KR 1000 L750 Titan F

Awaiting more stock

KR 1000 L750 titan F designed with a kinematic structure of 6 axles of high load 750 kg and reach of 3601mm.Equipado with a central doll of three axes has a flange of connection for the assembly of tools or tools to manipulate very heavy pieces. In the Foundry version of the standard model, a boosted arm with compressed air must be installed from a precision regulator fed by a compressed air line. Reliable and versatile.

Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability
Main specifications

Maximum Load of Robot: 750 Kg
Number of axis: 6
Maximum horizontal reach: 3601 mm
Repeatability: ±0,01 mm
Controller: KR C4

Range of motion

Axis 1: +/-150°
Axis 2: +17.5° to -130°
Axis 3: +145° to -110°
Axis 4: +/-350°
Axis 5: +/-118°
Axis 6: +/-350°

Speed with rated payload

Axis 1: 58°/s
Axis 2: 50°/s
Axis 3: 50°/s
Axis 4: 60°/s
Axis 5: 60°/s
Axis 6: 72°/s

Robot Applications

Machine tending
Machine handling
Welding
Assembly
Cutting

Applications

Loading and unloading of parts , Machining , Handling of parts , Assembly of parts , Laser cutting
