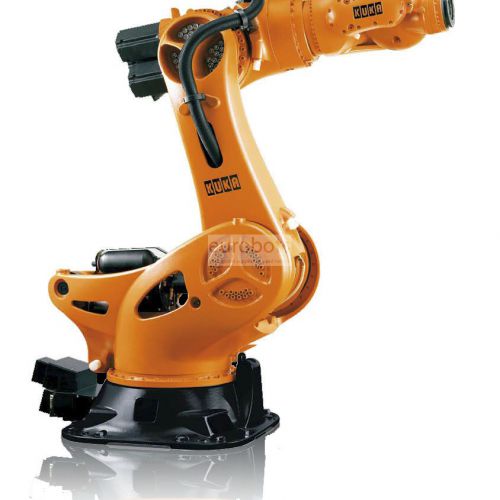

KUKA KR 1000 titan F

Awaiting more stock

KR 1000 titan F robot ideal for service needs of heavy load of 6 axles of load 1000 kg and reach of 3202 mm. Increases productivity accurately and efficiently, wide working area capacity, easy integration, long maintenance intervals, reduces investment costs. Floor mounting.

Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability
Main specifications

Maximum Load of Robot: 1000 Kg
Number of axis: 6
Maximum horizontal reach: 3202 mm
Repeatability: ±0,01 mm
Controller: KR C4

Range of motion, sofware- limited

Axis 1: +/-150°
Axis 2: +17.5° to -130°
Axis 3: +145° to -110°
Axis 4: +/-350°
Axis 5: +/-118°
Axis 6: +/-350°

Speed with rated payload

Axis 1: 58°/s
Axis 2: 50°/s
Axis 3: 50°/s
Axis 4: 60°/s
Axis 5: 60°/s
Axis 6: 72°/s

Robot Applications

Machine handling
Assembly, disassembly
palletizing
Machining
Machine tending
Material Handling
Assembly
Order Picking
Packaging
Spot Welding

Applications

Spotwelding , Palletising , Loading and unloading of parts , Machining , Handling of parts , Milling cell

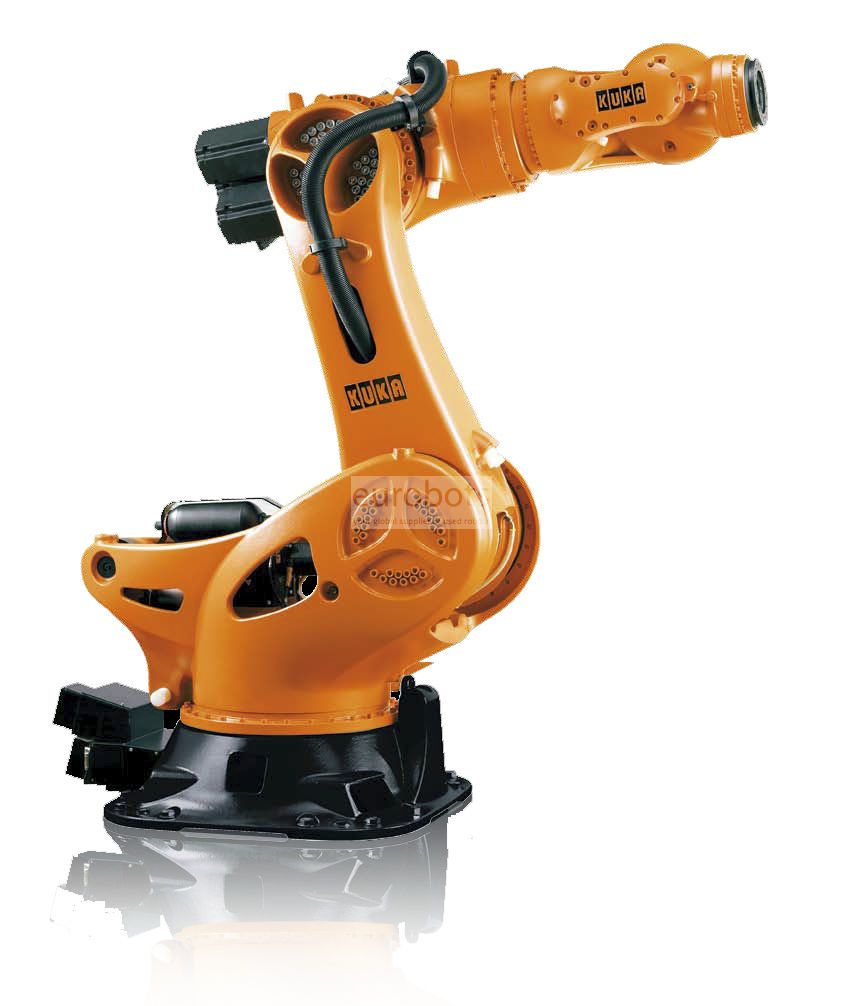

Pictures

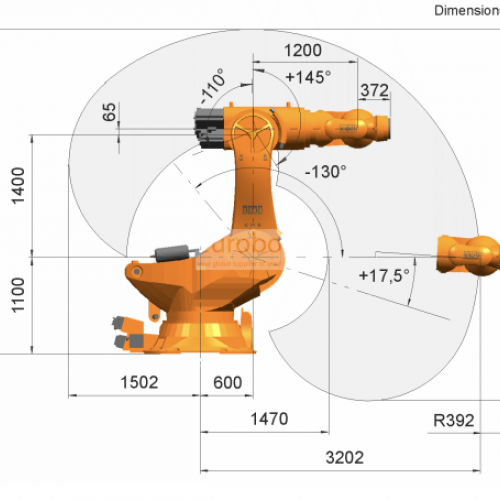

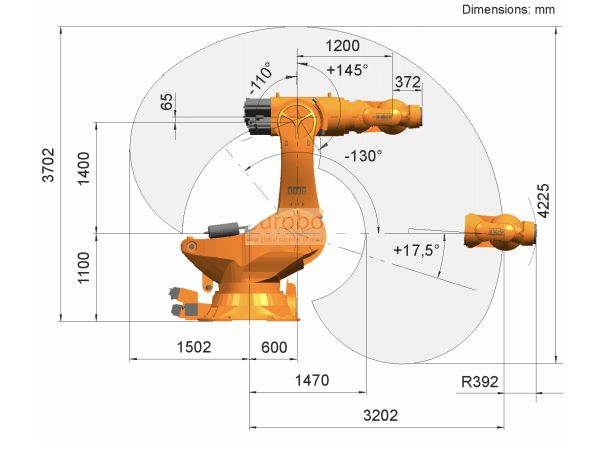

Diagrams
