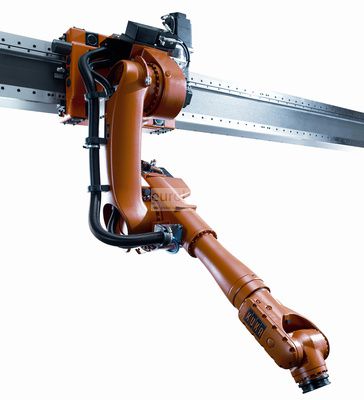

KUKA KR 30-2 JET

Awaiting more stock

KR 30-2 JET is a medium-load robot that has a modular structure that adapts flexibly to each task. It consists of a linear axis, an articulated arm robot and the JET TRACK axis module. By including new technologies the robot head can be positioned optimally, either in the raised or lateral position on the wall leads us to have an optimal concatenation of several machines, achieve high speeds and accelerations to provide greater accuracy in repetition.

Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability
Main specifications

Maximum Load of Robot: 30 Kg
Number of axis: 6
Maximum horizontal reach: 1682,5 mm
Repeatability: ±0,07mm
Controller: KR C4

Motion range

Axis 1: 1.5 to 30 m
Axis 2: +0°/-180°
Axis 3: +158°/-120°
Axis 4: +/-350°
Axis 5: +/-119°
Axis 6: +/-350°

Speed with rated payload

Axis 1: 3.1 m/s
Axis 2: 126°/s
Axis 3: 166°/s
Axis 4: 260°/s
Axis 5: 245°/s
Axis 6: 322°/s

Robot Applications

Palletizing
Handling
Packaging and order picking
Application of glue and sealant
Arc welding
Handling operations
Laser cutting
Fastening
Inserting, mounting
Waterjet cutting
Machining
Laser welding
Forging plants

Applications

Arc welding , Palletising , Machining , Handling of parts , Measurement , Laser cutting , Glueing - Adhesive bonding
