KUKA KR 60 L45 HA-C

Awaiting more stock

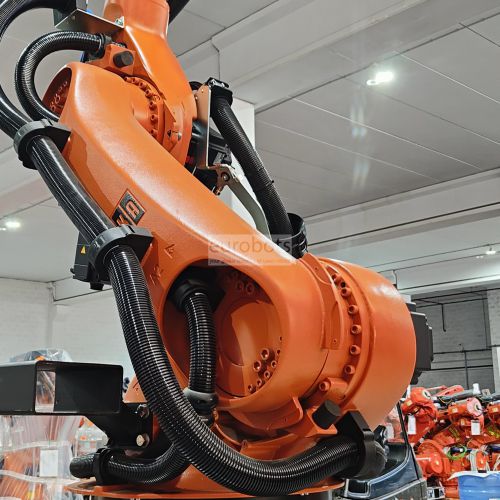

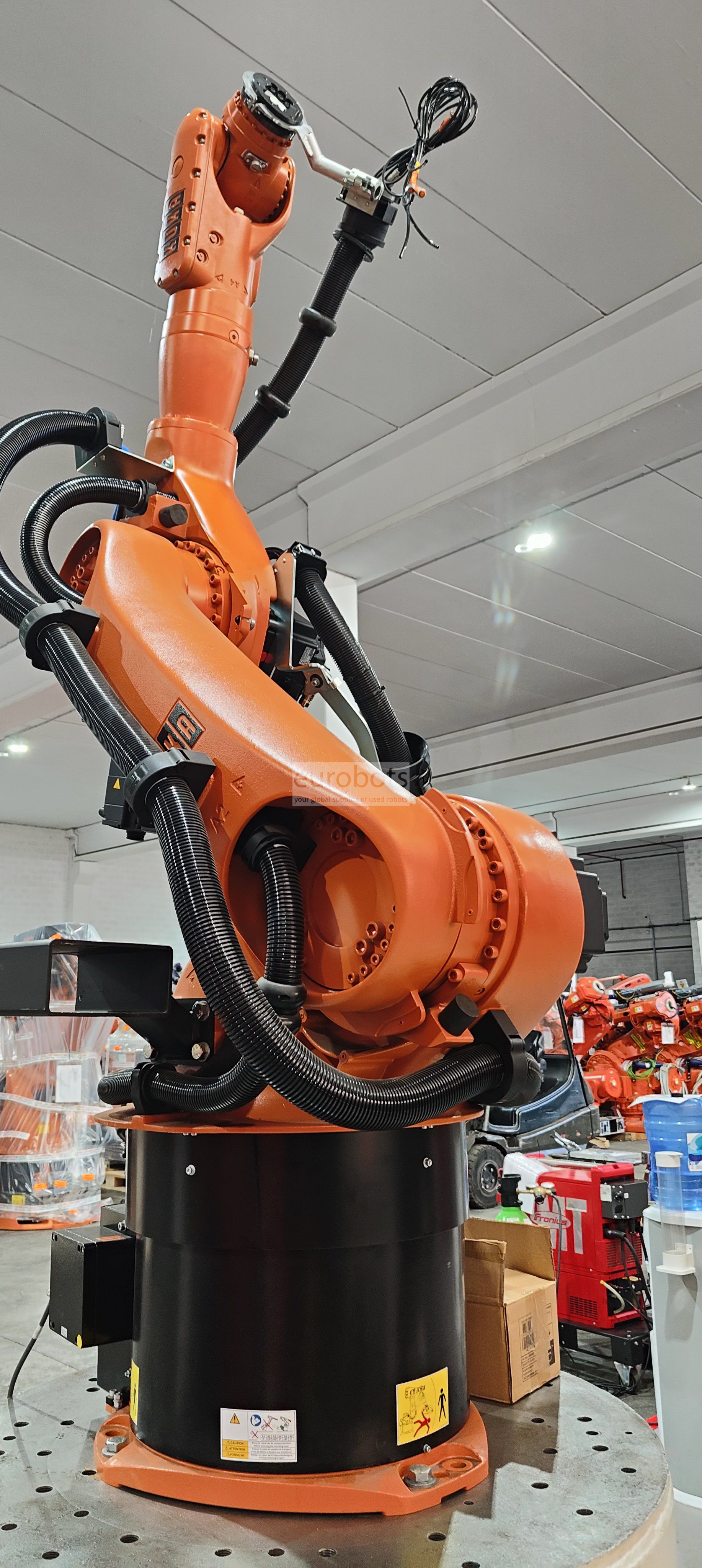

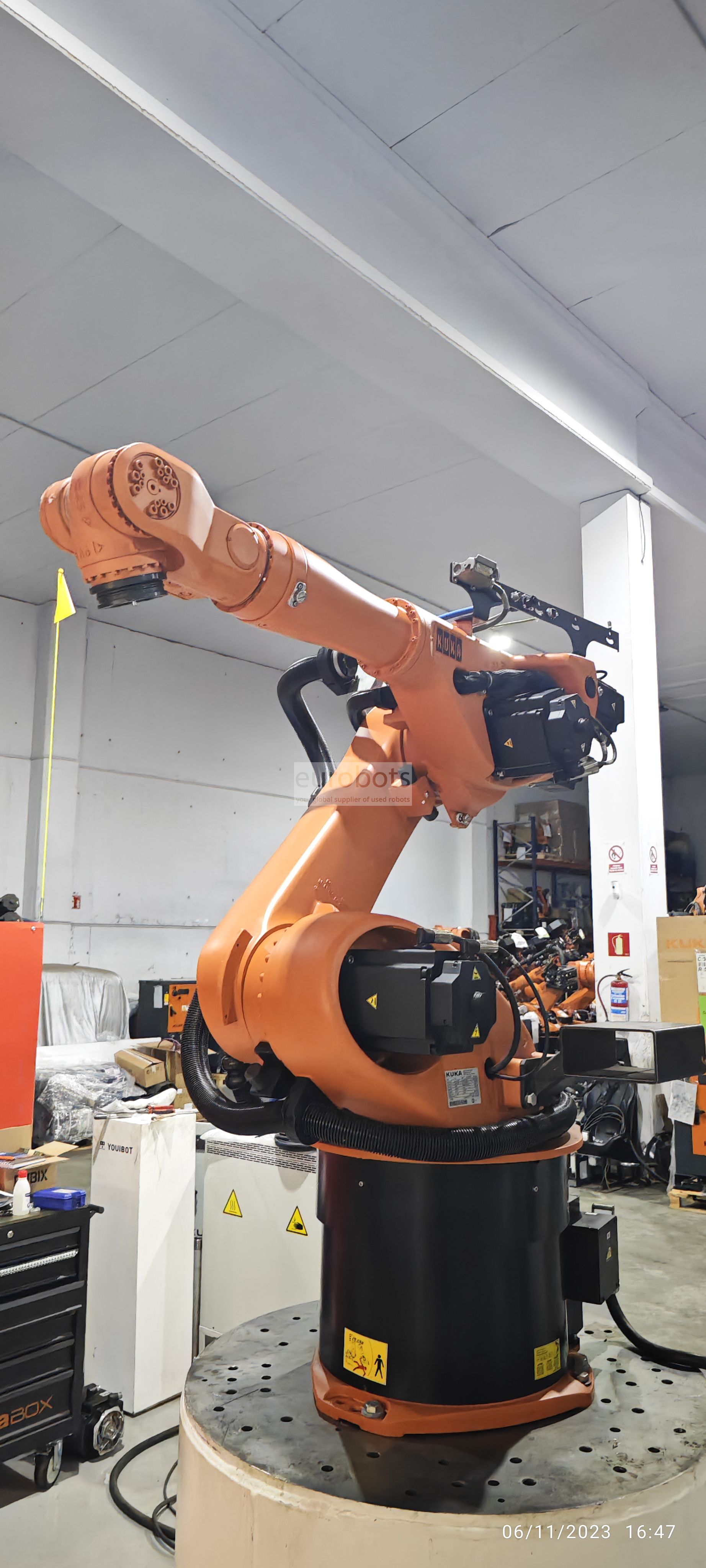

KR 60 L45 HA-C robot 6 axles of average load of 45kg and reach of 2230 mm
Of the robot series Kuka KR 60 characterized by its versatility and flexibility for different applications, can be programmed with precision off-line, highly reliable for process planning, low maintenance requirements, optimized with motors and gearboxes that guarantee high Performance in cycle times and accuracy. Mounting positions Ceiling.

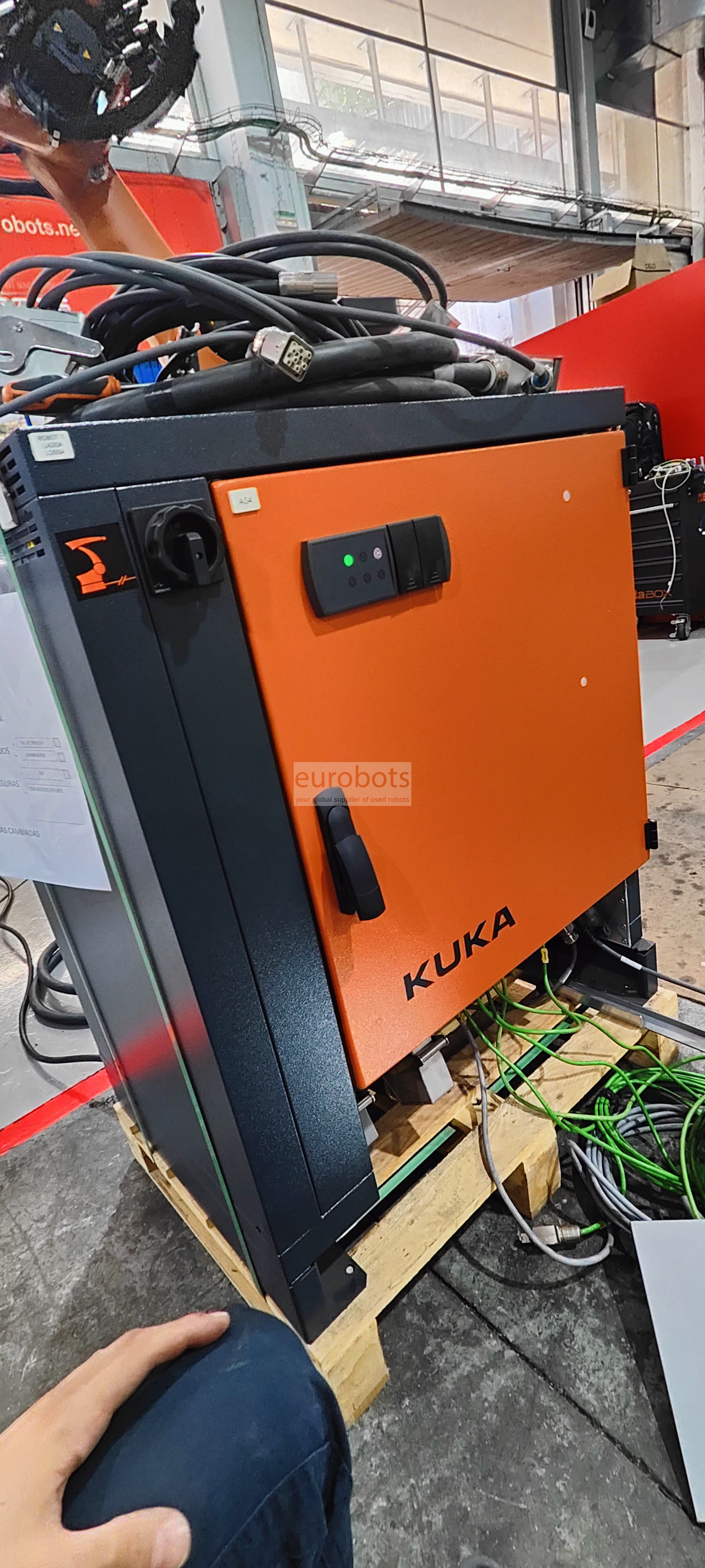

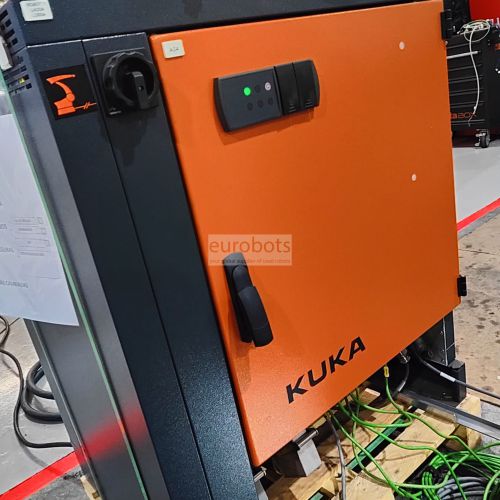

Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

  • Simple to plan, operate and maintain
  • Continuation of service-proven PC-based control technologies
  • Quick and easy operation thanks to continued use of familiar operator control concepts
  • Expansion of the set of commands for more user-friendly path programming
  • High compatibility with previous programs for the KR C2
  • Safety, Robot, Logic, Motion and ProcessControl in a single control system
  • Real-time communication between the dedicated control processes
  • Central basic services for maximum data consistency
  • Seamless integration of safety technology for entirely new fields of application
  • Integrated software firewall for greater network security
  • Innovative software functions for optimized energy efficiency
  • Future-compatible technology platform without proprietary hardware
  • Multi-core processor support for scalable performance
  • Fast communication via Gigabit Ethernet
  • Integrated memory cards for important system data
  • Designed for 400 – 480 VAC
  • New fan concept for optimized energy efficiency
  • Maintenance-free cooling without filter mats
  • Highest performance in the smallest possible space
  • Maximum availability
Main specifications

Maximum Load of Robot: 45 Kg
Number of axis: 6
Maximum horizontal reach: 2230 mm
Repeatability: ± 0,05 mm
Controller: KR C4

Range of motion, sofware- limited

Axis 1: ±185˚
Axis 2: +35˚ to -135˚
Axis 3: +158˚ to -120˚
Axis 4: ±350˚
Axis 5: ±119˚
Axis 6: ±350˚

Robot motion speed

Axis 1: 128˚/s
Axis 2: 102˚/s
Axis 3: 128˚/s
Axis 5: 260˚/s
Axis 4: 245˚/s
Axis 6: 322˚/s

Robot Applications

Machine handling
Palletizing,
Handling,
Packaging and order picking,
Welding,
Application of glue and sealant,
Láser cutting,
Machining,
Arc welding,
Láser welding.

Applications

Arc welding , Spotwelding , Palletising , Machining , Handling of parts , Measurement , Laser cutting , Laser welding Nd-Yag
