KUKA KR 6-2

Awaiting more stock

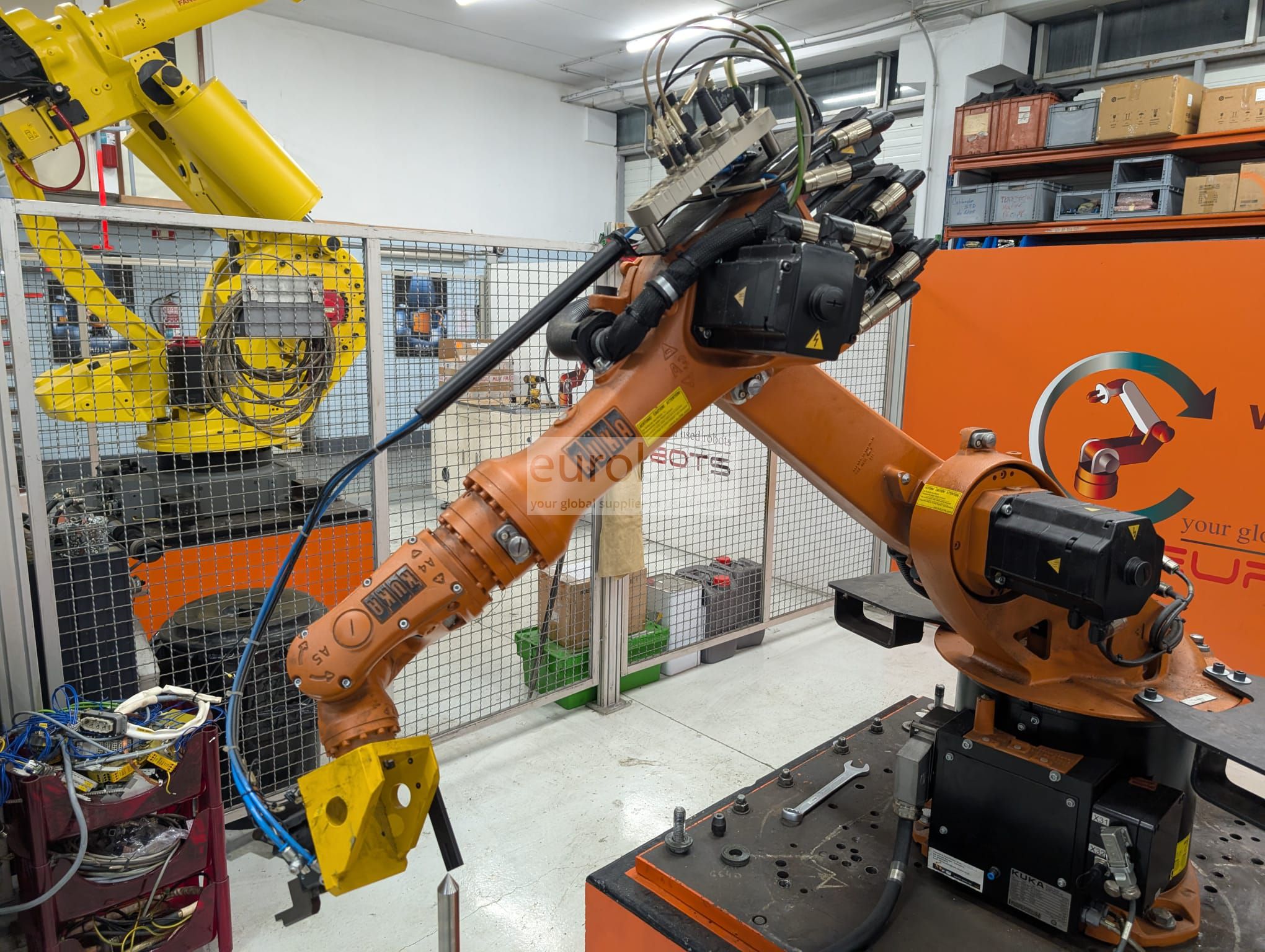

The KR 6 industrial robot has a low load aerodynamic design with a capacity of 6 kg and an arm reach of 1611 mm that offer excellent accessibility in small spaces and saving of space in the cells. Is characterized by flexibility and versatility since you have different specific variables that allow a flexible range of applications, thanks to its mounting options this robot demonstrates great profitability in production.

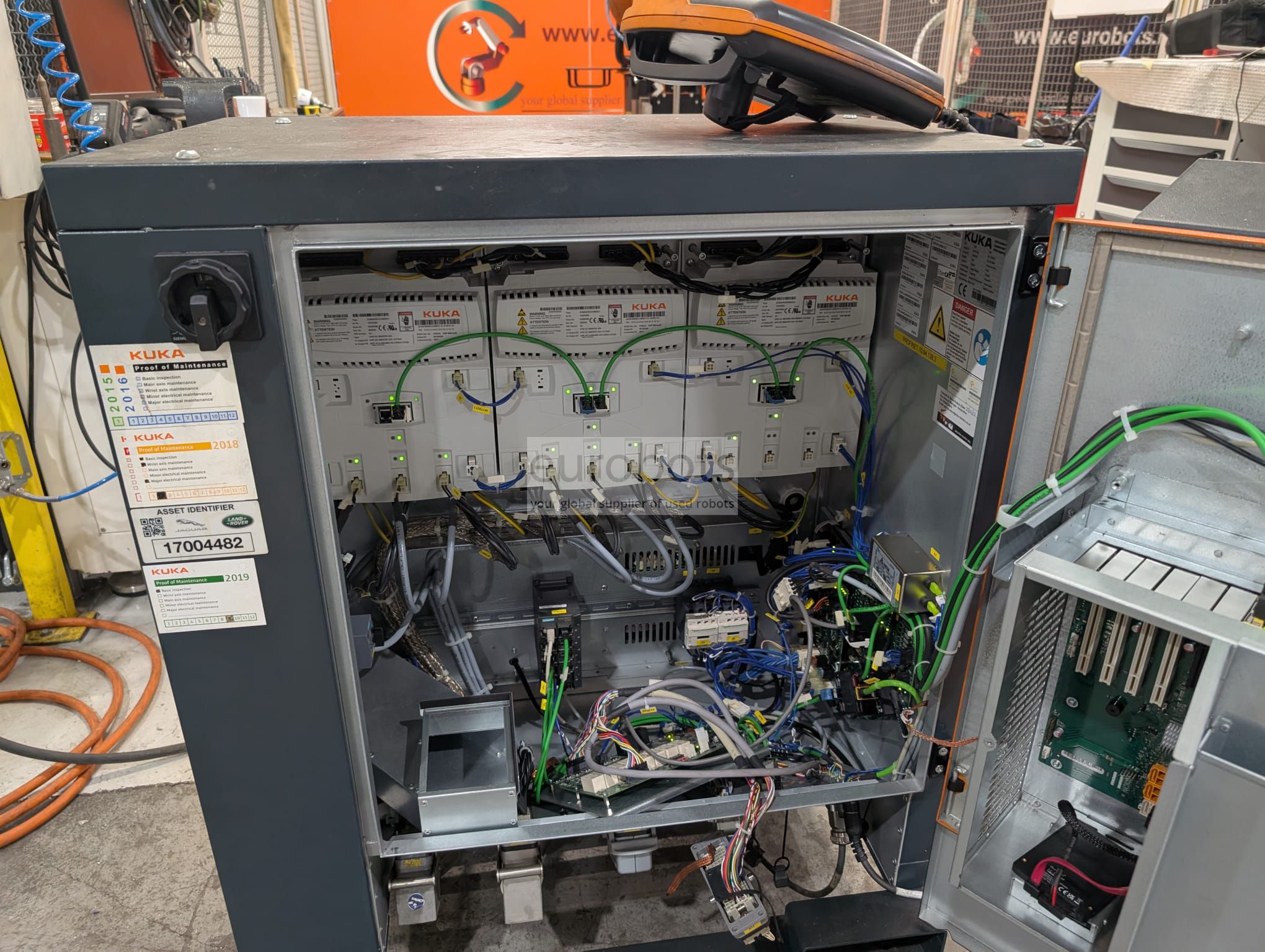

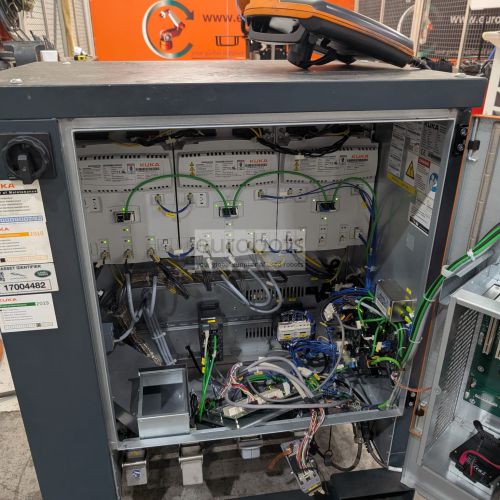

KR C4 - Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

- Simple to plan, operate and maintain
- Continuation of service-proven PC-based control technologies
- Quick and easy operation thanks to continued use of familiar operator control concepts
- Expansion of the set of commands for more user-friendly path programming
- High compatibility with previous programs for the KR C2
- Safety, Robot, Logic, Motion and ProcessControl in a single control system
- Real-time communication between the dedicated control processes
- Central basic services for maximum data consistency
- Seamless integration of safety technology for entirely new fields of application
- Integrated software firewall for greater network security
- Innovative software functions for optimized energy efficiency
- Future-compatible technology platform without proprietary hardware
- Multi-core processor support for scalable performance
- Fast communication via Gigabit Ethernet
- Integrated memory cards for important system data
- Designed for 400 – 480 VAC
- New fan concept for optimized energy efficiency
- Maintenance-free cooling without filter mats
- Highest performance in the smallest possible space
- Maximum availability





Main Features

VARIANTS KR 6-2 C KR 6-2 W KR 6-2 KR 6-3
Maximum Load of Robot:  6 kg 6 kg 6 kg 6 kg
Number of axis:  6 6 6 6
Maximum horizontal reach:  1611 mm 1611 mm 1611 mm 1611 mm
Repeatability:  ±0,05 mm ±0,05 mm ±0,05 mm ±0,05 mm
Controller: KR C4 KR C4 KR C4 KR C4
Mounting positions: Ceiling Wall Floor Floor

Motion range (°)

Axis 1: ±185°
Axis 2: +35°/-155°
Axis 3: +154°/-130°
Axis 4: ±350°
Axis 5: ±130°
Axis 6: ±350°

Maximum speed (°/s)

Axis 1: 156°/s
Axis 2: 156°/s
Axis 3: 156°/s
Axis 4: 343°/s
Axis 5: 362°/s
Axis 6: 659°/s

Robot applications

Measuring
Testing and inspection
Metal die-casting machines
Foundry works
Handling for other machines
Palletizing
Packaging and order picking
welding
Machining
Inserting, mounting
assembly/disassembly operations
Forging plants








Applications

Palletising , Loading and unloading of parts , Machining , Handling of parts , Measurement , Assembly of parts , Glueing - Adhesive bonding
